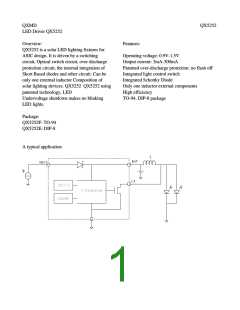

QXMD
QX5252
LED Driver QX5252
Overview:
Features:
QX5252 is a solar LED lighting fixtures for
ASIC design. It is driven by a switching
circuit, Optical switch circuit, over discharge
protection circuit, the internal integration of
Short Based diodes and other circuit. Can be
only one external inductor Composition of
solar lighting devices. QX5252 QX5252 using
patented technology, LED
Operating voltage: 0.9V-1.5V
Output current: 3mA-300mA
Patented over-discharge protection: no flash off
Integrated light control switch
Integrated Schottky Diode
Only one inductor external components
High efficiency
Undervoltage shutdown makes no blinking
LED lights.
TO-94, DIP-8 package
Package:
QX5252F: TO-94
QX5252E: DIP-8
A typical application
