DXW21HN5011B

型号：

DXW21HN5011B

品牌：

MURATA[ muRata ]

页数：

3 页

PDF大小：

199 K

下载PDF手册

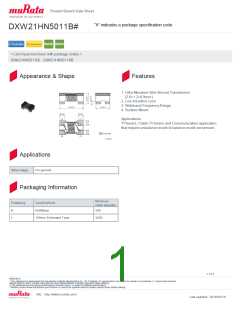

Product Search Data Sheet
“#” indicates a package specification code.
DXW21HN5011B#
< List of part numbers with package codes >
DXW21HN5011BL DXW21HN5011BB
Appearance & Shape
Features
1. Ultra Miniature Wire Wound Transformer
(2.0×1.2×0.9mm)
2. Low lnsertion Loss
3. Wideband Frequency Range
4. Surface Mount
Applications
TV tuners, Cable TV tuners and Communication application
that require unbalance mode to balance mode conversion.
Applications
Other Usage
For general
Packaging Information
Minimum
Order Quantity
Packaging
Specifications
B
L
Bulk(Bag)
500
180mm Embossed Tape
3000
1 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
Product Search Data Sheet
“#” indicates a package specification code.
DXW21HN5011B#
Specifications
℃ ℃
-40 to 85
Operating Temperature Range
Frequency Range
Insertion Loss
100.0MHz to 1000.0MHz
1.0dB(at Freq. Range)(max.)
Size Code (in mm)
Size Code (in inch)
Length
2012
0805
2mm
Length Tolerance
Width
±0.2mm
1.2mm
±0.2mm
0.9mm
±0.1mm
50Ω - 50Ω
10dB
Width Tolerance
Thickness
Thickness Tolerance
Port Impedance
CMRR(min.)
Mass(typ.)
0.009g
2 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
Product Search Data Sheet
“#” indicates a package specification code.
DXW21HN5011B#
Product Data
Insertion Loss Characteristics
CMRR Characteristics
Equivalent Circuit
3 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
