DXW21BZ7511T

型号：

DXW21BZ7511T

品牌：

MURATA[ muRata ]

页数：

3 页

PDF大小：

199 K

下载PDF手册

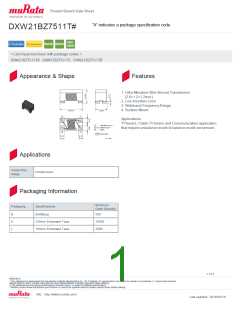

Product Search Data Sheet
“#” indicates a package specification code.
DXW21BZ7511T#
< List of part numbers with package codes >
DXW21BZ7511TK DXW21BZ7511TL DXW21BZ7511TB
Appearance & Shape
Features
1. Ultra Miniature Wire Wound Transformer
(2.0×1.2×1.2mm)
2. Low lnsertion Loss
3. Wideband Frequency Range
4. Surface Mount
Applications
TV tuners, Cable TV tuners and Communication application
that require unbalance mode to balance mode conversion.
Applications
Automotive
Infotainment
Usage
Packaging Information
Minimum
Order Quantity
Packaging
Specifications
B
K
L
Bulk(Bag)
500
330mm Embossed Tape
180mm Embossed Tape
10000
2000
1 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
Product Search Data Sheet
“#” indicates a package specification code.
DXW21BZ7511T#
Specifications
℃ ℃
-40 to 105
Operating Temperature Range
Frequency Range
Insertion Loss
50.0MHz to 870.0MHz
1.0dB(at Freq. Range)(max.)
Size Code (in mm)
Size Code (in inch)
Length
2012
0805
2mm
Length Tolerance
Width
±0.2mm
1.2mm
±0.2mm
1.2mm
±0.2mm
27dBm
75Ω - 75Ω
20dB
Width Tolerance
Thickness
Thickness Tolerance
Power Rating
Port Impedance
CMRR(min.)
Mass(typ.)
0.011g
2 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
Product Search Data Sheet
“#” indicates a package specification code.
DXW21BZ7511T#
Product Data
Insertion Loss Characteristics
CMRR Characteristics
Equivalent Circuit
3 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
：
Last updated 2016/07/18
