EZPE63106LTB

型号:

EZPE63106LTB

品牌:

PANASONIC[ PANASONIC ]

页数:

2 页

PDF大小:

57 K

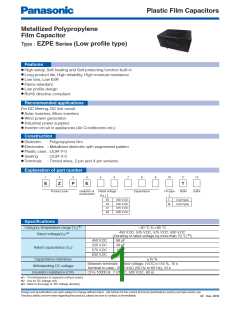

Plastic Film Capacitors
Metallized Polypropylene
Film Capacitor
Type : EZPE Series (Low profile type)
Features
●
High safety, Self-healing and Self-protecting function built-in
Long product life, High reliability, High moisture resistance
Low loss, Low ESR
Flame retardant
Low profile design
RoHS directive compliant
●
●
●
●
●
Recommended applications
For DC filtering, DC link circuit
●
Solar inverters, Micro inverters
Wind power generation
Industrial power supplies
Inverter circuit in appliances (Air Conditioners etc.)
●
●
●
Construction
●
Dielectric : Polypropylene film
Electrodes : Metallized dielectric with segmented pattern
Plastic case : UL94 V-0
●
●
●
Sealing
: UL94 V-0
●
Terminals : Tinned wires, 2-pin and 4-pin versions
Explanation of part number
1
2
3
4
5
6
7
8
9
10
11
12
E
Z
P
E
T
Product code
Dielectric &
construction
Rated voltage
Capacitance
Pin type
Suffix
Suffix
(Ex.)
45
450 V.DC
L
2-pin type
4-pin type
52
525 V.DC
575 V.DC
630 V.DC
M
57
63
Specifications
✽1
Category temperature range (TC)
−40 °C to +85 °C
450 V.DC, 525 V.DC, 575 V.DC, 630 V.DC
(Derating of rated voltage by more than 70 °C
✽2
Rated voltage(VR)
✽3
)
450 V.DC
66 μF
29 μF
12 μF
10 μF
15 ꢀ
525 V.DC
575 V.DC
630 V.DC
Rated capacitance (CR)
Capacitance tolerance
Withstanding DC voltage
Insulation resistance (CR)
Between terminals : Rated voltage. (V.DC)×150 ꢀ, 10 s
Terminal to case : 2000 V.AC (50 Hz or 60 Hz), 10 s
CR > 10000 Ω ∙ F (20 °C, 500 V.DC, 60 s)
1 : The temperature of capacitor surface (case)
2 : Use for DC voltage only
3 : Refer to the page of “DC voltage derating”
✽
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Dec. 2016
Plastic Film Capacitors
Dimensions
Marking
P1 1.0
P2 1.0
0 0.2
Unit : mm
Marking (ex.)
Panasonic
(a)
(b)
DC
V
μF
(a) Rated voltage
(b) Capacitance
(c) Lot No.
(c)
L 1.0
Rating · Dimensions · Quantity
●
Rated voltage : 450 V.DC at 70 °C
Permissible
current
Dimensions (mm)
P1 P2
24 32.5 27.5 37.5 0.8
Min.
Cap.
CR
(ꢁF)
✽3
✽4
✽4
✽4
dv/dt
ESR typ
tan d
order
Mass
(g)
Part No.
✽5
Peak
RMS
Current
(Arms)
Q'ty
[V/μs]
(mΩ)
(ꢀ)
✽1
✽2
W
H
L
f
Current
(pcs)
(Ao-p
)
EZPE45666MTB 66
90
5
300
15.0
5.0
0.3
110
200
●
Rated voltage : 525 V.DC at 70 °C
Permissible
current
Dimensions (mm)
P1 P2
Min.
Cap.
CR
(ꢁF)
✽3
dv/dt
[V/μs]
ESR typ
tan d
(ꢀ)
order
Mass
(g)
Part No.
✽5
Peak
RMS
Current
(Arms)
Q'ty
(mΩ)
✽1
✽2
W
H
L
f
Current
(pcs)
(Ao-p
)
EZPE52296MTB 29 48.5 23.5 37.0 34.0 20.3 0.8
14
400
3.0
7.0
0.4
50
400
●
Rated voltage : 575 V.DC at 70 °C
Permissible
current
Dimensions (mm)
Min.
Cap.
CR
(ꢁF)
✽3
dv/dt
[V/μs]
ESR typ
tan d
(ꢀ)
order
Mass
(g)
Part No.
✽5
Peak
RMS
Current
(Arms)
Q'ty
(mΩ)
✽1
✽2
W
H
L
P1
P2
–
f
Current
(pcs)
(Ao-p
)
EZPE57126LTB
12 24.5 19.5 41.5 37.5
1.0
22
264
5.0
22.0
0.45
25
800
●
Rated voltage : 630 V.DC at 70 °C
Permissible
current
Dimensions (mm)
Min.
Cap.
CR
(ꢁF)
✽3
✽4
dv/dt
ESR typ
tan d
order
Mass
(g)
Part No.
✽5
Peak
RMS
Current
(Arms)
Q'ty
[V/μs]
(mΩ)
(ꢀ)
✽1
✽2
W
H
L
P1
P2
–
f
Current
(pcs)
(Ao-p
)
EZPE63106LTB
10 24.5 19.5 41.5 37.5
1.0
21
210
3.0
22.0
0.45
25
800
1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),
use within limit specified for temperature of capacitor surface and self heating temperature rise.
2 : Maximum RMS current @ 70 °C, 10 kHz
✽
✽
Use within limit for self heating temperature rise at capacitor surface.
typ
3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR
4 : Maximum dissipation factor @ 20 °C, 1 kHz
5 : Minimum order quantity consists of 4 packing units.
✽
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Dec. 2016
