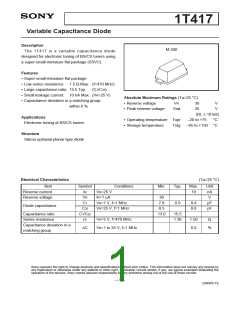

1T417
Variable Capacitance Diode
Description
M-290
The 1T417 is a variable capacitance diode
designed for electronic tuning of BS/CS tuners using
a super-small-miniature flat package (SSVC).
Features
• Super-small-miniature flat package
• Low series resistance: 1.5 Ω Max. (f=470 MHz)
• Large capacitance ratio: 15.5 Typ.
(C1/C25)
• Small leakage current: 10 nA Max. (VR=25 V)
• Capacitance deviation in a matching group:
within 6 %
Absolute Maximum Ratings (Ta=25 °C)
• Reverse voltage
VR
30
35
V
V
• Peak reverse voltage
VRM
(RL ≥ 10 kΩ)
–20 to +75 °C
Tstg –65 to +150 °C
Applications
• Operating temperature Topr
• Storage temperature
Electronic tuning of BS/CS tuners
Structure
Silicon epitaxial planar type diode
Electrical Characteristics
(Ta=25 °C)
Item
Reverse current
Reverse voltage
Symbol
IR
Conditions
Min.
Typ.
8.6
Max.
10
Unit
nA
V
VR=25 V
VR
IR=1 µA
30
7.8
C1
VR=1 V, f=1 MHz
VR=25 V, f=1 MHz
9.4
0.6
pF
pF
Diode capacitance
C25
0.5
Capacitance ratio
Series resistance
C1/C25
rs
13.0
15.5
1.30
VR=5 V, f=470 MHz
1.50
6.0
Ω
Capacitance deviation in a
matching group
∆C
VR=1 to 25 V, f=1 MHz
%
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
—1—
E98905-TE
