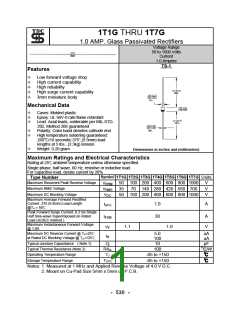

1T1G THRU 1T7G
1.0 AMP. Glass Passivated Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
TS-1
Features
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Low forward voltage drop
High current capability
High reliability
High surge current capability
3mm miniature body
Mechanical Data
ꢀ
ꢀ
ꢀ
Cases: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per MIL-STD-
202, Method 208 guaranteed
ꢀ
ꢀ
Polarity: Color band denotes cathode end
High temperature soldering guaranteed:
260oC/10 seconds/.375”,(9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Weight: 0.20 gram
ꢀ
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
VRRM
VRMS
VDC
1T1G 1T2G 1T3G 1T4G 1T5G 1T6G 1T7G
Type Number
Maximum Recurrent Peak Reverse Voltage
Units
50 100 200 400 600 800 1000
V
V
V
Maximum RMS Voltage
35
70 140 280 420 560 700
Maximum DC Blocking Voltage
50 100 200 400 600 800 1000
Maximum Average Forward Rectified
Current .375 (9.5mm) Lead Length
@TA = 50℃
1.0
A
I(AV)
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.0A
30
A
V
IFSM
1.1
1.0
VF
IR
Maximum DC Reverse Current @ TA=25℃
at Rated DC Blocking Voltage @ TA=125℃
5.0
100
10
uA
uA
Typical Junction Capacitance ( Note 1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Cj
RθJA
TJ
pF
100
OC/W
℃
-65 to +150
-65 to +150
Storage Temperature Range
℃
TSTG
Notes: 1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.
2. Mount on Cu-Pad Size 5mm x 5mm on P.C.B.
- 530 -
