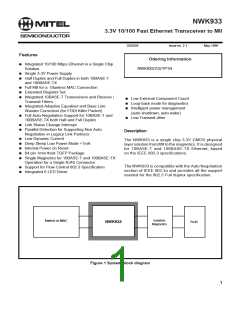

NWK933
3.3V 10/100 Fast Ethernet Transceiver to MII
DS5029
Issue no 2.1
May 1999
Features
Odering Information
● Integrated 10/100 Mbps Ethernet in a Single Chip
Solution
NWK933/CG/TP1N
● Single 3.3V Power Supply
● Half Duplex and Full Duplex in both 10BASE-T
and 100BASE-TX
● Full MII for a Glueless MAC Connection
● Extended Register Set
● Integrated 10BASE-T Transceivers and Receive /
Transmit Filters
● Low External Component Count
● Loop-back mode for diagnostics
● Intelligent power management
(auto shutdown, auto wake)
● Integrated Adaptive Equaliser and Base Line
Wander Correction (for FDDI Killer Packet)
● Full Auto-Negotiation Support for 10BASE-T and
100BASE-TX both Half and Full Duplex
● Link Status Change Interrupt
● Low Transmit Jitter
● Parallel Detection for Supporting Non Auto
Negotiation in Legacy Link Partners
● Low Dynamic Current
● Deep Sleep Low Power Mode <1mA
● Internal Power on Reset
● 64 pin 1mm thick TQFP Package
● Single Magnetics for 10BASE-T and 100BASE-TX
Operation for a Single RJ45 Connector
● Support for Flow Control 802.3 Specification
● Integrated 6 LED Driver
Description
The NWK933 is a single chip 3.3V CMOS physical
layer solution from MII to the magnetics. It is designed
for 10BASE-T and 100BASE-TX Ethernet, based
on the IEEE 802.3 specifications.
The NWK933 is compatible with the Auto Negotiation
section of IEEE 802.3u and provides all the support
needed for the 802.3 Full duplex specification.
Isolation
RJ45
Switch or MAC
NWK933
Magnetics
Figure 1 System block diagram
1
NWK933
48 MINT
47 DVDD3
46 MDC
SUBGND2 1
TX_ER 2
DGND1 3
TX_EN 4
45 MDIO
44 DGND3
43 RefCLK
42 OSCVDD
41 XTAL1
40 XTAL2
39 OSCGND
38 TXGND4
37 TXVDD4
36 TXREF100
35 TXREF10
34 TXVDD3
33 TXGND3
LNKST 5
ACTST 6
COLST 7
DVDD1 8
RXVDD3 9
RXGND3 10
FDST 11
SPDST 12
PA4 13
RESETN 14
RXVDD2 15
RXGND2 16
TP64
Figure 2Pin connections
10Base-T Operation
Functional Description
The NWK933 has three basic modes of operation:
10BASE-T, 100BASE-TX and LOW POWER modes.
The Control block is designed to manage these modes
by starting and stopping the 10M and 100M transceivers
in a well-controlled manner such that no spurious
signals are output on either the MII or twisted-pair
interfaces. Furthermore, it continuously monitors the
behaviour of the transceivers and takes corrective
action if a fault is detected.
10Mb/s Data Transfer on the MII
10Mb/s data is transferred across the MII with clock
speeds of 2.5MHz. The MAC outputs data to the
NWK933 via the MII interface, on the TXD[3:0] bus.
This data is synchronised to the rising edge of TX_CLK.
To indicate that there is valid data for transmission on
the MII, the MAC sets the TX_EN signal active. This
forces the NWK933 device to take in the data on the
TXD[3:0] bus. This is serialised and directly encoded
as Manchester data, before being output on the TXOP/
TXON differential output for transmission through 1:Ö2
magnetics and onto the twisted-pair.
Other modes described herein are repeater mode and
reset mode.
25MHz Reference Clock
The transmit current is governed by the current through
the TXREF10 pin, which must be grounded through a
resistor as described in “External Components”.
The NWK933 requires a 25MHz +/-100ppm timing
reference for 802.3 compatible operation. This may
be supplied either from the integrated oscillator or
from an external source. When the integrated oscillator
is used, a suitable crystal must be connected across
the XTAL1 & XTAL2 pins (see “External Components”)
and REFCLK must be tied low. When an external
source is used, it must be input to the REFCLK pin
and XTAL1 must be tied low. XTAL2 must be
unconnected.
RX10 Clock Recovery
The NWK933 employs a digital delay line controlled
by the 100MHz Synthesizer DLL to derive a sampling
clock from the incoming signal. The recovered clock
runs at twice the data rate (nominally 20MHz). When
a signal is received from the Signal Detect block, it is
used to strobe Link Pulses and Manchester encoded
serial data.
2
NWK933
The Manchester data stream will be decoded into a 4-
bit parallel data bus, RXD[3:0]. The RXD bus is clocked
out on RX_CLK rising. The NWK933 must detect the
first 4 bits of pre-amble before RX_DV is set high.
When RX_DV is high, any Manchester coding violation
will set RX_ER high. RX_DV is reset by a continuous
sequence of zeroes, or by the end-of-packet IDLE
terminator (11 11 00 00). Whilst RX_DV is low, the
data is invalid.
RX10 Latency
When connected to appropriate magnetics the latency
through the RX10 path is less than 6BT (600ns). This
timing is measured from the input of the receive
magnetics to the rising edge of RX_CLK. The RX10
path may ignore up to three Manchester encoded bits
at the start of data reception (802.3 allows up to 5
bits).
100MHz Synthesizer
100Base-TX Operation
This synthesizer employs a delay-locked loop (DLL)
to generate a 100MHz timing reference from the 25MHz
reference clock. This 100MHz reference is used by
the 10BASE-T transmit and receive functions and is
divided by 5 to provide a 20MHz data strobe. The
20MHz clock is used to derive the 2.5 MHz TX_CLK in
10BASE-T mode. The synthesizer is disabled when
not in 10BASE-T mode.
100Mb/s Data Exchange on the MII Interface
100Mb/s data is transferred across the MII with clock
speeds of 25MHz. The MAC outputs data to the
NWK933 via the MII interface, on the TXD[3:0] bus.
This data is synchronised to the rising edge of TX_CLK.
To indicate that there is valid data for transmission on
the MII, the MAC sets the TX_EN signal active. This
forces the NWK933 device to take in the data on the
TXD[3:0] bus and replace the first octet of the MAC
preamble with Start-of-Stream Delimiter (SSD) symbols
to indicate the start of the Physical Layer Stream.
TX10 Pulse Shaper & Filter
The Pulse Shaper & Filter employs a digital Finite
Impulse Response filter (FIR) to pre-compensate for
line distortion and to remove high frequency
components in accordance with the 802.3 Standard.
The Pulse Shaper & Filter is disabled when not in
10BASE-T mode.
When the data transfer across the MII is complete, the
MAC deasserts the TX_EN signal and the NWK933
adds End-of-Stream Delimiters (ESD) symbols onto
the end of the data stream. The complete data stream
(the Physical Layer Stream) is encoded from 4 bits
into 5 bits, scrambled, converted to MLT3 and driven
to the TXOP and TXON pin differentially.
TX10 Latency
The TX100 path is disabled when not in 100BASE-TX
mode and, with the exception of the RX100 Signal
Detect, the RX100 Receive Path is disabled when not in
100BASE-TX mode.
When connected to appropriate magnetics the latency
through the TX10 path is less than 2BT (200ns) for
data transmissions. This timing is measured from the
rising edge of TX_CLK to the output of the transmit
magnetics. The TX10 path will not transmit up to the
first two Manchester encoded bits of a data
transmission, as permitted by the 802.3 Standard.
125MHz Synthesizer
This synthesizer employs a phase-locked loop (PLL) to
generate a 125MHz timing reference from the 25MHz
reference clock. This 125MHz reference is used by the
100BASE-TX transmit function and is divided by 5 to
provide a 25MHz data strobe on TX_CLK. TX_CLK is
frequency and phase locked to the 25MHz reference
with a small phase offset. The synthesizer is disabled
when not in 100BASE-TX mode.
RX10 Filter & RX10 Signal Detect
These blocks work in unison to remove noise and to
block signals that do not achieve the voltage levels
specified in 802.3. Signals that do not achieve the
required level are not sampled in the Clock Recovery
block and are not passed to the outputs.
3
NWK933
RX100 Clock Recovery
TX100 PISO, Encoder and Scrambler
The RX100 Clock Recovery circuit uses a Phase-
Locked Loop (PLL) to derive a sampling clock from
the incoming signal. The recovered clock runs at the
symbol bit rate rate (nominally 125MHz) and is used
to clock the MLT3 decoder and the Serial to Parallel
converter (SIPO).
Data from the MII is loaded into the TX100 PISO,
Encoder and Scrambler on the rising edge of TX_CLK.
It is converted to serial MLT3 for outputting to the
TX100 Driver. The TXD[3] bit is output first. The
PISO & Encoder do not operate until the 125MHz
Synthesizer is locked to the 25MHz reference. This
avoids transmission of spurious signals onto the
twisted-pair.
The recovered clock is divided by 5 to generate the
receive clock (RX_CLK) which is used to strobe
received data across the MII interface. When no
signal is detected in 100BASE-TX mode, the PLL is
locked to the reference clock and runs at 125MHz.
This ensures that RX_CLK runs continuously at
25MHz in 100BASE-TX mode. When a signal is
present, the Clock Recovery PLL remains locked to
the reference until the equalizer has adjusted, then it
requires up to 1ms to phase lock to the incoming
signal. No data is passed to the MII interface until
lock is established.
TX100 Driver
The TX100 Driver outputs the differential signal onto
the TXOP and TXON pins. It operates with 1:root 2
magnetics to provide impedance matching and
amplification of the signal in accordance with the
802.3 specifications. The transmit current is governed
by the current through the TXREF100 pin, which
must be grounded through a resistor as described in
“External Components”. The TX100 driver is disabled
in 10BASE-T mode and in loop back mode.If no data
is being transmitted from the MAC, the NWK933
outputs idle symbols of 11111 (suitably scrambled).
RX100 SIPO, Decoder and Descrambler
The RX100 SIPO, Decoder and Descrambler convert
the received signal from serial MLT3 to 4-bit wide
parallel receive data on the MII. This appears on the
RXD[3:0] bus which is clocked out on the falling edge
of RX_CLK. When a frame starts the NWK933
decodes the SSD symbols and then asserts the
RX_DV signal, in order to inform the MAC that valid
data is available. When the NWK933 detects the
ESD, it deasserts the RX_DV signal.
TX100 Latency
The transmit latency from the first TX_CLK rising
when TX_EN is high to the first bit of the “J” symbol
on the cable is 8BT.
RX100 Equalizer & Base-line Wander
Correction
The RX100 Equalizer compensates for the signal
attenuation and distortion resulting from transmission
down the cable and through the isolation transformers.
The Equalizer is self-adjusting and is designed to
restore signals received from up to 10dB cable
attenuation (at 16MHz). When the Equalizer is active
it adjusts to the incoming signal within 1ms. Thereafter,
the Equalizer will continuously adjust to small
variations in signal level without corrupting the
received data.
RX100 Latency
The latency from the first bit of the “J” symbol on the
cable to CRS assertion is between 11 and 15BT. The
latency from the first bit of the “T” symbol on the
cable to CRS de-assertion is between 19 and 23BT.
100Mb/s Transmit Errors
The 100BASE-TX MLT3 code contains significant
low frequency components which are not passed
through the isolation transformers and cannot be
restored by an adaptive equalizer. This leads to a
phenomenon known as Base-line Wander which will
cause an unacceptable increase in error rate if not
corrected. The NWK933 employs a quantized
feedback technique to restore the low frequency
components and thus maintain a very low error
rate even when receiving signals such as the
“killer packet” described in the TP_PMD spec.
If the NWK933 detects that the TX_ER signal has
gone active whilst the TX_EN signal is active, then it
will propagate the detected error onto the cable by
transmitting the symbol “00100” . Figure 3 shows the
meaning of the different states of TX_EN and TX_ER.
TX_ER is sampled inside the NWK933 on the rising
edge of TX_CLK.
4
NWK933
Initialization (RESET_N)
TX_EN TX_ER
TXD [3:0]
ignored
Indication
The NWK933 incorporates a power-on-reset circuit
for self-initialization on power-up. During initialization
the open-drain RESET_N pin is driven low and all
data outputs are disabled to prevent spurious outputs
to the twisted-pair and to the MII interface. RESET_N
will remain low until the power supply has been stable
for at least 400ns. The NWK933 will then release
RESET_N allowing the external pull-up to pull the pin
high. Device initialisation will not commence until
RESET_N is high. This allows the user to extend the
inactive period by externally holding RESET_N low.
It will not normally be necessary for the user to reset
the NWK933 because it is designed to automatically
recover from fault conditions. However, if required,
the user may initialize the device by doing a hardware
or software reset.
0
1
1
X
0
1
Normal inter frame data
0000 through 1111 Normal data transmission
0000 through 1111 Transmit error propagation
Figure 3. 100Mb/s Transmit Error States
100Mb/s Receive Errors
When there is no data on the cable, the receiver will
see only the idle code of scrambled 1’s. If a non idle
symbol is detected, the receiver looks for the SSD so
that it can align the incoming message for decoding.
If any 2 non consecutive zeros are detected within 10
bits, but are not the SSD symbols a false carrier
indication is signalled to the MII by asserting RX_ER
and setting RXD[3:0] to 1110 whilst keeping RX_DV
inactive. The remainder of the message is ignored
until 10 bits of 1’s are detected.
Reset Mode
There are two types of reset in the NWK933 - hardware
and software. The hardware reset is activated by
setting the RESET_N pin to logic 0, and holding it low
for at least 100ns. This mode causes an over-all reset
in the NWK933 - both analog and digital circuitry are
reset. Whilst RESET_N is low, the SPDST and FDST
pins are inputs, and are used to determine the speed
and duplex capability which will be advertised during
auto-neg. A low on SPDST advertises 100M capability.
A high on FDST advertises full duplex capability.
If any data is decoded after a SSD which is neither a
valid data code nor an ESD, then an error is flagged
by setting RX_ER active whilst the RX_DV signal is
active. This also happens if 2 idle codes are detected
before a valid ESD has been received or descramble
synchronisation is lost during packet reception. The
states of RX_DV and RX_ER are summarised in
Figure 4. RX_ER is clocked on the falling edge of
RX_CLK, and will remain active for at least 1 period
of RX_CLK.
The software reset is activated by setting bit 15 in
register 0 high. This bit is a self clear bit and causes
a partial reset of the device.
RX_DV RX_ER
RXD [3:0]
0000 through 1111 Normal inter frame
1110 False carrier indication
0000 through 1111 Normal data reception
0101 or 0110 Data reception with errors
Indication
Figure 5 summarises the different blocks to be reset
and which reset will affect them:
0
0
1
1
0
1
0
1
Block
HW Reset
yes
SW reset
yes
management register
PCS state machine (RCV,
XMT, ANEG)
yes
yes
Figure 4. 100Mb/s receive error states
XMT scrambler
RCV scramble
control state machine
analog
yes
yes
yes
yes
yes
yes
No
CONTROLS
No
Initialization, mode selection and other options are
governed by the control inputs and register as
described in the following paragraphs.
Figure 5. Effects of Reset
Note: Holding RESET_N low will hold the device in a static,
low power state.
5
NWK933
Low-Power Mode
consecutive false CRS events with no good frame in
between them or if a false CRS event is longer then
480 +/- 4BT. If the NWK933 receives a good carrier
event (480 +/- 4BT) or a good idle event (idle symbols
for a period of 25000 to 30000 bit time) it will resume
frame transfer to the MII.
This function is set via the management interface.
Using MDC and MDIO, Bit 11 of register 0 is written
high to put the NWK933 into Low-Power mode. The
type of low power mode is dependant on bits 14 and
15 in register 24.
For 24[15:14] = 0:0 the 10BASE-T and 100BASE-TX
transceivers are disabled. The oscillator continues
to run. Both RX_CLK and TX_CLK are stopped, the
RXD bus is held low and TXD, TXEN, and TXER are
ignored. MDC and MDIO are still active for new
commands. This mode is intended to conserve power
when the network connection is not required and the
TXOP/TXON output is undriven. Typical current
consumption is less than 10mA.
A false CRS event happens if, at the beginning of a
carrier event, the JK symbols are not received
correctly.
When the NWK933 is in 100M mode it will count all
false CRS events in register 27 bits 7:0. This counter
is self cleared upon read. If a disconnect event
occurs between the consecutive reads of register 27,
bit 15 in the register will set high.
For 24[15:14] = 0:1, everything is turned off, including
the voltage references and the oscillator. This mode
must be exited via the management interface. Typical
current consumption is 0.5mA.
Auto-Negotiation Enable (ANEN)
Auto-negotiation may be hardware disabled by setting
the ANEN pin to logic zero. During operation, auto-
negotiation can be disabled by setting the ANEN pin
low or by setting bit 12 of register 0 to zero. If auto-
neg is disabled, the NWK933 will lose the link, and
link will be re-established only after the NWK933
control state machine has determined the speed
using bits 13 and 8 of register 0 to determine speed
and duplex respectively.
For 24[15:14] = 1:0, the only function available is the
signal detect. The NWK933 will detect a signal
amplitude on the cable and activate the interrupt.
MINT can be selected as either an active low or high
interrupt. Typical current consumption is less than
10mA.
For 24[15:14] = 1:1, the NWK933 will automatically
power down into a sleep mode if no activity is seen
on the cable for approx 2 seconds. Power up is also
automatic if activity is seen. Typical current
consumption is less than 10mA.
MII Management Interface, MDC and MDIO
The management interface is a 2 wire serial interface
connecting a PHY to a management entity. The
management unit controls the PHY and gathers
information on the status of the PHY. It does this via
the implemented registers using MDC to clock the
data on the MDIO pin.
Loopback Mode
Diagnostic loopback may be selected at any time by
asserting setting Bit 14 in register 0. In 10BASE-T
mode transmission to the TXOP/ TXON output will
be stopped and the RX10 Clock Recovery will receive
input from the TX10 transmit path rather than from
the RXIP/RXIN inputs. In 100BASE-TX mode
transmission to the TXOP/TXON output will be stopped
and the RX100 Clock Recovery will receive input
from the TX100 transmit path.
Link Status Change Interrupt, MINT
MINT is, by default, an active low interrupt which is
activated whenever a change in the link status occurs.
It can be changed to be active high by setting bit 13
in register 24. The interrupt will remain active until
the controller acknowledges the interrupt by writing
to register 21 (any data). Should one or more link
status changes occur between the assertion of MINT
and an ackowledge, then MINT will be deasserted
and then reasserted (deassertion time between 100ns
and 150ns). Only a single interrupt event may be
queued at any one time. Multiple status changes
between an ackowledge will generate only a single
queued interrupt.
Repeater Mode
The NWK933 can be put into Repeater Mode by
setting register 24 bit 0 high. In this mode, the CRS
will be active on receive only. In 100Mbps repeater
mode, the NWK933 is able to perform a disconnect
function from the MII. This function is enabled by bit
1 in register 24. (Note that if the device is not in
repeater mode, this bit has no effect). The NWK933
will disconnect from the MII if it receives two
6
NWK933
TX10REF
TXD3-0
TX_ER
FRAMING
&
CONTROL
TX10
PULSE
SHAPER
TX10
DRIVER
MANCHESTER
ENCODER
TX_EN
TX_CLK
TX10
CLOCK
GEN.
RX10 FILTER
& SIGNAL
DETECT
FRAMING
&
CONTROL
LINK PULSE &
MANCHESTER
DECODE
RX10 CLOCK
& DATA
RECOVERY
CRS
COL
TXOP
TXON
RX100 &
SIGNAL
DETECT
FRAMING
& 5B4B
DECODE
ALIGNER
RX100 CLOCK
& DATA
RECOVERY
RX100
EQUALIZER
& BLW
RXD3-0
RX_ER
RX_DV
RX_CLK
RXOP
RXON
&
DESCRAMBLE
FRAMING
&4B5B
ENCODE
TX100 PISO
TX100
DRIVER
TX100
SCRAMBLER
&
ENCODER
TX100REF
TX100
CLOCK
GEN.
ACTST
LNKST
COLST
FDST
Internal
clock
LEDS
POWER
ON
RESET
ANEG
LOGIC
CONTROLS
SPDST
OSC
Figure 6 NWK933 block diagram
7
NWK933
Pin list
Pin #
Name
Type
Description
MD interface
20
RXIN
RXIP
Input
Input
Differential receive pair from magnetics (-)
Differential receive pair from magnetics (+)
100 Differential transmit pair to magnetics (-)
100 Differential transmit pair to magnetics (+)
10BASE-T transmitter current setting pin
100BASE-TX transmitter current setting pin
Active low, power on reset output and external reset input
25MHz crystal input
19
28
TXON
Output
Output
Input
23
TXOP
35
TXREF10
TXREF100
RESETN
XTAL1
36
Input
14
IOput
Input
41
40
XTAL2
Input
25MHz crystal input
MII interface
46
45
53
MDC
MDIO
Input
IOput
Management interface clock (up to 2.5MHz)
Management data
RX_CLK
Output
Output
Receive clock (2.5MHz for 10, 25MHz for 100)
Receive data MII interace
55, 56, 57, 58 RXD0, RXD1,
RXD2, RXD3
51
59
43
64
RX_DV
RX_ER
Output
Output
Input
Receive data valid. Active high.
Receive error. Active high. (RXD4 in symbol mode)
Reference clock
REFCLK
TX_CLK
Output
Input
Transmit clock (2.5MHz for 10, 25MHz for 100)
Transmit Data MII interface
60, 61, 62, 63 TXD0, TXD1,
TXD2, TXD3
4
2
TX_EN
TX_ER
CRS
Input
Input
Transmit Enable. Active high.
Transmit Error. Active high. (TXD4 in symbol mode)
Carrier sense signal. Active high.
50
49
22
48
6
Output
Output
Input
COL
Collision signal. Active high.
ANEN
MINT
Auto Negotiation enable. Active high.
Output
Output
Output
IOput
MII interrupt control.
ACTST
COLST
FDST
Receive / transmit active indication (LED interface). Active low.
Collision active indication (LED interface) Active low.
Full duplex indication when RESET_N high (LED interface). Active low. Input
7
11
when RESET_N is low. High input means 933 advertises full duplex capability.
Output Link OK indication (LED interface). Active low.
5
LNKST
IOput
12
SPDST
Speed indication when RESET_N high (LED interface). High for 100Mb/s mode.
Input when RESET_N is low. Low input means 933 advertises 100Mb/s
capability.
31, 30, 29,
17, 13
PA0, PA1,
Input
Phy address
PA2, PA3, PA4
8
NWK933
General
The following is the register set that is implemented in the NWK933 device:
The interface to these registers is via the MDC and MDIO signals. The address of the NWK933 is specified by
the PA<4:0> static inputs The MD command is issued by the controller and can be read or write:
command preamble start data op code phy address reg number
TA
Z0
10
Data
READ
32 bits of 1
32 bits of 1
01
01
10
01
5 bits
5 bits
5 bits
5 bits
16 bit from phy
16 bit from MAC
WRITE
SC = Self clear
RO = read only
RW = read or write
LL = latch low until register read
LH = latch high until register read
Register Set
reg 0 - control register
Bit
Bit name
Description
Default
R/W
0.15
Reset
1 = PHY reset
0 = Normal operation
0
RW
SC
0.14
0.13
Loopback
1 = Loopback mode active
0 = Normal operation
0
1
RW
Speed
selection
1 = 100 Mbps
0 = 10 Mbps
RW
0.12
0.11
0.10
0.9
ANEG
enable
1 = Enable ANEG process
0 = Disable ANEG process
1
0
0
0
1
0
RW
RW
RW
Power down
1 = Power down active
0 = Normal operation
Isolation
1 = isolation in process
0 = Normal operation
Restart
ANEG
1 = Restart the ANEG process
0 = Normal operation
RW
SC
0.8
Duplex
selection
1= Full Duplex mode
0 = Half duplex mode
RW
0.7
Collision
test
1 = Collision test active
0 = Normal operation
RW
0.6:0
Reserved
Write as 0 ignore on read.
9
NWK933
reg 1- status register
Bit
Bit name
Description
Default
R/W
RO
RO
1.15
1.14
100BaseT4
1 = PHY able to perform 100BaseT4
0 = PHY not able to perform 100BaseT4
0
1
100BASE-TX
- FDX
1 = PHY able to perform 100BASE-TX
0 = PHY not able to perform 100BASE-TX
1.13
1.12
100BASE-TX
- HDX
1 = PHY able to perform 100BASE-TX
0 = PHY not able to perform 100BASE-TX
1
1
RO
RO
10BASE-T
- FDX
1 = PHY able to perform 10BASE-T
0 = PHY not able to perform 10BASE-T
1.11
1.10
1.9
10BASE-T
- HDX
1 = PHY able to perform 10BASE-T
0 = PHY not able to perform 10BASE-T
1
0
0
RO
RO
RO
100BaseT2
- FDX
1 = PHY able to perform 100BaseT2
0 = PHY not able to perform 100BaseT2
100BaseT2
- HDX
1 = PHY able to perform 100BaseT2
0 = PHY not able to perform 100BaseT2
1.8:7
1.6
Reserved
ignore when read
0
0
RO
RO
MF preamble
suppression
1= Phy accept management frames with short preamble
0 = normal preamble only
1.5
1.4
1.3
1.2
1.1
1.0
ANEG
complete
1 = ANEG process completed
0 = ANEG process not completed or not active
0
0
1
0
0
1
RO
Remote
fault
1= Remote fault condition detected
0 = no Remote fault condition detected
RO
LH
ANEG able
1 = Phy is able to perform ANEG
0 = Phy is not able to perform ANEG
RO
Link status
1= Link is up
0 = Link is down
RO
LL
Jabber
detect
1 = jabber condition detected
0 = normal operation
RO
Extended
regs
1 = extended register capability
0 = no extended registers
RO
reg 2/3- NWK933 Identifier register
Bit
Bit name
Description
Default
R/W
RO
RO
2.15:0
3.15:0
OUI
Mitel OUI bits
0282
OUI/device ID Mitel OUI bits and device code
1C7X
10
NWK933
reg 4- ANEG advertisement register
Bit
Bit name
Description
Default
R/W
4.15
NP
Next page able - the NWK933 is not able to
perform next page
0
RO
4.14
4.13
reserved
0
0
RO
remote fault
0 = no remote fault detected
1= a remote fault been detected
R/W
4.12:10
4.9:5
reserved
0
R/W
R/W
R/W
Technology
T4, 100Fdx, 100Hdx, 10Fdx, 10Hdx
0F
01
4.4:0
selector
field
reg 5- ANEG link partner ability register
Bit
5.15
Bit name
NP
Description
Default
R/W
RO
RO
RO
RO
RO
partner is next page capable
partner sent an acknowledge bit
partner detected a remote fault
partner’s technology ability
partner selector field
0
0
0
0
0
5.14
ACK
5.13
remote fault
ability
5.12:5
5.4:0
selector field
reg 6- ANEG expansion register
Bit
6.15:5
6.4
Bit name
Description
Default
R/W
reserved
0
0
RO
parallel
detect fault
0 = aneg process finished. No fault detected
1 = a fault has been detected
RO
LH
6. 3
link partner
0 = Link partner is not next page able
0
RO
next page able 1 = Link partner is next page able
6.2
6.1
next page
able
0 = NWK933 is not able for next page
0
0
RO
Page
received
0 = no new page been received
1= a new page has been received and is in reg 5
RO
LH
6.0
link partner
aneg able
0 = Link partner is not aneg able
1 = Link partner is aneg able
0
RO
reg 16, 17, 18, 19, 20 - Test registers
Bit
Bit name
Description
Default
R/W
15:0
reserved
test mode only
0000
res
11
NWK933
reg 21 - MII interrupt control register
Bit
Bit name
Description
Default
R/W
21.15:0
Clear Interrupt Write any data pattern to clear MINT
0
WO
reg 22, 23 - Test registers
Bit
Bit name
Description
Default
R/W
15:0
reserved
test mode only
0000
res
reg 24- NWK933 specific register
Bit
Bit name
Description
Default
R/W
24.15:14
PWRCON[1:0] Low power controls:
00
RW
00 = full receive path active. No transmit.
01 = Deep sleep (all off including VREF & OSC)
10 = Sleep (generate MII interrupt on activity)
11 = auto shut down, auto wake on activity
24.13
MINTPOL
1 = MINT output active high
0 = MINT output active low
0
RW
24.12
24.11
24.10
Pol Dis
1 = disable 10Base-T autopolarity correction
1 = disable SQE in 10Base-T half duplex mode
0
0
0
RW
RW
RW
SQE disable
JAB disable
0 = in case of jabber the 10Base-T will cut the
transmitted frame (normal operation)
1 = Jabber function disable
24. 9
24.8
24.7
24.6
loop 10
Force RX
Force TX
CRS_CTL
1 = enable MII loopback in 10Base-T half duplex mode
Force receive regardless of link
0
0
0
0
RW
RW
RW
RW
Force transmit regardless of link
CRS behavior in full duplex mode:-
0 = CRS is active for transmit only
1= CRS active for receive or transmit
24.5
24.4
MF
1 = MDIO data accepted without preamble
0
0
RW
RW
Byp ALIGN
0 = normal operation
1 = bypass the aligner function
24.3
24.2
24.1
24:0
Byp ENC
Byp SCR
DISCEN
RPTR
0 = normal operation
1 = bypass the 4B5B encoder function
0
0
0
0
RW
RW
RW
RW
0 = normal operation
1 = bypass the scrambler function
0 = disable disconnection events
1 = enable disconnect on false carrier detection
Set repeater mode (affects CRS generation)
12
NWK933
reg 25 - ANEG status
Bit
25.15:14
25.13
Bit name
Description
Default
R/W
RO
RO
RO
RO
reserved
Pol
test mode only - do not set high
1 indicates polarity reversal on RX inputs (10Base-T)
copy of PHY address pins
0
0
PA<4:0>
0
25.12:8
25.7
PA
aneg
1 = aneg completed
complete
0 = aneg did not complete (same as reg1.5)
25.6
25.5
Duplex
ANEG result - duplex operation
0 = HDX, 1 = FDX
0
0
RO
RO
speed
ANEG result - speed of operation
0 = 10M, 1 = 100M
25.4
ability mtc
1 = abilities match between registers 4 & 5
ANEG state machine current state
0
0
RO
RO
25.3:0
ANEG state
reg 26 - Symbol error counter
Bit
Bit name
Description
Default
R/W
26.15:0
RX_ERR
counter
number of RX_ERR events since last read - Clears
either in change of speed or read of this reg.
0
RO
SC
reg 27 - False carrier event counter
Bit
Bit name
Description
Default
R/W
27.15
disconnect
the disconnect mechanism status
0
RO
LH
27.14:8
27.7:0
reserved
0
0
RO
false CRS
counter
number of False CRS events since last read.
Active only when DISCEN = 1”.
RO
SC
reg 28, 29, 30, 31 - Test registers
Bit
Bit name
Description
Default
R/W
15:0
reserved
test mode only
0000
res
13
NWK933
Operating Conditions
Supply voltage
Ambient temperature
+3.0V to 3.6V
0°C to +70°C
DC Electrical Characteristics
Recommended operating conditions apply except where stated.
Characteristic
Symbol
Value
Units
Conditions
Min
Max
DC parameters - input
High level input voltage
Low level input voltage
High level input current
Low level input current
Pin capacitance to ground
VIH
VIL
IIH
2
VSS
-
-
-
VDD
0.8
1
–1
8
V
V
µA
µA
pF
IIL
no pull up
including package
DC parameters - output -6mA buffers
High level output voltage
Low level output voltage
High level output current
Low level output current
Rise time
Fall time
Pin capacitance to ground
VOH
VOL
IOH
2.4
VSS
-
-
-
-
-
VDD
0.4
–6
6
4
4
V
V
mA
mA
nS
nS
pF
IOL
0.4V to 2.4V into 20pF load
0.4V to 2.4V into 20pF load
8
Differential Output
Peak Differential Voltage
High Level
Zero Level
2.2
2.8
1.05
0.05
-0.95
V
V
V
V
10Mbs mode
100Mbs mode
100Mbs mode
100Mbs mode
0.95
-0.05
-1.05
low Level
Note: Differential outputs are 802.3 compliant
AC Electrical Characteristics
Recommended operating conditions apply except where stated.
Characteristic
Symbol
Value
Units
Conditions
Min
Max
Differential Output
Baseline to +Vout
Baseline to -Vout
+Vout to Baseline
-Vout to Baseline
3
3
3
3
5
5
5
5
nS
nS
nS
nS
100Mbs mode
100Mbs mode
100Mbs mode
100Mbs mode
Note: Differential outputs are 802.3 compliant
14
NWK933
AC Electrical Characteristics (continued)
Recommended operating conditions apply except where stated.
Characteristic
Symbol
Value
Min
Units
Conditions
Max
REFCLK
Frequency
Duty cycle
25±100ppm
45
MHz
%
55
RXCLK
Frequency
Duty cycle
25±100ppm
60
MHz
%
100Mbs mode
100Mbs mode
40
Frequency
Duty cycle
2.5±100ppm
MHz
%
10Mbs mode
10Mbs mode
40
60
TXCLK
Frequency
Duty cycle
25±100ppm
MHz
%
100Mbs mode
100Mbs mode
40
60
Frequency
Duty cycle
2.5±100ppm
MHz
%
10Mbs mode
10Mbs mode
40
60
MDC
Frequency
Minimum high/low
-
2.5
-
MHz
ns
160
Supply Current
Typ
Max
10 Base-T Idle
10 Base-T Active
100 Base-T Idle
100 BAse-T Active
Sleep Mode
Deep sleep mode
Resetn = 0
80
180
128
133
5
0.25
1
90
200
145
150
6
1
2
mA
mA
mA
mA
mA
mA
mA
Measured at 3.3V
Room Temperature
These Figures include
the current flowing
in the Transmit resistors
15
NWK933
MINT
Vdd
SUBGND2
TX_ER
DVDD3
MDC
DGND1
MDIO
TX_EN
LNKST
ACTST
COLST
DGND3
RefCLK
Vdd
Vdd
Vdd
OSCVDD
XTAL1
25MHz
C2
DVDD1
RXVDD3
XTAL2
RXGND3
FDST
SPDST
OSCGND
TXCGND4
TXVDD4
TXREF100
C2
Vdd
Vdd
PA4
RESETN
10K(5%)
5K(5%)
TXREF10
TXVDD3
TXGND3
RXVDD2
RXGND2
1.24K
1%
1.24K
1%
30 (1%)
20 (1%)
30 (1%)
24.9 (1%)
24.9 (1%)
10
0.01µF
20 (1%)
0.01µF
1:√2 MAGNETICS
Figure 7 External Components
Crystal Oscillator
EXTERNAL COMPONENTS
For IEEE802.3 compliance the oscillator must run at
25MHz ±100ppm. The NWK933 on-chip circuitry
contributes less than 40ppm variability to the oscillator
frequency, therefore the crystal must be specified to
60ppm. This must include variations due to
temperature and ageing. The crystal must be capable
of dissipating 0.5mW of power.
Connecting an External 25MHz Reference
If an external clock is used then it should be driven
into the REFCLK input, and XTAL1 must be connected
to ground. XTAL2 must be left unconnected. If a
crystal is used, REFCLK must be connected to ground.
RESETN Pull-up Resistor
External capacitors are required on the XTAL1 &
XTAL2 pins. Manufacturer's recommendations should
be followed.
This resistor is required regardless of whether or not
RESETN is used externally.
Tracking to the crystal and the capacitors must be as
short as possible. Other signal paths must not cross
the area.
RX Input Decoupling
The method of using a split input load resistor and
de-coupling the centre tap reduces common mode
noise.
The NWK933 is supported by the following magnetics:
VENDOR
MAGNETICS
Pulse
H1119
16
http://www.mitelsemi.com
World Headquarters - Canada
Tel: +1 (613) 592 2122
Fax: +1 (613) 592 6909
North America
Tel: +1 (770) 486 0194
Fax: +1 (770) 631 8213
Asia/Pacific
Tel: +65 333 6193
Fax: +65 333 6192
Europe, Middle East,
and Africa (EMEA)
Tel: +44 (0) 1793 518528
Fax: +44 (0) 1793 518581
Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.
This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form part of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.
M Mitel (design) and ST-BUS are registered trademarks of MITEL Corporation
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA
TECHNICAL DOCUMENTATION - NOT FOR RESALE
厂商 型号 描述 页数 下载

SEMIKRON

 		NWK40 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/180 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/240 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

SEMIKRON

 		NWK40/300 对于SKiiP的2 + 3[ For SKiiP 2 + 3 ] 3 页

ZARLINK

 		NWK914B PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ETC

 		NWK914BCGGH1N LAN收发器\n[ LAN Transceiver ] 10 页

MITEL

 		NWK914CG PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

MITEL

 		NWK914D PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ZARLINK

 		NWK914D PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

ZARLINK

 		NWK914DCG PHY / PMD高速铜介质收发器[ PHY/PMD High Speed Copper Media Transceiver ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.233130s
