4MBI75T-060

型号：

4MBI75T-060

描述：

IGBT模块[ IGBT Module ]

品牌：

FUJI[ FUJI ELECTRIC ]

页数：

14 页

PDF大小：

626 K

下载PDF手册

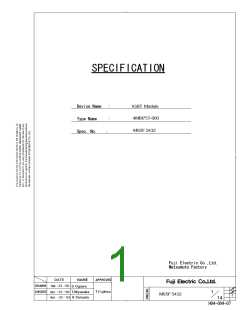

SPECIFICATION
IGBT Module
4MBI75T-060
MS5F 5432
Device Name :
Type Name
:
Spec. No. :
Fuji Electric Co.,Ltd.
Matsumoto Factory
Apr. 23 ’03
S.Ogawa
a
b
c
T.Fujihira
Apr. 23 ’03 T.Miyasaka
Apr. - 23 - ’03 K.Yamada
1
MS5F 5432
14
H04-004-07
R e v i s e d R e c o r d s
Classi-
Applied
date
Date
fication
Ind.
Content
Drawn
Checked
Approved
T.Fujihira
T.Miyasaka
K.Yamada
Issued
date
Apr. - 23- ’03
enactment
Added thermistor
T.Miyasaka
K.Yamada
Oct. - 16- ’03
Dec. - 10- ’03
Sep. - 07- ’04
Revision
Revision
Revision
a
b
c
Y.Seki
Y.Seki
Y.Seki
Y.Kobayashi
Y.Kobayashi
(P3/14, 4/14, 12/14)
Revised VCE(sat),VF
(P4/14, 10/14, 12/14)
S.Miyashita
K.Yamada
Revised VF
S.Miyashita
K.Yamada
Y.Kobayashi
(P4/14, 12/14)
a
b
c
2
MS5F 5432
14
H04-004-06
4MBI75T-060
1. Outline Drawing ( Unit : mm )
(
) showsreferencedimension.
[Thermistor]
a
2. Equivalent circuit
[Inverter]
8
9
a
b
c
3
MS5F 5432
14
H04-004-03
3. Absolute Maximum Ratings ( at Tc= 25°C unless otherwise specified ）
Maximum
Ratings
600
Items
Symbols
Conditions
Ic=1mA
Units
Collector-Emitter voltage
Gate-Emitter voltage
VCES
VGES
V
V
±20
75
Ic
Ic pulse
IF
Duty=100 %
1ms
150
A
Collector current
75
Duty=50 %
1ms
IF pulse
Pc
150
Collector Power Dissipation
Junction temperature
Storage temperature
1 device
178
W
°C
°C
Tj
150
Tstg
-40~ +125
between terminal and copper base *1
a
Isolation
voltage
Viso
-
AC : 1min.
2500
3.5
V
between thermistor and others *2
Mounting *3
Screw
Torque
N m
(*1) All terminals should be connected together when isolation test will be done.
(*2) Two thermistor terminals should be connected together, each other terminals should be connected together
and shorted to base plate when isolation test will be done.
(*3) Recommendable Value : Mounting 2.5~3.5 N m (M5)
4. Electrical characteristics ( at Tj= 25°Cunless otherwise specified)
Characteristics
min. typ. Max.
Items
Symbols
Conditions
Units
Zero gate voltage
Collector current
Gate-Emitter leakage current
CES
GE
CE
CE
GE
I
V
V
0 V,
0 V,
V
V
=
=
600 V
±20 V
-
-
-
-
1.0
mA
nA
I
GES
200
Gate-Emitter
threshold voltage
V
GE(th)
V
CE 20 V, Ic =
75 mA 6.2
6.7
7.7
V
V
V
15 V
Chip
-
-
-
-
b 2.0 b 2.3
b 2.3 b 2.6
Collector-Emitter
GE
VCE(sat)
saturation voltage
Ic =
75 A
0 V
Terminal
VGE =
Input capacitance
Cies
5500
1000
850
0.4
-
-
Output capacitance
Reverse transfer capacitance
Coes
V
CE 10 V
1 MHz
Vcc =300 V
Ic = 75 A
GE ±15 V
pF
Cres f =
-
-
-
-
-
-
-
-
-
-
ton
tr
1.2
0.6
-
Turn-on time
0.25
0.1
tr(i)
toff
tf
V
R
μs
G
=
51
0.4
1.2
Ω
Turn-off time
0.04 0.45
c 2.1 c 2.5
c 2.4 c 2.8
Chip
I
F
=
75 A
IF = 75 A
Ic > 150A ,Tj = 125°C
T = 25°C
F
Forward on voltage
V
V
Terminal
Reverse recovery time
Allowabe avalanche energy
during short circuit cutting off
(Non-repetitive)
trr
-
0.3
μs
P
AV
30
-
-
mJ
a
-
5000
495
-
Ω
Resistance
B value
R
B
T =100°C
465
520
T = 25/50°C
3305 3375 3450
K
5. Thermal resistance characteristics
Items
Characteristics
Symbols
Conditions
Units
min.
typ. Max.
th(j-c) IGBT
-
-
-
-
-
0.70
R
Thermal resistance (1 device)
FWD
1.66 °C/W
-
Contact Thermal resistance (1 device)
R
th(c-f) With thermal compound *
0.05
* This is the value which is defined mounting on the additional cooling fin
with thermal compound.
a
b
c
4
MS5F 5432
14
H04-004-03
6. Indication on module
4MBI75T-060
75A 600V
Place of manufucturing
Lot No.
7. Applicable category
This specification is applied to IGBT Module named 4MBI75T-060
8. Storage and transportation notes
The module should be stored at a standard temperature of 5 to 35 and
Ｃ
・
humidity of 45 to 75% .
Store modules in a place with few temperature changes in order to avoid
condensation on the module surface.
・
Avoid exposure to corrosive gases and dust.
・
・
・
・
Avoid excessive external force on the module.
Store modules with unprocessed terminals.
Do not drop or otherwise shock the modules when tranporting.
9. Definitions of switching time
90%
0V
0V
V
GE
t
rr
L
I
rr
V
Ic
CE
90%
90%
Vcc
10%
10%
10%
V
CE
Ic
0V
0A
R
G
V
CE
t
r(i)
t
f
V
GE
t
r
Ic
t
off
t
on
a
b
c
5
MS5F 5432
14
H04-004-03
10. Definition of the allowable avalance energy during short circuit cutting off
-VCEP
1
PAV=
×VCEP×ICP×tf(SC)
2
IC
-ICP
VCE
tf(SC)
11. UL recognition
This products is recognized by Underwriters Laboratories Inc., the file No. is E82988.
12. Packing and Labeling
Packing box
Display on the packing box
- Logo of production
- Type name
- Lot No.
- Products quantity in a packing box
Display
* Each modules are packed with electrical protection.
a
b
c
6
MS5F 5432
14
H04-004-03
13. Reliability test results
Reliability Test Items
Reference
norms
EIAJ ED-4701
(Aug.-2001 edition)
Test
cate-
gories
Number Accept-
of ance
sample number
Test items
Test methods and conditions
1 Terminal Strength Pull force
: 20N
Test Method 401
5
5
( 1 : 0 )
( 1 : 0 )
Ⅰ
Method
(Pull test)
Test time
: 10±1 sec.
2 Mounting StrengthScrew torque
Test time
: 2.5 ~ 3.5 N m (M5)
Test Method 402
･
Ⅱ
method
: 10±1 sec.
3 Vibration
Range of frequency : 10 ~ 500Hz
Test Method 403
Reference 1
5
( 1 : 0 )
Sweeping time
Acceleration
: 15 min.
100m/s2
:
Condition code B
Sweeping direction : Each X,Y,Z axis
Test time
: 6 hr. (2hr./direction)
5000m/s2
: 1.0msec.
Test Method 404
Condition code B
4 Shock
Maximum acceleratio :
Pulse width
Direction
5
5
( 1 : 0 )
( 1 : 0 )
: Each X,Y,Z axis
: 3 times/direction
: 235±5 ℃
Test time
5 Solderabitlity
Solder temp.
Immersion time
Test time
Test Method 303
Condition code A
: 5±0.5sec.
: 1 time
Each terminal should be Immersed in solder
within 1~1.5mm from the body.
6 Resistance to
Soldering Heat
Solder temp.
Immersion time
Test time
: 260±5
5
( 1 : 0 )
℃
Test Method 302
Condition code A
: 10±1sec.
: 1 time
Each terminal should be Immersed in solder
within 1~1.5mm from the body.
Test Method 201
Test Method 202
1 High Temperature Storage temp.
Storage Test duration
2 Low Temperature Storage temp.
: 125±5 ℃
: 1000hr.
: -40±5 ℃
: 1000hr.
: 85±2 ℃
: 85±5%
5
5
5
( 1 : 0 )
( 1 : 0 )
( 1 : 0 )
Storage
3 Temperature
Humidity
Test duration
Storage temp.
Relative humidity
Test duration
Test temp.
Test Method 103
Test code C
Storage
: 1000hr.
4 Unsaturated
: 120
2
Test Method 103
Test code E
5
5
( 1 : 0 )
( 1 : 0 )
± ℃
1.7 × 105 Pa
Pressure Cooker Atmospheric pressure:
Test humidity
: 85±5%
Test duration
: 96hr.
5 Temperature
Test Method 105
Cycle
Test temp.
:
Low temp. -40±5 ℃
High temp. 125
5
± ℃
RT 5 ~ 35 ℃
Dwell time
: High ~ RT ~ Low ~ RT
1hr. 0.5hr. 1hr. 0.5hr.
: 100 cycles
Number of cycles
Test temp.
6 Thermal Shock
Test Method 307
method Ⅰ
5
( 1 : 0 )
+0
:
High temp. 100 -5
℃
Condition code A
+5
Low temp. 0 -0
℃
Used liquid : Water with ice and boiling water
Dipping time
: 5 min. par each temp.
: 10 sec.
Transfer time
Number of cycles
: 10 cycles
a
b
c
7
MS5F 5432
14
H04-004-03
Reliability Test Items
Reference
norms
EIAJ ED-4701
Test
cate-
gories
Number Accept-
of ance
sample number
Test items
Test methods and conditions
(Aug.-2001 edition)
Test Method 101
1 High temperature
Reverse Bias
5
( 1 : 0 )
Test temp.
: Ta = 125±5 ℃
(Tj ≦ 150 ℃)
Bias Voltage
Bias Method
: VC = 0.8×VCES
: Applied DC voltage to C-E
VGE = 0V
Test duration
Test temp.
: 1000hr.
Test Method 101
2 High temperature
Bias (for gate)
5
( 1 : 0 )
: Ta = 125±5 ℃
(Tj ≦ 150 ℃)
Bias Voltage
Bias Method
: VC = VGE = +20V or -20V
: Applied DC voltage to G-E
VCE = 0V
Test duration
Test temp.
: 1000hr.
Test Method 102
Condition code C
3 Temperature
Humidity Bias
5
5
( 1 : 0 )
85±2 oC
:
Relative humidity
Bias Voltage
:
85±5%
: VC = 0.8×VCES
: Applied DC voltage to C-E
VGE = 0V
: 1000hr.
: 2 sec.
: 18 sec.
:
ꢁ Tj=100±5 deg
Tj ≦ 150 ℃, Ta=25±5 ℃
Bias Method
Test duration
ON time
OFF time
Test Method 106
4 Intermitted
Operating Life
(Power cycle)
( for IGBT )
( 1 : 0 )
Test temp.
Number of cycles
Characteristic
: 15000 cycles
Failure Criteria
Item
Symbol
Failure criteria
Lower limit Upper limit
Unit
Note
Electrical
Leakage current
ICES
±IGES
VGE(th)
VCE(sat)
VF
-
-
USL×2
USL×2
mA
characteristic
A
ꢀ
Gate threshold voltage
Saturation voltage
Forward voltage
LSL×0.8
USL×1.2
USL×1.2
USL×1.2
USL×1.2
mA
V
-
-
-
V
Thermal
IGBT
VGE
mV
ꢁ
resistance
or ꢁ VCE
VF
FWD
-
USL×1.2
mV
-
ꢁ
Isolation voltage
Visual inspection
Peeling
Viso
Broken insulation
Visual
inspection
-
The visual sample
-
Plating
and the others
LSL : Lower specified limit.
USL : Upper specified limit.
Note : Each parameter measurement read-outs shall be made after stabilizing the components at room
ambient for 2 hours minimum, 24 hours maximum after removal from the tests. And in case of the
wetting tests, for example, moisture resistance tests, each component shall be made wipe or dry
completely before the measurement.
a
b
c
8
MS5F 5432
14
H04-004-03
Reliability Test Results
Test
cate-
gorie
s
Number
of
failure
sample
Reference
norms
EIAJ ED-4701
Number
of test
sample
Test items
(Aug.-2001 edition)
Test Method 401
MethodⅠ
1 Terminal Strength
(Pull test)
5
5
5
5
5
5
5
5
5
5
5
5
0
0
0
0
0
0
0
0
0
0
0
0
Test Method 402
methodⅡ
2 Mounting Strength
3 Vibration
Test Method 403
Condition code B
Test Method 404
Condition code B
4 Shock
5 Solderabitlity
Test Method 303
Condition code A
Test Method 302
Condition code A
Test Method 201
6 Resistance to Soldering Heat
1 High Temperature Storage
2 Low Temperature Storage
Test Method 202
Test Method 103
Test code C
3 Temperature Humidity
Storage
Test Method 103
Test code E
4 Unsaturated
Pressure Cooker
5 Temperature Cycle
Test Method 105
Test Method 307
method Ⅰ
6 Thermal Shock
Condition code A
Test Method 101
1 High temperature Reverse Bias
5
5
5
5
0
0
0
0
Test Method 101
2 High temperature Bias
( for gate )
Test Method 102
Condition code C
Test Method 106
3 Temperature Humidity Bias
4 Intermitted Operating Life
(Power cycling)
( for IGBT )
a
b
c
9
MS5F 5432
14
H04-004-03
[ Inverter ]
Collector current vs. Collector-Emitter voltage
Tj= 25C (typ.)
[ Inverter ]
Collector current vs. Collector-Emitter voltage
Tj= 125C (typ.)
b
b
200
150
100
50
200
15V
VGE= 20V
12V
15V
VGE= 20V
12V
150
100
50
10V
10V
8V
8V
0
0
0
1
2
3
4
5
0
5
0
1
2
3
4
5
Collector - Emitter voltage : VCE [ V ]
Collector - Emitter voltage : VCE [ V ]
[ Inverter ]
[ Inverter ]
b
Collector current vs. Collector-Emitter voltage
VGE=15V (typ.)
Collector-Emitter voltage vs. Gate-Emitter voltage
Tj= 25C (typ.)
200
150
100
50
12
10
8
Tj= 25C
Tj= 125C
6
4
Ic=150A
2
Ic=75A
Ic=37.5A
0
0
0
1
2
3
4
5
10
15
20
25
Collector - Emitter voltage : VCE [ V ]
Gate - Emitter voltage : VGE [ V ]
[ Inverter ]
[ Inverter ]
Dynamic Gate charge (typ.)
Vcc=300V, Ic=100A, Tj= 25C
Capacitance vs. Collector-Emitter voltage (typ.)
VGE=0V, f= 1MHz, Tj= 25C
20000
10000
5000
500
400
300
200
100
0
25
20
15
10
5
Cies
1000
Coes
Cres
200
0
0
5
10
15
20
25
30
35
100
200
300
400
Collector - Emitter voltage : VCE [ V ]
Gate charge : Qg [ nC ]
a
b
c
10
MS5F 5432
14
H04-004-03
[ Inverter ]
[ Inverter ]
Switching time vs. Collector current (typ.)
Vcc=300V, VGE=+-15V, Rg= 51ohm, Tj= 125C
Switching time vs. Collector current (typ.)
Vcc=300V, VGE=+-15V, Rg=51ohm, Tj= 25C
1000
100
10
1000
100
10
ton
ton
toff
tr
toff
tr
tf
tf
0
50
100
150
200
500
0
0
0
50
100
150
150
800
Collector current : Ic [ A ]
Collector current : Ic [ A ]
[ Inverter ]
[ Inverter ]
Switching time vs. Gate resistance (typ.)
Vcc=300V, Ic=75A, VGE=+-15V, Tj= 25C
Switching loss vs. Collector current (typ.)
Vcc=300V, VGE=+-15V, Rg=51ohm
5000
1000
8
6
4
2
0
Eon(125C)
ton
toff
tr
Eon(25C)
Eoff(125C)
Eoff(25C)
100
tf
Err(125C)
Err(25C)
10
10
100
50
100
Gate resistance : Rg [ ohm ]
Collector current : Ic [ A ]
[ Inverter ]
[ Inverter ]
Switching loss vs. Gate resistance (typ.)
Vcc=300V, Ic=75A, VGE=+-15V, Tj= 125C
Reverse bias safe operating area
+VGE=15V, -VGE<=15V, Rg>=51ohm, Tj<=125C
20
15
10
5
200
150
100
50
Eon
Eoff
Err
0
0
50
100
200
400
600
Gate resistance : Rg [ ohm ]
Collector - Emitter voltage : VCE [ V ]
a
b
c
11
MS5F 5432
14
H04-004-03
[ Inverter ]
Reverse recovery characteristics (typ.)
Vcc=300V, VGE=+-15V, Rg=51ohm
[ Inverter ]
c
Forward current vs. Forward on voltage (typ.)
150
300
Tj=125C
trr(125C)
100
100
50
0
Tj=25C
trr(25C)
Irr(125C)
Irr(25C)
10
0
1
2
3
4
0
50
100
150
Forward on voltage : VF [ V ]
Forward current : IF [ A ]
a
[Thermistor]
Transient thermal resistance
Temperature characteristic (typ.)
3
1
100
FWD
IGBT
10
1
0.1
0.1
0.02
0.001
0.01
0.1
1
-60 -40 -20
0
20 40 60 80 100 120 140 160 180
Pulse width : Pw [ sec ]
Temperature [°C ]
a
b
c
12
MS5F 5432
14
H04-004-03
Warnings
-
-
-
This product shall be used within its absolute maximum rating (voltage, current, and temperature).
This product may be broken in case of using beyond the ratings.
製品の絶対最大定格（電圧，電流，温度等）の範囲内で御使用下さい。
絶対最大定格を超えて使用すると、素子が破壊する場合があります。
Connect adequate fuse or protector of circuit between three-phase line and
this product to prevent the equipment from causing secondary destruction.
万一の不慮の事故で素子が破壊した場合を考慮し、商用電源と本製品の間に適切な容量のヒューズ
又はブレーカーを必ず付けて２次破壊を防いでください。
Use this product after realizing enough working on environment and considering of product's reliability life.
This product may be broken before target life of the system in case of using beyond the product's reliability life.
製品の使用環境を十分に把握し、製品の信頼性寿命が満足できるか検討の上、本製品を適用して下さい。
製品の信頼性寿命を超えて使用した場合、装置の目標寿命より前に素子が破壊する場合があります。
If the product had been used in the environment with acid, organic matter, and corrosive gas ( hydrogen sulfide,
sulfurous acid gas), the product's performance and appearance can not be ensured easily.
-
酸・有機物・腐食性ガス（硫化水素，亜硫酸ガス等）を含む環境下で使用された場合、製品機能・外観などの保証は
致しかねます。
Use this product within the power cycle curve (Technical Rep.No. : MT6M3947)
-
-
本製品は、パワーサイクル寿命カーブ以下で使用下さい(技術資料No.: MT6M3947)
Never add mechanical stress to deform the main or control terminal.
The deformed terminal may cause poor contact problem.
主端子及び制御端子に応力を与えて変形させないで下さい。ꢀ端子の変形により、接触不良などを引き起こす場合
があります。
Use this product with keeping the cooling fin's flatness between screw holes within 100um at 100mm and the
roughness within 10um. Also keep the tightening torque within the limits of this specification.
Improper handling may cause isolation breakdown and this may lead to a critical accident.
-
100mm 100um
冷却フィンはネジ取り付け位置間で平坦度を
10um
以下にして下さい。ꢀ誤った取り扱
で
以下、表面の粗さは
いをすると絶縁破壊を起こし、重大事故に発展する場合があります。
It shall be confirmed that IGBT's operating locus of the turn-off voltage and current are within the RBSOA
specification. This product may be broken if the locus is out of the RBSOA.
-
-
-
-
-
ターンオフ電圧・電流の動作軌跡がRBSOA仕様内にあることを確認して下さい。
RBSOAの範囲を超えて使用すると素子が破壊する可能性があります。
If excessive static electricity is applied to the control terminals, the devices may be broken.
Implement some countermeasures against static electricity.
制御端子に過大な静電気が印加された場合、素子が破壊する場合があります。
取り扱い時は静電気対策を実施して下さい。
Never add the excessive mechanical stress to the main or control terminals
when the product is applied to equipments. The module structure may be broken.
素子を装置に実装する際に、主端子や制御端子に過大な応力を与えないで下さい。
端子構造が破壊する可能性があります。
In case of insufficient -VGE, erroneous turn-on of IGBT may occur.
-VGE shall be set enough value to prevent this malfunction. (Recommended value : -VGE = -15V)
逆バイアスゲート電圧-VGEが不足しますと誤点弧を起こす可能性があります。
誤点弧を起こさない為に-VGEは十分な値で設定して下さい。ꢀ（推奨値 : -VGE = -15V)
In case of higher turn-on dv/dt of IGBT, erroneous turn-on of opposite arm IGBT may occur.
Use this product in the most suitable drive conditions, such as +VGE, -VGE, RG to prevent the malfunction.
ターンオン dv/dt が高いと対抗アームのＩＧＢＴが誤点弧を起こす可能性があります。
誤点弧を起こさない為の最適なドライブ条件（+VGE, -VGE, RG等）でご使用下さい。
a
b
c
13
MS5F 5432
14
H04-004-03
Cautions
-
Fuji Electric is constantly making every endeavor to improve the product quality and reliability. However,
ꢀ
semiconductor products may rarely happen to fail or malfunction. To prevent accidents causing injuly or
death, damage to property like by fire, and other social damage resulted from a failure or malfunction of
the Fuji Electric semiconductor products, take some measures to keep safety such as redundant design,
spread-fire-preventive design, and malfunction-protective design.
富士電機は絶えず製品の品質と信頼性の向上に努めています。しかし、半導体製品は故障が発生したり、
誤動作する場合があります。富士電機製半導体製品の故障または誤動作が、結果として人身事故・火災
等による財産に対する損害や社会的な損害を起こさないように冗長設計・延焼防止設計・誤動作防止設計
など安全確保のための手段を講じて下さい。
-
-
The application examples described in this specification only explain typical ones that used the Fuji Electric
products. This specification never ensure to enforce the industrial property and other rights, nor license the
enforcement rights.
本仕様書に記載してある応用例は、富士電機製品を使用した代表的な応用例を説明するものであり、本仕様書
によって工業所有権、その他権利の実施に対する保障または実施権の許諾を行うものではありません。
The product described in this specification is not designed nor made for being applied to the equipment or
systems used under life-threatening situations. When you consider applying the product of this specification
to particular used, such as vehicle-mounted units, shipboard equipment, aerospace equipment, medical devices,
atomic control systems and submarine ralaying equipment or systems, please apply after confirmation
ꢀ
of this product to be satisfied about system construction and required reliability.
本仕様書に記載された製品は、人命にかかわるような状況下で使用される機器あるいはシステムに用いられることを
目的として設計・製造されたものではありません。本仕様書の製品を車両機器、船舶、航空宇宙、医療機器、原子力
制御、海底中継機器あるいはシステムなど、特殊用途へのご利用をご検討の際は、システム構成及び要求品質に
満足することをご確認の上、ご利用下さい。
If there is any unclear matter in this specification, please contact Fuji Electric Co.,Ltd.
a
b
c
14
MS5F 5432
14
H04-004-03
厂商 型号 描述 页数 下载

FUJI

 		4MBI100T-060 [ 4MBI100T-060 ] 14 页

FUJI

 		4MBI150T-060 IGBT模块[ IGBT Module ] 14 页

FUJI

 		4MBI200T-060 IGBT模块[ IGBT Module ] 14 页

FUJI

 		4MBI300VG-120R-50 IGBT模块（ V系列） 1200V / 300A / IGBT ， 600V / 300A / RB -IGBT ，4合1包[ IGBT MODULE (V series) 1200V / 300A / IGBT, 600V/300A/RB-IGBT, 4 in one package ] 11 页

FUJI

 		4MBI400VG-060R-50 IGBT模块（ V系列） 600V / 400A / IGBT ， RB -IGBT 4在一个封装[ IGBT MODULE (V series) 600V / 400A / IGBT, RB-IGBT 4 in one package ] 10 页

ETC

 		4MBP100RA-060 4 IPM IGBT\n[ 4 IPM IGBT ] 15 页

FUJI

 		4MBP100RA060 IGBT -IPM[ IGBT-IPM ] 15 页

FUJI

 		4MBP75RA060 IGBT -IPM[ IGBT-IPM ] 15 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.274461s
