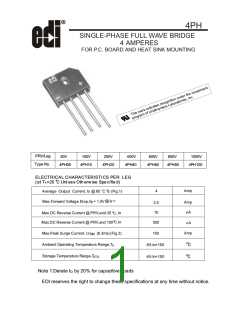

4PH
SINGLE-PHASE FULL WAVE BRIDGE
4 AMPERES
FOR P.C. BOARD AND HEAT SINK MOUNTING
PRV/Leg
Type No.
50V
100V
200V
400V
600V
800V
1000V
4PH05
4PH10
4PH20
4PH40
4PH60
4PH80
4PH100
ELECTRICAL CHARACTERISTICS PER LEG
(at T
A
=25 C Unl ess Oth erw ise Spe cified)
O
Amp
4
Average Output Current, Io @ 65 C Tc (Fig.1)
@
I
=
Max.Forward Voltage Drop,V = 1.0V
F
F
Amp
2.5
A
10
IR
Max.DC Reverse Current @ PRV,and 25 C ,
C IR
,
Max.DC Reverse Current @ PRV,and 100
300
A
Amp
150
Max.Peak Surge Current, I
(8.3ms) (Fig.2)
FSM
o
Ambient Operating Temperature Range,TA
-55 to+150
C
o
Storage Temperature Range,T
STG
-55 to+150
C
Note 1:Derate IO by 20% for capacitive loads
EDI reserves the right to change these specifications at any time without notice.
