OXUF924DSA

型号：

OXUF924DSA

描述：

FireWire400 ， FireWire800与USB 2.0到双SATA桥接[ FireWire400, FireWire800 & USB2.0 to Dual SATA Bridge ]

品牌：

OXFORD[ OXFORD SEMICONDUCTOR ]

页数：

2 页

PDF大小：

65 K

下载PDF手册

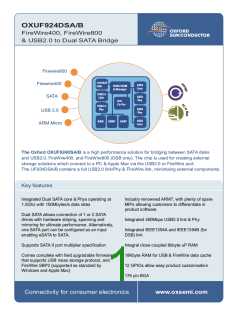

OXUF924DSA/B
FireWire400, FireWire800
& USB2.0 to Dual SATA Bridge
Firewire800
1394A/B
Link
Firewire400
SATA
Core
Buffer RAM
& Manager
USB2.0
Link
SATA
SATA
Phy
Orb
Co-Pro
USB2.0
Phy
SATA
Phy
USB 2.0
SATA
Core
RAM
ARM7
UART
ARM Micro
The Oxford OXUF924DSA/B is a high performance solution for bridging between SATA disks
and USB2.0, FireWire400, and FireWire800 (DSB only). The chip is used for creating external
storage solutions which connect to a PC & Apple Mac via the USB2.0 or FireWire port.
The UF924DSA/B contains a full USB2.0 link/Phy & FireWire link, minimising external components.
Key features
Integrated Dual SATA core & Phys operating at
1.5Ghz with 150Mbytes/s data rates
Industry renowned ARM7, with plenty of spare
MIPs allowing customers to differentiate in
product software
Dual SATA allows connection of 1 or 2 SATA
drives with hardware striping, spanning and
mirroring for ultimate performance. Alternatively,
one SATA port can be configured as an input
enabling eSATA to SATA.
Integrated 480Mbps USB2.0 link & Phy
Integrated IEEE1394A and IEEE1394B (for
DSB) link
Supports SATA II port multiplier specification
Integral close coupled 8kbyte uP RAM
18Kbyte RAM for USB & FireWire data cache
12 GPIOs allow easy product customisation
176 pin BGA
Comes complete with field upgradable firmware
that supports USB mass storage protocol, and
FireWire SBP2 (supported as standard by
Windows and Apple Mac)
Connectivity for consumer electronics
www.oxsemi.com
OXUF924DS
FireWire400, FireWire800
& USB2.0 to Dual SATA Bridge
FireWire400/800
The OXUF924DSA supports FireWire400 while the
OXUF924DSB supports both FireWire400 and the latest highest
speed FireWire800.
USB2.0
The OXUF924DS supports both Full and High-Speed USB modes.
It's high performance FIFO manager together with high speed
architecture exceed the throughput capability of today's PCs,
ensuring it keeps pace as they continue to increase in speed.
SATA Interface
The SATA interface allows external storage products to follow the
current transition of hard disk drives from Parallel ATA to
Serial ATA.
RAID
The chip supports several RAID functions.
Striping, allows two SATA disks to appear as a single higher
speed disk, by sharing the load between the two disks.
Mirroring, writes the same data to both disks, so that data may
be recovered in the event of one drive failing
Spanning, allows two drives to appear as one to the host machine
Embedded ARM processor
The on-chip ARM7TDMI enables product differentiation by
giving customers the option to develop custom software features
using the development kit. The firmware is field upgradable,
allowing products to be updated with the latest software. Software
development is carried out in a C/C++ programming environment.
Development tools and custom solutions
For external MAC and PC storage solutions, Oxford
Semiconductor offers a selection of reference designs,
development code, drivers, and evaluation kits.
Comprehensive application notes shorten learning curves and
simplify implementation.
Mac is a trademark of Apple Computer Inc
Singapore
Taiwan
Europe
US
Oxford Semiconductor
1010 Dover Road, SPGG #03-04
Singapore 139658
Oxford Semiconductor
11F-10 No.6, Section 4
Sin-Yi Rd, Taipei 106
Oxford Semiconductor Ltd Oxford Semiconductor Inc
25 Milton Park, Abingdon 1768 McCandless Drive
Oxfordshire OX14 4SH, UK Milpitas, CA 95035, USA
Tel:
+65 67754080
+65 67744811
Email: sales@oxsemi.com
Tel:
+886 22708 9918
+886 22708 9477
Email: sales@oxsemi.com
Tel:
Fax:
+44 1235 824900
+44 1235 821141
Tel:
Fax:
+1 408 942 4100
+1 406 942 7245
Fax:
Fax:
Email: sales@oxsemi.com
Email: salesusa@oxsemi.com
Connectivity for consumer electronics
www.oxsemi.com
