OZ992

型号：

OZ992

描述：

智能管理智能ACPI GPIO / SCI[ Intelligent Manager Smart ACPI GPIO/SCI ]

品牌：

ETC[ ETC ]

页数：

5 页

PDF大小：

40 K

下载PDF手册

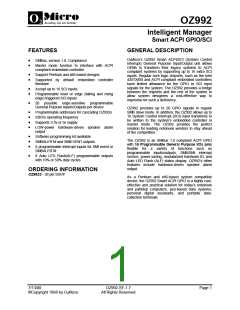

OZ992
Intelligent Manager
Smart ACPI GPIO/SCI
FEATURES
GENERAL DESCRIPTION
O2Micro’s OZ992 Smart ACPI/SCI (System Control
Interrupt) General Purpose Input/Output unit allows
OEMs to transform their legacy systems to ACPI
compliant systems by supporting up to 16 extra SCI
inputs. Regular core logic chipsets, such as the Intel
430TX/BX and ACPI compliant embedded controllers
have limited allowance for the GPIO or SCI input
signals for the system. The OZ992 provides a bridge
between the chipsets and the rest of the system to
allow system designers a cost-effective way to
improvise for such a deficiency.
•
•
SMBus, version 1.0, Compliance
Master mode function to interface with ACPI
compliant embedded controller
•
•
Support Pentium and x86-based designs
Supported by default embedded controller
firmware
•
•
Accept up to 16 SCI inputs
Programmable level or edge (falling and rising
edge) triggered SCI inputs
•
20 possible edge-sensitive programmable
General Purpose Inputs/Outputs per device
OZ992 provides up to 20 GPIO signals in regular
SMB slave mode. In addition, the OZ992 allows up to
16 System Control Interrupt (SCI) input transitions to
be written to the system’s embedded controller in
master mode. The OZ992 provides the perfect
solution for leading notebook vendors to stay ahead
of the competition.
•
•
•
•
Programmable addresses for cascading OZ992s
32KHz operating frequency
Supports 3.3v or 5v supply
LOW-power hardware-driven speaker alarm
output
•
•
•
Software programming kit available
SMBALERT# and SMIEVENT outputs
The OZ992 is an SMBus 1.0 compliant ACPI GPIO
with 16 Programmable General Purpose I/Os pins
8 programmable interrupt inputs for SMI event or
SMBALERT#
flexible for
a
variety of functions such as
programmable inputs/outputs, SMB/SMI interrupt
service, power-saving, modularized hardware ID, and
Auto LED Flash (ALF) status display. OZ992’s other
features include hardware-driven speaker alarm
output.
•
8 Auto LED Flash(ALF) programmable outputs
with 10% or 50% duty cycles
ORDERING INFORMATION
OZ992S - 28 pin SSOP
As a Pentium and x86-based system compatible
device, the OZ992 Smart ACPI GPIO is a highly cost-
effective and practical solution for today’s notebook
and palmtop computers, pen-based data systems,
personal digital assistants, and portable data-
collection terminals.
7/13/00
©Copyright 1998 by O2Micro
OZ992-SF-1.7
All Rights Reserved
Page 1
OZ992
PIN DIAGRAM
28
VCC
1
SMBCLK
SMBDATA
PWRGD
32KHZ
27
26
25
2
3
4
RESETN
EOI#
GPIO[15]
GPIO[14]
GPIO[16]
GPIO[17]
24
23
5
GPIO[13]
GPIO[12]
6
7
8
GPIO[18]/TEST[0]
22
21
GPIO[19]/TEST[1]
GPIO[0]/SMIEVENT
GPIO[1]
GPIO[11]
GPIO[10]
20
19
18
9
GPIO[9]
GPIO[8]
GPIO[7]
GPIO[6]
GPIO[5]
10
11
GPIO[2]/SMBALERT#
GPIO[3]
17
16
12
13
14
GPIO[4]
GND
15
PIN DESCRIPTION
Name
Pin No.
Type
Input
Drive
Definition
SMBCLK
1
I
TTL
-
SMBus Clock Input
SMBus Data Input/Output
Host System Power Good
SMBus Clock Input for SMBus protocol communication.
I/O TTL 12mA
SMBus Data Input/Output for SMBus protocol communication.
TTL
SMBDATA
PWRGD
2
3
I
-
This pin indicates that the host system’s power, including the Core Logic chipsets, is stable. Before the host
system’s power is stable, this input pin will tri-state all the output pins from OZ992.
EOI#
4
I
TTL
-
End of Interrupt
The embedded controller will signify the OZ992 when the activated SCI has been serviced. This pin is to be
used with EC master mode only.
GPIO[17:16]
[6:5]
I/O
TTL
4mA
General Purpose I/Os
Fully programmable GPIOs that can be used for a variety of dedicated or specific functions. Pins GPIO[17:16]
default as inputs. They are programmable to function as either GPI[17:16] inputs or GPO[17:16] outputs. Refer
to GPIO[19:16] Config.1&2 Registers for more details and GPIO Config. Tables (section 5.0) for input/output
selections.
GPIO[19:18] /
TEST[1:0]
[8:7]
I/O
TTL
4mA
General Purpose I/Os
Fully programmable GPIOs that can be used for a variety of dedicated or specific functions. Pins
GPIO[19:18]/TEST[1:0] default as inputs. They are programmable to function as either GPI[19:18] inputs or
GPO[19:18] outputs. Refer to GPIO[19:16] Config.1&2 Registers for more details and GPIO Config. Tables
(section 5.0) for input/output selections.
During regular usage, pull-ups of 47KΩ should be connected to GPIO[19:18]/TEST[1:0] to ensure the regular
OZ992 operation. Alternative uses for GPIO[19:18] are as TEST[1:0], which provide 2 proprietary OZ992 test
modes.
OZ992-SF-1.7
Page 2
OZ992
Name
GPIO[0]/
SMIEVENT
Pin No.
Type
I/O
Input
TTL
Drive
4mA
Definition
9
General Purpose I/O /
SMIEVENT
Fully programmable GPIOs that can be used for a variety of dedicated or specific functions. Pin GPIO[0] has
SMIEVENT output as an alternate function. GPIO[0] defaults. It is also programmable to function as GPI[0]
input, GPO[0]output, ALF[0] output, or ID[0] input. Refer to GPIO Config.1&2 Registers for more details and
GPIO Config. Tables (section 5.0) for input/output selections.
GPIO[1]
10
I/O
TTL
4mA
General Purpose I/O
Fully programmable GPIO that can be used for a variety of dedicated or specific functions. GPIO[1] pin defaults
as input. It is also programmable to function as GPI[1] input, GPO[1]output, ALF[1] output, or ID[1] input. Refer
to GPIO Config.1&2 Registers for more details and GPIO Config. Tables (section 5.0) for input/output
selections.
GPIO[2]/
SMBALERT#
11
I/O
TTL
4mA
General Purpose I/O /
SMBALERT#
Fully programmable GPIO that can be used for a variety of dedicated or specific functions. Pin GPIO[2] defaults
as input. This pin, when programmed as an alternate function, can generate the SMBALERT# interrupt.
SMBALERT# is an interrupt service request signal to the SMBus Host which can be generated by all devices
connected to the OZ992. Pin GPIO[2]/SMBALERT# is also programmable to function as either GPI[2] input,
GPO[2] output, ALF[2] output, or ID[2] input. Refer to GPIO Config.1&2 Registers for more details and GPIO
Config. Tables (section 5.0) for I/O selections.
GPIO[7:3]
[17:15],
[13:12]
I/O
TTL
4mA
General Purpose I/Os
Fully programmable GPIOs that can be used for a variety of dedicated or specific functions. GPIO[7:3] pins
default as inputs. They are programmable to function as GPI[7:3] inputs, GPO[7:3] outputs, ALF[7:3] outputs,
or ID[7:3] inputs. Refer to GPIO Config.1&2 Registers for more details and GPIO Config. Tables (section 5.0)
for input/output selections.
GPIO[15:8]
RESETN
[25:18]
I/O
TTL
4mA
General Purpose I/Os
Fully programmable GPIOs that can be used for a variety of dedicated or specific functions. Pins GPIO[15:8]
default as inputs. Pins GPIO[15:8] as inputs are programmable to generate SMI/SMB interrupts. They are also
programmable to function as GPI[15:8] inputs, GPO[15:8] outputs. Refer to GPIO Config.1&2 Registers for
more details and GPIO Config. Tables (section 5.0) for input/output selections.
26
I
TTL
-
Reset
OZ992 hardware reset. RESETN(active LOW) resets all registers to their default values. This pin is connected
to the RC delay from the power supplied to OZ992.
32KHz
GND
27
I
TTL
-
-
-
32KHz Clock Input
32KHz Clock Input.
14
Ground.
28
GND
PWR
-
-
Ground
VCC
3.3V/5V Power Supply
3.3V or 5V Power Supply.
GPIO Pins Alternate Usage
19
16 15
8 7
0
GPIO[19:0]
SMIEVENT/SMBALERT#
SCI to Embedded Controller
OZ992-SF-1.7
Page 3
OZ992
DC CHARACTERISTICS
DC TABLE FOR VCC = 5.0V r 10%
Symbol
VCC
VIH
Parameter
Power Supply Voltage
Input HIGH Voltage
Input LOW Voltage
Output HIGH Voltage
Output LOW Voltage
Min
4.5
3.5
-
2.4
-
Max
5.5
-
1.5
-
0.4
10
10
Units
V
V
V
V
V
µA
µA
VIl
VOH
VOL
IIL
Maximum Input Leakage Current
Maximum Output Leakage
-10
-10
IOL
DC TABLE FOR VCC = 3.3V r 10%
Symbol
VCC
VIH
Parameter
Power Supply Voltage
Input HIGH Voltage
Min
3.0
2.3
-
Max
3.6
-
Units
V
V
VIl
Input LOW Voltage
1
V
VOH
VOL
IIL
Output HIGH Voltage
Output LOW Voltage
Maximum Input Leakage Current
Maximum Output Leakage
2.4
-
-10
-10
-
V
V
µA
µA
0.4
10
10
IOL
CAPACITANCE
Symbol
Parameter
Units
pF
pF
0 qC to 70qC
CIN
COUT
CIO
Maximum Input Capacitance
Maximum Output Capacitance
Maximum I/O Capacitance
10
10
10
pF
ABSOLUTE MAXIMUM RATINGS
Symbol
VCC
VIN, VOUT
IIN
Parameter
DC Power Supply Voltage
DC Input, Output Voltage
DC Current Drain VDD and VSS
Pins
Value
3.0 to 3.6
-0.3 to VDD + 0.3
Units
V
V
±10
mA
TSTG
TOPER|
°C
°C
Storage Temperature
Operation Temperature
-40 to +125
0 to 70
ICC SPECIFICATIONS
Symbol
Parameter
Supply Current
Typ
50
Max
60
Units
µA
ICC
OZ992-SF-1.7
Page 4
OZ992
OZ992 PACKAGE INFORMATION
DIM
INCHES
MIN MAX
0.084
MILLIMETERS
MIN
MAX
A
2.13
SSOP
PACKAGE
(209 mil)
A1 0.002 0.010
0.05
0.22
0.09
9.90
5.00
0.25
0.38
0.20
10.50
5.60
B
C
D
E
e
0.009 0.015
0.004 0.008
0.390 0.413
0.197 0.220
0.0256
E
H
0.65
H
L
α
0.291 0.323
0.025 0.041
7.40
0.63
0°
8.20
1.03
8°
0°
8°
e
D
C
A
B
D
A1
L
OZ992-SF-1.7
Page 5
