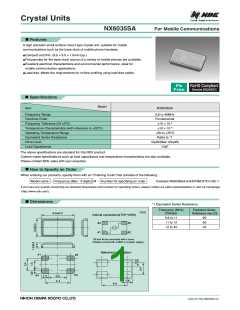

Crystal Units
For Mobile Communications
NX6035SA
Features
n
A high precision small surface-mount type crystal unit, suitable for mobile
communications such as the base clock of mobile phone handsets.
Compact and thin. (6.0 ꢁ 3.5 ꢁ 1.0mm typ.)
l
l
Frequencies for the base clock source of a variety of mobile phones are available.
Excellent electrical characteristics and environmental performance, ideal for
l
mobile communication applications.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
l
Pb
Free
Specifications
n
Model
NX6035SA
Item
Frequency Range
9.8 to 40MHz
Fundamental
Overtone Order
−6
Frequency Tolerance (25 3ꢀ)
10 ꢁ 10
−6
Temperature Characteristics (with reference to +25°C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
10 ꢁ 10
−20 to +75ꢀ
Refer to *1
10μW(Max:100μW)
12pF
Load Capacitance
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
How to Specify an Order
n
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits) M - Number for specifying an order
Example NX6035SA-9.84375M-STD-CSE-1
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/).
Dimensions
n
*1 Equivalent Series Resistance
Frequency (MHz)
Equivalent Series
mm
6.0 0.2
(Range)
Resistance max.[Ω]
Internal connections(TOP VIEW)
9.8 to 11
11 to 12
12 to 40
60
50
40
#4
#1
#3
#2
*#2 and #4 are connected with a cover.
(Please connect with a GND or a power supply.)
Reference land pattern
#1
#2
#3
#4
1.4
3.0
4.4
1.8
4.4
cu32_071108_NX6035SA_e1
