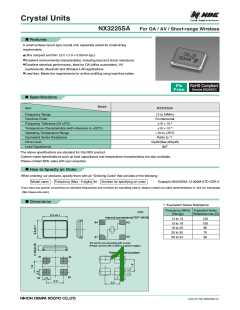

Crystal Units
For OA / AV / Short-range Wireless
NX3225SA
Features
n
A small surface-mount type crystal unit, especially suited for small-sizing
requirements.
Ultra compact and thin. (3.2 ꢁ 2.5 ꢁ 0.55mm typ.)
l
l
Excellent environmental characteristics, including heat and shock resistance.
l
Excellent electrical performance, ideal for OA (office automation), AV
(audiovisual), Bluetooth and Wireless LAN applications.
l
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
Pb
Free
Specifications
n
Model
NX3225SA
Item
Frequency Range
12 to 54MHz
Fundamental
Overtone Order
−6
Frequency Tolerance (25 3ꢀ)
15 ꢁ 10
−6
Temperature Characteristics (with reference to +25°C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
15 ꢁ 10
−10 to +75ꢀ
Refer to *1
10μW(Max:200μW)
8pF
Load Capacitance
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
How to Specify an Order
n
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits) M - Number for specifying an order Example NX3225SA-12.000M-STD-CSR-3
-
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/).
Dimensions
n
*1 Equivalent Series Resistance
Frequency (MHz) Equivalent Series
mm
Internal connections(TOP VIEW)
#3
(Range)
12 to 13
13 to 16
16 to 20
20 to 30
30 to 54
Resistance max.[Ω]
3.2 0.1
120
100
80
70
50
#4
#1
#2
*#2 and #4 are connected with a cover.
(Please connect with a GND or a power supply.)
Reference land pattern
#1
#2
#3
1.4
2.2
#4 1.0
2.2
cu22_071108_NX3225SA_e1
