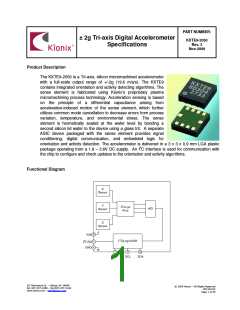

PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Product Description
The KXTE9-2050 is a Tri-axis, silicon micromachined accelerometer
with a full-scale output range of +/-2g (19.6 m/s/s). The KXTE9
contains integrated orientation and activity detecting algorithms. The
sense element is fabricated using Kionix’s proprietary plasma
micromachining process technology. Acceleration sensing is based
on the principle of a differential capacitance arising from
acceleration-induced motion of the sense element, which further
utilizes common mode cancellation to decrease errors from process
variation, temperature, and environmental stress. The sense
element is hermetically sealed at the wafer level by bonding a
second silicon lid wafer to the device using a glass frit. A separate
ASIC device packaged with the sense element provides signal
conditioning, digital communication, and embedded logic for
orientation and activity detection. The accelerometer is delivered in a 3 x 3 x 0.9 mm LGA plastic
package operating from a 1.8 – 3.6V DC supply. An I2C interface is used for communication with
the chip to configure and check updates to the orientation and activity algorithms.
Functional Diagram
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 1 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Product Specifications
Table 1. Mechanical
(specifications are for operation at 3.3V and T = 25C unless stated otherwise)
Parameters
Operating Temperature Range
Zero-g Offset
Units
ºC
Min
Typical
Max
-
-40
85
counts
mg
32
0
Zero-g Offset Accuracy
Zero-g Offset Variation from RT over Temp.
Sensitivity
-175
-10
+175
+10
mg/ºC
counts/g
%
0.6
16
0
Sensitivity Accuracy
0.01 (xy)
0.03 (z)
0.1
Sensitivity Variation from RT over Temp.
%/ºC
Non-Linearity
% of FS
%
Cross Axis Sensitivity
Resolution
2
mg
62.5
Table 2. Electrical
(specifications are for operation at 3.3V and T = 25C unless stated otherwise)
Parameters
Supply Voltage (Vdd)1 Operating
I/O Pads Supply Voltage (VIO)1
Units
Min
Typical
Max
V
V
1.8
1.7
3.3
3.6
Vdd
Operating (full power)
20
30
40
Current Consumption
µA
Standby
-
0.1
Output Low Voltage2
Output High Voltage
Input Low Voltage
Input High Voltage
V
V
-
-
0.3 * Vio
0.9 * Vio
-
-
-
V
-
-
0.2 * Vio
-
V
0.8 * Vio
Input Pull-down Current
Power Up Time3
I2C Communication Rate
Output Data Rate (ODR)4
Bandwidth (-3dB)
0
µA
ms
kHz
Hz
Hz
50.5
400
40
1 NaN
2000
Notes:
1. Minimum voltage supply of 1.65V can be used over a reduced operating
temperature range of 0ºC to 45ºC.
2. Assuming minimum 1.5Kohm I2C pull-up resistor on SCL and SDA.
3. Power up time is to Vdd = valid and device is in active mode.
4. User selectable through I2C.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 2 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Table 3. Environmental
Parameters
Units
V
Min
-0.3
-40
Typical
Max
6.0
Supply Voltage (Vdd) Absolute Limits
Operating Temperature Range
Storage Temperature Range
-
-
-
ºC
85
ºC
-55
150
5000 for 0.5ms
10000 for 0.2ms
Mech. Shock (powered and unpowered)
g
-
-
-
-
ESD
HBM
V
2000
Caution: ESD Sensitive and Mechanical Shock Sensitive Component, improper handling
can cause permanent damage to the device.
This product conforms to Directive 2002/95/EC of the European Parliament and of the
Council of the European Union (RoHS). Specifically, this product does not contain lead,
mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), or
polybrominated diphenyl ethers (PBDE) above the maximum concentration values
(MCV) by weight in any of its homogenous materials. Homogenous materials are "of
uniform composition throughout."
This product is halogen-free per IEC 61249-2-21. Specifically, the materials used in this
HF product contain a maximum total halogen content of 1500 ppm with less than 900-ppm
bromine and less than 900-ppm chlorine.
Soldering
Soldering recommendations are available upon request or from www.kionix.com.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 3 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Application Schematic
SDA
10
SCL
INT
9
8
7
1
2
3
IO Vdd
KXTE9
4
6
5
C1
Vdd
Table 4. KXTE9 Pin Descriptions
Pin
Name
Description
IO Vdd
The power supply input for the digital communication bus
Not Connected internally – may be connected to Vdd or GND
Not Connected internally – may be connected to Vdd or GND
Ground
1
2
NC
NC
3
4
GND
5
The power supply input. Decouple this pin to ground with a 0.1uF ceramic capacitor.
Not Connected internally – may be connected to Vdd or GND
Interrupt pin (Reports user-defined state changes)
Vdd
NC
6
7
INT
NC
8
Not Connected internally – may be connected to Vdd or GND
I2C Serial Clock (requires 1.5kΩ pull-up resistor)
9
SCL
SDA
I2C Serial Data (requires 1.5kΩ pull-up resistor)
10
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 4 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Test Specifications
!
Special Characteristics:
These characteristics have been identified as being critical to the customer. Every part is tested to verify
its conformance to specification prior to shipment.
Table 5. Test Specifications
Parameter
Zero-g Offset @ RT
Sensitivity @ RT
Specification
32 +/- 2.8 counts
Test Conditions
25C, Vdd = 3.3 V
16 +/- 1.6 counts/g 25C, Vdd = 3.3 V
Current Consumption -- Operating 20 <= Idd <= 40 uA 25C, Vdd = 3.3 V
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 5 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Package Dimensions and Orientation
3 x 3 x 0.9 mm LGA
All dimensions and tolerances conform to ASME Y14.5M-1994
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 6 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Orientation
+Y
Pin 1
+X
+Z
When device is accelerated in +X, +Y or +Z direction, the corresponding output will increase.
Static X/Y/Z Output Response versus Orientation to Earth’s surface (1g):
Up State
(Y+)
Right State Down State
(X+) (Y-)
Left State
(X-)
Face-Up
State (Z+)
Face-Down
State (Z-)
Position
Position
1
2
3
4
5
6
Diagram
Top
Bottom
Bottom
Top
X
Y
Z
32 counts 48 counts 32 counts 16 counts 32 counts 32 counts
48 counts 32 counts 16 counts 32 counts 32 counts 32 counts
32 counts 32 counts 32 counts 32 counts 48 counts 16 counts
X-Polarity
Y-Polarity
Z-Polarity
0
+
0
+
0
0
0
-
0
-
0
0
0
0
+
0
0
-
(1-g)
Earth’s Surface
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 7 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
KXTE9 Digital Interface
The Kionix KXTE9 digital accelerometer has the ability to communicate over an I2C digital serial interface
bus. This flexibility eases system integration by eliminating analog-to-digital converter requirements and by
providing direct communication with system micro-controllers.
The serial interface terms and descriptions indicated in Table 6 below will be observed throughout this
document.
Term
Transmitter
Receiver
Master
Description
The device that transmits data to the bus.
The device that receives data from the bus.
The device that initiates a transfer, generates clock signals and terminates a transfer.
The device addressed by the Master.
Slave
Table 6. Serial Interface Terminologies
I2C Serial Interface
The KXTE9 has the ability to communicate on an I2C bus. I2C is primarily used for synchronous serial
communication between a Master device and one or more Slave devices. The Master, typically a micro
controller, provides the serial clock signal and addresses Slave devices on the bus. The KXTE9 always
operates as a Slave device during standard Master-Slave I2C operation.
I2C is a two-wire serial interface that contains a Serial Clock (SCL) line and a Serial Data (SDA) line. SCL
is a serial clock that is provided by the Master, but can be held low by any Slave device, putting the Master
into a wait condition. SDA is a bi-directional line used to transmit and receive data to and from the
interface. Data is transmitted MSB (Most Significant Bit) first in 8-bit per byte format, and the number of
bytes transmitted per transfer is unlimited. The I2C bus is considered free when both lines are high.
I2C Operation
Transactions on the I2C bus begin after the Master transmits a start condition (S), which is defined as a
high-to-low transition on the data line while the SCL line is held high. The bus is considered busy after this
condition. The next byte of data transmitted after the start condition contains the Slave Address (SAD) in
the seven MSBs (Most Significant Bits), and the LSB (Least Significant Bit) tells whether the Master will be
receiving data ‘1’ from the Slave or transmitting data ‘0’ to the Slave. When a Slave Address is sent, each
device on the bus compares the seven MSBs with its internally-stored address. If they match, the device
considers itself addressed by the Master. The Slave Address associated with the KXTE9 is 0001111.
It is mandatory that receiving devices acknowledge (ACK) each transaction. Therefore, the transmitter
must release the SDA line during this ACK pulse. The receiver then pulls the data line low so that it
remains stable low during the high period of the ACK clock pulse. A receiver that has been addressed,
whether it is Master or Slave, is obliged to generate an ACK after each byte of data has been received. To
36 Thornwood Dr. – Ithaca, NY 14850
© 2009 Kionix – All Rights Reserved
tel: 607-257-1080 – fax:607-257-1146
091104-02
www.kionix.com - info@kionix.com
Page 8 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
conclude a transaction, the Master must transmit a stop condition (P) by transitioning the SDA line from low
to high while SCL is high. The I2C bus is now free.
Writing to a KXTE9 8-bit Register
Upon power up, the Master must write to the KXTE9’s control registers to set its operational mode.
Therefore, when writing to a control register on the I2C bus, as shown Sequence 1 on the following page,
the following protocol must be observed: After a start condition, SAD+W transmission, and the KXTE9
ACK has been returned, an 8-bit Register Address (RA) command is transmitted by the Master. This
command is telling the KXTE9 to which 8-bit register the Master will be writing the data. Since this is I2C
mode, the MSB of the RA command should always be zero (0). The KXTE9 acknowledges the RA and the
Master transmits the data to be stored in the 8-bit register. The KXTE9 acknowledges that it has received
the data and the Master transmits a stop condition (P) to end the data transfer. The data sent to the
KXTE9 is now stored in the appropriate register. The KXTE9 automatically increments the received RA
commands and, therefore, multiple bytes of data can be written to sequential registers after each Slave
ACK as shown in Sequence 2 on the following page.
Reading from a KXTE9 8-bit Register
When reading data from a KXTE9 8-bit register on the I2C bus, as shown in Sequence 3 on the next page,
the following protocol must be observed: The Master first transmits a start condition (S) and the
appropriate Slave Address (SAD) with the LSB set at ‘0’ to write. The KXTE9 acknowledges and the
Master transmits the 8-bit RA of the register it wants to read. The KXTE9 again acknowledges, and the
Master transmits a repeated start condition (Sr). After the repeated start condition, the Master addresses
the KXTE9 with a ‘1’ in the LSB (SAD+R) to read from the previously selected register. The Slave then
acknowledges and transmits the data from the requested register. The Master does not acknowledge
(NACK) it received the transmitted data, but transmits a stop condition to end the data transfer. Note that
the KXTE9 automatically increments through its sequential registers, allowing data to be read from multiple
registers following a single SAD+R command as shown below in Sequence 4 on the following page.
If a receiver cannot transmit or receive another complete byte of data until it has performed some other
function, it can hold SCL low to force the transmitter into a wait state. Data transfer only continues when
the receiver is ready for another byte and releases SCL.
36 Thornwood Dr. – Ithaca, NY 14850
© 2009 Kionix – All Rights Reserved
tel: 607-257-1080 – fax:607-257-1146
091104-02
www.kionix.com - info@kionix.com
Page 9 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Data Transfer Sequences
The following information clearly illustrates the variety of data transfers that can occur on the I2C bus and
how the Master and Slave interact during these transfers. Table 7 defines the I2C terms used during the
data transfers.
Term
S
Definition
Start Condition
Sr
Repeated Start Condition
Slave Address
SAD
W
Write Bit
R
Read Bit
ACK
NACK
RA
Acknowledge
Not Acknowledge
Register Address
Transmitted/Received Data
Stop Condition
Data
P
Table 7. I2C Terms
Sequence 1. The Master is writing one byte to the Slave.
Master
Slave
S
SAD + W
RA
DATA
P
ACK
ACK
ACK
Sequence 2. The Master is writing multiple bytes to the Slave.
Master
Slave
S
SAD + W
RA
DATA
DATA
P
ACK
ACK
ACK
ACK
Sequence 3. The Master is receiving one byte of data from the Slave.
Master
Slave
S
SAD + W
RA
Sr SAD + R
NACK
P
ACK
ACK
ACK DATA
Sequence 4. The Master is receiving multiple bytes of data from the Slave.
Master
Slave
S
SAD + W
RA
Sr SAD + R
ACK
NACK
P
ACK
ACK
ACK DATA
DATA
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 10 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
KXTE9 Embedded Registers
The KXTE9’s 23 embedded 8-bit registers that are accessible via I2C are listed in Table 8.
Type
Address
Register Name
CT_RESP
Read/Write
Hex
0x0C
Binary
R
-
0000 1100
0000 1101
0000 1110
0000 1111
0001 0000
0001 0001
0001 0010
0001 0011
0001 0100
0001 0101
0001 0110
0001 0111
0001 1000
0001 1001
0001 1010
0001 1011
0001 1100
0001 1101
0001 1110
0001 1111
-
Reserved
0x0D
Reserved
-
0x0E
WHO_AM_I
TILT_POS_CUR
TILT_POS_PRE
XOUT
R
0x0F
R
0x10
R
0x11
R
0x12
YOUT
R
0x13
ZOUT
R
0x14
Not Used
-
0x15
INT_SRC_REG1
INT_SRC_REG2
STATUS_REG
Not Used
R
0x16
R
0x17
R
0x18
-
0x19
INT_REL
R
0x1A
CTRL_REG1
CTRL_REG2
CTRL_REG3
INT_CTRL_REG1
INT_CTRL_REG2
Not Used
R/W
R/W
R/W
R/W
R/W
-
0x1B
0x1C
0x1D
0x1E
0x1F
0x20 – 0x27
0x28
TILT_TIMER
WUF_TIMER
B2S_TIMER
Reserved
R/W
R/W
R/W
-
0010 1000
0010 1001
0010 1010
-
0x29
0x2A
0x2B – 0x59
0x5A
WUF_THRESH
B2S_THRESH
TILT_ANGLE
Reserved
R/W
R/W
R/W
-
0101 1010
0101 1011
0101 1010
-
0x5B
0x5C
0x5D – 0x5E
0x5F
HYST_SET
R/W
0101 1111
Table 8. KXTE9 Register Map
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 11 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
KXTE9 Register Descriptions
CT_RESP
This register has a byte value of 0x55h except when the CTC bit in CTRL_REG3 is set, this value is
set to 0xAAh. The byte value is returned to 0x55h after each reading.
R
R
R
R
R
R
R
R
STR7
Bit7
STR6
Bit6
STR5
Bit5
STR4
Bit4
STR3
Bit3
STR2
Bit2
STR1
Bit1
I2C Address: 0x0Ch
STR0
Bit0
Reset Value
01010101
WHO_AM_I
This register can be used for supplier recognition, as it can be factory written to a known byte value.
The default value is 0x00h.
R
R
R
R
R
R
R
R
WIA7
Bit7
WIA6
Bit6
WIA5
Bit5
WIA4
Bit4
WIA3
Bit3
WIA2
Bit2
WIA1
Bit1
I2C Address: 0x0Fh
WIA0
Bit0
Reset Value
00000000
Tilt Position Registers
These two registers report previous and current position data that is updated at the user-defined
ODR frequency and is protected during register read. Table 9 describes the reported position for
each bit value
TILT_POS_CUR
Current tilt position register
R
0
R
0
R
R
RI
R
R
R
R
Reset Value
00100000
LE
DO
Bit3
UP
Bit2
FD
Bit1
FU
Bit0
Bit7
Bit6
Bit5
Bit4
I2C Address: 0x10h
TILT_POS_PRE
Previous tilt position register
R
0
R
0
R
R
RI
R
R
R
R
Reset Value
00100000
LE
Bit5
DO
Bit3
UP
Bit2
FD
Bit1
FU
Bit0
Bit7
Bit6
Bit4
I2C Address: 0x11h
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 12 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Bit
LE
RI
Description
Left State (X-)
Right State (X+)
Down State (Y-)
Up State (Y+)
DO
UP
FD
FU
Face-Down State (Z-)
Face-Up State (Z+)
Table 9. KXTE9 Tilt Position
Accelerometer Outputs
These registers contain 6-bits of valid acceleration data for each axis. The data is updated every
ODR period and can be converted from digital counts to acceleration (g) using Equation 1.
Acceleration (g) = (Output (counts) – 0g Offset (counts)) / Sensitivity (counts/g)
Equation 1. Acceleration (g) Calculation
XOUT
X-axis acceleration output (6-bit valid and updated every ODR period)
R
R
R
R
R
R
R
X
R
X
XOUTD5 XOUTD4 XOUTD3 XOUTD2 XOUTD1 XOUTD0
Bit7
YOUT
R
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
I2C Address: 0x12h
Y-axis acceleration output (6-bit valid and updated every ODR period)
R
R
R
R
R
R
X
R
X
YOUTD5 YOUTD4 YOUTD3 YOUTD2 YOUTD1 YOUTD0
Bit7
ZOUT
R
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
I2C Address: 0x13h
Z-axis acceleration output (6-bit valid and updated every ODR period)
R
R
R
R
R
R
X
R
X
ZOUTD5 ZOUTD4 ZOUTD3 ZOUTD2 ZOUTD1 ZOUTD0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2
Bit1
Bit0
I2C Address: 0x14h
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 13 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Interrupt Source Registers
These two registers report function state changes. Data may be updated at every ODR period.
INT_SRC_REG1
This register reports which function caused an interrupt.
R
0
R
0
R
0
R
0
R
0
R
R
R
B2SS
Bit2
WUFS
Bit1
TPS
Bit0
Bit7
Bit6
Bit5
Bit4
Bit3
I2C Address: 0x16h
B2SS reflects the status of the inactivity/back to sleep function.
B2SS = 0 – activity state has not changed to inactive
B2SS = 1 – activity state has changed to inactive
WUFS reflects the status of the activity/wake up function.
WUFS = 0 – activity state has not changed to active
WUFS = 1 – activity state has changed to active
TPS reflects the status of the tilt position function.
TPS = 0 – tilt position state has not changed
TPS = 1 - tilt position state has changed
INT_SRC_REG2
This register reports which axis and direction caused the activity state to transition from
inactive to active per Table 10.
R
0
R
0
R
R
R
R
R
R
ALE
Bit5
ARI
Bit4
ADO
Bit3
AUP
Bit2
AFD
Bit1
AFU
Bit0
Bit7
Bit6
I2C Address: 0x17h
Bit
Description
ALE
ARI
X Negative (X-) Reported
X Positive (X+) Reported
Y Negative (Y-) Reported
Y Positive (Y+) Reported
Z Negative (Z-) Reported
Z Positive (Z+) Reported
ADO
AUP
AFD
AFU
Table 10. KXTE9 Activity Reporting
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 14 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
STATUS_REG
This register reports the state of the interrupt and the status of information pertaining to the ODR
setting.
R
0
R
0
R
R
R
R
R
0
R
0
DOR
Bit5
INT
Bit4
SODRA SODRB
Bit3 Bit2
Bit7
Bit6
Bit1
Bit0
I2C Address: 0x18h
DOR (output data overrun) bit is released after the next output data register read
DOR = 0 – no data overrun
DOR = 1 – data is overrun
INT reports the combined interrupt information of all enabled functions. This bit is
released to 0 when the interrupt release register (1Ah) is read.
INT = 0 – no interrupt event
INT = 1 – interrupt event has occurred
SODRA reports the status of the current ODRA setting that is being used.
SODRB reports the status of the current ODRB setting that is being used.
INT_REL
Latched interrupt source information is cleared and the physical interrupt latched pin (7) is set to the
inactive state when this register is read.
R
X
R
X
R
X
R
X
R
X
R
X
R
X
R
X
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
I2C Address: 0x1Ah
CTRL_REG1
Read/write control register that controls the main feature set.
R/W
PC1
Bit7
R/W
0
R/W
0
R/W
ODRA
Bit4
R/W
ODRB
Bit3
R/W
B2SE
Bit2
R/W
WUFE
Bit1
R/W
TPE
Bit0
Reset Value
00000000
Bit6
Bit5
I2C Address: 0x1Bh
PC1 controls the operating mode of the KXTE9.
PC1 = 0 - stand-by mode
PC1 = 1 - operating mode
ODRA sets the initial output data rate per Table 11.
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 15 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
ODRB sets the initial output data rate per Table 11.
ODRA
ODRB
Output Data Rate
0
0
1
1
0
1
0
1
1Hz
3Hz
10Hz
40Hz
Table 11. Initial Output Data Rate
B2SE enables the Back To Sleep function that will detect a transition from active mode to
inactive mode.
B2SE = 0 - disable
B2SE = 1- enable
WUFE enables the Wake Up function that will detect a transition from inactive mode to
active mode.
WUFE = 0 - disable
WUFE = 1- enable
TPE enables the Tilt Position function that will detect changes in device orientation.
TPE = 0 - disable
TPE = 1- enable
CTRL_REG2
Read/write control register that controls tilt position state masking. Per Table 12, if a state’s bit is
set to one (1), the state change will generate an interrupt. If it is set to zero (0), the state change
will not generate an interrupt.
R/W
0
R/W
0
R/W
LEM
Bit5
R/W
RIM
Bit4
R/W
DOM
Bit3
R/W
UPM
Bit2
R/W
FDM
Bit1
R/W
FUM
Bit0
Reset Value
00111111
Bit7
Bit6
I2C Address: 0x1Ch
Bit
Description
Left State Mask
Right State Mask
Down State Mask
Up State Mask
LEM
RIM
DOM
UPM
FDM
FUM
Face-Down State Mask
Face-Up State Mask
Table 12. Tilt Position State Mask
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 16 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
CTRL_REG3
Read/write control register that provides more feature set control.
R/W
SRST
Bit7
R/W
0
R/W
0
R/W
CTC
Bit4
R/W
OB2SA OB2SB OWUFA OWUFB
Bit3 Bit2 Bit1 Bit0
I2C Address: 0x1Dh
R/W
R/W
R/W
Reset Value
00000110
Bit6
Bit5
SRST initiates software reset, which returns the internal RAM to Kionix default values.
This bit will remain high (1) for approximately 50 ms until the RAM load is finished.
SRST = 0 - no action or software reset has finished
SRST = 1 - start software reset
CTC initiates the communication-test function.
CTC = 0 - no action
CTC = 1 - sets CT_RESP register to 0xAAh and when CT_RESP is read, sets this
bit to 0 and sets CT_RESP to 0x55h
OB2SA sets the output data rate when in the inactive mode per Table 13.
OB2SB sets the output data rate when in the inactive mode per Table 13.
OB2SA
OB2SB
Output Data Rate
0
0
1
1
0
1
0
1
1Hz
3Hz
10Hz
40Hz
Table 13. Inactive Mode Output Data Rate
OWUFA sets the output data rate when in the active mode per Table 14.
OWUFB sets the output data rate when in the active mode per Table 14.
OWUFA
OWUFB
Output Data Rate
0
0
1
1
0
1
0
1
1Hz
3Hz
10Hz
40Hz
Table 14. Active Mode Output Data Rate
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 17 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
INT_CTRL_REG1
This register controls the settings for the physical interrupt pin (7).
R/W
0
R/W
0
R/W
0
R/W
IEN
Bit4
R/W
IEA
Bit3
R/W
IEL
R/W
0
R/W
0
Reset Value
00001000
Bit7
Bit6
Bit5
Bit2
Bit1
Bit0
I2C Address: 0x1Eh
IEN enables/disables the physical interrupt pin (7)
IEN = 0 - physical interrupt pin (7) is disabled
IEN = 1 - physical interrupt pin (7) is enabled
IEA sets the polarity of the physical interrupt pin (7)
IEA = 0 - polarity of the physical interrupt pin (7) is active low
IEA = 1 - polarity of the physical interrupt pin (7) is active high
IEL sets the response of the physical interrupt pin (7)
IEL = 0 - the physical interrupt pin (7) latches until it is cleared by reading INT_REL
IEL = 1 - the physical interrupt pin (7) will transmit one pulse with a period of 0.05 ms
INT_CTRL_REG2
This register controls activity/inactivity state masking. Per Table 15, if a state’s bit is set to one (1),
the state change will generate an interrupt. If it is set to zero (0), the state change will not generate
an interrupt.
R/W
XBW
Bit7
R/W
YBW
Bit6
R/W
ZBW
Bit5
R/W
0
R/W
0
R/W
0
R/W
0
R/W
0
Reset Value
11100000
Bit4
Bit3
Bit2
Bit1
Bit0
I2C Address: 0x1Fh
Bit
Description
XBW
YBW
ZBW
X-Axis State Mask
Y-Axis State Mask
Z-Axis State Mask
Table 15. Activity/Inactivity State Mask
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 18 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
TILT_TIMER
This register is the programmable count register for the tilt position state timer (0 to 255 counts).
Every count is calculated as 1/ODR delay period. A new state must be valid as many measurement
periods before the change is accepted.
R/W
TSC7
Bit7
R/W
TSC6
Bit6
R/W
TSC5
Bit5
R/W
TSC4
Bit4
R/W
TSC3
Bit3
R/W
TSC2
Bit2
R/W
TSC1
Bit1
R/W
TSC0
Bit0
Reset Value
00000000
I2C Address: 0x28h
WUF_TIMER
This register is the programmable count register for the inactivity to activity timer (0 to 255 counts).
Every count is calculated as 1/ODR delay period. A new state must be valid as many measurement
periods before the change is accepted.
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Reset Value
00000000
WUFC7 WUFC6 WUFC5 WUFC4 WUFC3 WUFC2 WUFC1 WUFC0
Bit2
Bit7
Bit6
Bit5
Bit4
Bit3
Bit1
Bit0
I2C Address: 0x29h
B2S_TIMER
This register is the programmable count register for the activity to inactivity timer (0 to 255 counts).
Every count is calculated as 16*(1/ODR) delay period. A new state must be valid as many
measurement periods before the change is accepted.
R/W
B2SC7 B2SC6 B2SC5 B2SC4 B2SC3 B2SC2 B2SC1 B2SC0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
I2C Address: 0x2Ah
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Reset Value
00000000
WUF_THRESH
This register sets the WUF Threshold that is used to detect the transition from inactivity to activity.
The KXTE9 ships from the factory with WUF_THRESH set to a change in acceleration of 0.5g.
R/W
WUFTH7 WUFTH6 WUFTH5 WUFTH4 WUFTH3 WUFTH2 WUFTH1 WUFTH0
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
I2C Address: 0x5Ah
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Reset Value
00100000
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 19 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
B2S_THRESH
This register sets the B2S Threshold that is used to detect the transition from activity to inactivity.
The KXTE9 ships from the factory with B2S_THRESH set to a change in acceleration of 1.5g.
R/W
R/W
Bit6
R/W
Bit5
R/W
Bit4
R/W
Bit3
R/W
Bit2
R/W
R/W
Reset Value
01100000
B2STH7 B2STH6 B2STH5 B2STH4 B2STH3 B2STH2 B2STH1 B2STH0
Bit7
Bit1
Bit0
I2C Address: 0x5Bh
TILT_ANGLE
This register sets the tilt angle that is used to detect the transition from Face-up/Face-down states
to Screen Rotation states. The KXTE9 ships from the factory with tilt angle set to a low threshold of
26°from horizontal. A different default tilt angle can be requested from the factory. Note that the
minimum suggested tilt angle is 10°.
R/W
TA7
Bit7
R/W
TA6
Bit6
R/W
TA5
Bit5
R/W
TA4
Bit4
R/W
TA3
Bit3
R/W
TA2
Bit2
R/W
TA1
Bit1
R/W
TA0
Bit0
Reset Value
00011100
I2C Address: 0x5Ch
HYST_SET
This register sets the Hysteresis that is placed in between the Screen Rotation states. The KXTE9
ships from the factory with HYST_SET set to +/-15°of hysteresis. A different default hysteresis can
be requested from the factory. Note that when writing a new value to this register the current
values of RES0 and RES1 must be preserved. These values are set at the factory and must not
change.
R/W
RES1
Bit7
R/W
RES0
Bit6
R/W
0
R/W
0
R/W
HYST3
Bit3
R/W
HYST2
Bit2
R/W
HYST1
Bit1
R/W
HYST0
Bit0
Reset Value
--001000
Bit5
Bit4
I2C Address: 0x5Fh
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 20 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
KXTE9 Embedded Applications
Orientation Detection Feature
The orientation detection feature of the KXTE9 will report changes in face up, face down, vertical and
horizontal orientation. This intelligent embedded algorithm considers very important factors that provide
accurate orientation detection from low cost tri-axis accelerometers. Factors such as: hysteresis, device
orientation angle and delay time are described below as these techniques are utilized inside the KXTE9.
Hysteresis
A 45° tilt angle threshold seems like a good choice because it is halfway between 0° and 90°.
However, a problem arises when the user holds the device near 45°. Slight vibrations, noise and
inherent sensor error will cause the acceleration to go above and below the threshold rapidly and
randomly, so the screen will quickly flip back and forth between the 0° and the 90° orientations.
This problem is avoided in the KXTE9 by choosing a hysteresis angle. With a 15° hysteresis
angle, the screen will not rotate from 0°to 90°until the device is tilted to 60°(45°+15°). To rotate
back to 0°, the user must tilt back to 30°(45°-15°), thus avoiding the screen flipping problem. Table
16 shows the acceleration limits implemented for 15° of hysteresis in between the four screen
rotation states.
Orientation X Acceleration (g) Y Acceleration (g)
0°/360°
90°
180°
270°
-0.5 < ax < 0.5
ax > 0.866
-0.5 < ax < 0.5
ax < -0.866
ay > 0.866
-0.5 < ay < 0.5
ay < -0.866
-0.5 < ay < 0.5
Table 16. Acceleration at the four orientations with 15°of hysteresis
The KXTE9 allows the user to change the amount of hysteresis in between the four screen rotation states.
By simply writing to the HYST_SET register, the user can adjust the amount of hysteresis from 3°to 30°.
The plot in Figure 1 shows the typical amount of hysteresis applied for a given digital count value.
36 Thornwood Dr. – Ithaca, NY 14850
© 2009 Kionix – All Rights Reserved
tel: 607-257-1080 – fax:607-257-1146
091104-02
www.kionix.com - info@kionix.com
Page 21 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
HYST_SET vs Hysteresis
32
30
28
26
24
22
20
18
16
14
12
10
8
+/- Hysteresis
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15
HYST_SET Value (counts)
Figure 1. Hysteresis vs. HYST_SET value
Device Orientation Angle (aka Tilt Angle)
To ensure that horizontal and vertical device orientation changes are detected, even when it isn’t in
the ideal vertical orientation – where the angle
orientation angle in its algorithm.
θ in Figure 2 is 90°, the KXTE9 considers device
Angle
θ
Figure 2. Device Orientation Angle
As the angle in Figure 2 is decreased, the maximum gravitational acceleration on the X-axis or Y-
axis will also decrease. Therefore, when the angle becomes small enough, the user will not be able
to make the screen orientation change. When the device orientation angle approaches 0°(device
is flat on a desk or table), ax = ay = 0g, az = +1g, and there is no way to determine which way the
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 22 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
screen should be oriented, the internal algorithm determines that the device is in either the face-up
or face-down orientation, depending on the sign of the z-axis. The KXTE9 will only change the
screen orientation when the orientation angle is above the factory-defaulted/user-defined threshold
set in the TILT_ANGLE register. Equation 2 can be used to determine what value to write to the
TILT_ANGLE register to set the device orientation angle.
TILT_ANGLE (counts) = sin θ * (Sensitivity (counts/g) * 4)
Equation 2. Device Orientation Angle (aka Tilt Angle)
Tilt Timer
The 8-bit register, TILT_TIMER can be used to qualify changes in orientation. The KXTE9 does
this by incrementing a counter with a size that is specified by the value in TILT_TIMER for each set
of acceleration samples to verify that a change to a new orientation state is maintained. A user
defined output data rate (ODR) determines the time period for each sample. Equation 3 shows how
to calculate the TILT_TIMER register value for a desired delay time.
TILT_TIMER (counts) = Delay Time (sec) x ODR (Hz)
Equation 3. Tilt Position Delay Time
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 23 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Active/Inactive Feature Description
The Active/Inactive feature of the KXTE9 reports qualified changes in acceleration based Wake Up (WUF)
and Back to Sleep (B2S) thresholds. If the change in acceleration on any axis is greater than the user-
defined wake up threshold (WUF_THRESH), the device has transitioned from an inactive state to an active
state. Equation 4 shows how to calculate the WUF_THRESH register value for a desired wake up
threshold.
WUF_THRESH (counts) = 4 x (Wake Up Threshold (g) x Sensitivity (counts/g))
Equation 4. Wake Up Threshold
If the change in acceleration on any axis is less than the user-defined back to sleep threshold
(B2S_THRESH), the device has transitioned from an active state to an inactive state. Equation 5 shows
how to calculate the B2S_THRESH register value for a desired wake up threshold.
B2S_THRESH (counts) = 4 x (Back to Sleep Threshold (g) x Sensitivity (counts/g))
Equation 5. Back to Sleep Threshold
Separate WUF (WUF_TIMER) and B2S (B2S_TIMER) 8-bit raw unsigned values represent counters that
permit the user to qualify each active/inactive state change. Note that each WUF Timer count qualifies 1
(one) user-defined ODR period (OB2S) and each B2S Timer count qualifies 16 (sixteen) user-defined
periods (initial ODR or OWUF). Equation 6 shows how to calculate the WUF_TIMER register value for a
desired wake up delay time.
WUF_TIMER (counts) = Wake Up Delay Time (sec) x OB2S (Hz)
Equation 6. Wake Up Delay Time
Equation 7 shows how to calculate the B2S_TIMER register value for a desired back to sleep delay time.
B2S_TIMER (counts) = (Back to Sleep Delay Time (sec) x OWUF (Hz)) / 16
Equation 7. Back to Sleep Delay Time
Figure 3 shows the response of the Active/Inactive algorithm with WUF Timer = 10 counts and B2S Timer
= 10 counts.
36 Thornwood Dr. – Ithaca, NY 14850
© 2009 Kionix – All Rights Reserved
tel: 607-257-1080 – fax:607-257-1146
091104-02
www.kionix.com - info@kionix.com
Page 24 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Typical Active/Inactive Interrupt Example
Max Delta Acceleration
B2S Threshold
WUF Threshold
0g
10
B2S Timer
WUF Timer
Ex: Delay Counter = 10
Active
Inactive
Figure 3. KXTE9 Inactive/Active Transitions
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax:607-257-1146
www.kionix.com - info@kionix.com
© 2009 Kionix – All Rights Reserved
091104-02
Page 25 of 26
PART NUMBER:
2g Tri-axis Digital Accelerometer
Specifications
KXTE9-2050
Rev. 3
Nov-2009
Revision History
REVISION DESCRIPTION
DATE
1
2
3
Initial release 09-Apr-2009
Updated thermal performance 14-Aug-2009
Corrected typographical errors and clarified some confusing definitions 05-Nov-2009
"Kionix" is a registered trademark of Kionix, Inc. Products described herein are protected by patents issued or pending. No license is granted by implication or
otherwise under any patent or other rights of Kionix. The information contained herein is believed to be accurate and reliable but is not guaranteed. Kionix does not
assume responsibility for its use or distribution. Kionix also reserves the right to change product specifications or discontinue this product at any time without prior
notice. This publication supersedes and replaces all information previously supplied.
36 Thornwood Dr. – Ithaca, NY 14850
© 2009 Kionix – All Rights Reserved
tel: 607-257-1080 – fax:607-257-1146
091104-02
www.kionix.com - info@kionix.com
Page 26 of 26
厂商 型号 描述 页数 下载

CK-COMPONENTS

 		KXT [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT111LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT121LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT131LHS [ Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT2 [ Double Action Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT211LHS [ Double Action Ultra Low Profile Top Actuated ] 2 页

CK-COMPONENTS

 		KXT3 [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT311LHS [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT321LHS [ High number of cycle ] 2 页

CK-COMPONENTS

 		KXT331LHS [ High number of cycle ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.292846s
