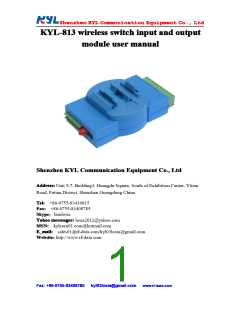

Shenzhen KYL Communication Equipment Co., Ltd
KYL-813 wireless ON-OFF input and output module is a wireless
transmission equipment with four 2-channel DI and 2-channel relay DO.
I. Function
2 channel ON-OFF DI and DO transmitting timely. The 2 channel
switching condition for the transmitting equipment can be output
timely at the receiver equipment. That is the switching condition for
the transmitting equipment is shut down, while the switching condition
will be shut down at the receiver equipment; and the transmitting
equipment is disconnect, while the receiver equipment will disconnect.
The following is the schematic diagram of the ON-OFF transmission.
Schematic diagram
II、Feature:
1、 2-channel coupler isolated inputs, high reliability and stability.
2、 2-channel relay dry contact output, contact current is 30V 1A.
3、 collocate wireless data transmission module with 2-3km.
Working frequency 433MHz(400-470MHz);
