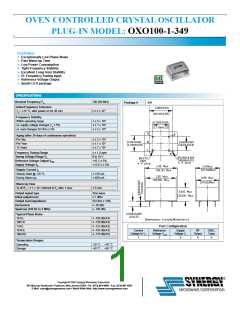

oven ConTRoLLeD CRysTaL osCILLaToR
pLug-In MoDeL: oXo100-1-349
FEATURES:
► Exceptionally Low Phase Noise
► Fast Warm-up Time
► Low Power Consumption
► Tight Frequency Stability
► Excellent Long-Term Stability
► El. Frequency Tuning Input
► Reference Voltage Output
► Small CO-8 package
SPECIFICATIONS
Nominal Frequency FN
100.000 MHz
Package #
349
Initial Frequency Tolerance
TA = +25 °C, after power on for 30 min.
≤ ± 2 x 10-7
Frequency Stability
Within operating range
≤ ± 5 x 10-8
≤ ± 1 x 10-8
≤ ± 5 x 10-9
vs. supply voltage changes VS ± 5%
vs. load changes 50 Ohm ± 5%
Aging (after 30 days of continuous operation)
Per day
Per Year
15 Years
≤ ± 2 x 10-9
≤ ± 1 x 10-7
≤ ± 7 x 10-7
Frequency Tuning Range
Tuning Voltage Range VC
Reference Voltage Output VREF
Supply Voltage VS
≥ ± 1.5 ppm
0 to 10 V
+10 V ± 5%
+12.0 V ± 5%
Supply Current IS
Steady State @ +25 ºC
During Warm-up
≤ 150 mA
≤ 400 mA
Warm Up Time
To dF/F0 < ± 1 x 10-7 referred to F0 after 1 hour
≤ 5 min.
Output signal type
Initial output level
Sine wave
≥ 7 dBm
Output load impedance:
Harmonics:
50 Ohm ± 10%
≤ -30 dBc
Spurious (100 Hz to 5 MHz)
≤ -100 dBc
Typical Phase Noise
10 Hz
≤ -100 dBc/Hz
≤ -130 dBc/Hz
≤ -153 dBc/Hz
≤ -165 dBc/Hz
≤ -170 dBc/Hz
100 Hz
1 kHz
Port Configuration
10 kHz
Control
Voltage In VC
Reference
Voltage VREF
Supply
Voltage Vs
RF
Output
GND.,
Case
100 kHz
1
2
3
4
5
Temperature Ranges
Operating
-20 °C ... +70 °C
Storage
-40 °C ... +85 °C
