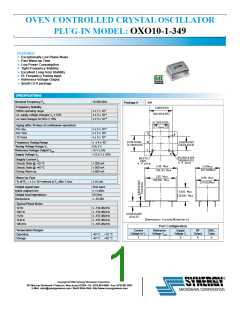

oven ConTRoLLeD CRysTaL osCILLaToR
pLug-In MoDeL: oXo10-1-349
FEATURES:
► Exceptionally Low Phase Noise
► Fast Warm-up Time
► Low Power Consumption
► Tight Frequency Stability
► Excellent Long-Term Stability
► El. Frequency Tuning Input
► Reference Voltage Output
► Small CO-8 package
SPECIFICATIONS
Nominal Frequency FN
10.000 MHz
Package #
349
Frequency Stability
Within operating range
≤ ± 7 x 10-9
≤ ± 5 x 10-10
≤ ± 5 x 10-10
vs. supply voltage changes VS ± 10%
vs. load changes 50 Ohm ± 10%
Aging (after 30 days of continuous operation)
Per day
Per Year
10 Years
≤ ± 5 x 10-10
≤ ± 5 x 10-8
≤ ± 3 x 10-7
Frequency Tuning Range
Tuning Voltage Range VC
Reference Voltage Output VREF
Supply Voltage VS
≥ ± 4 x 10-7
0 to 5 V
+5 V ± 5%
+12.0 V ± 10%
Supply Current IS
Steady State @ +25 ºC
Steady State @ +40 ºC
During Warm-up
≤ 200 mA
≤ 500 mA
≤ 600 mA
Warm Up Time
To dF/F0 < ± 5 x 10-8 referred to F0 after 1 hour
≤ 10 min.
Output signal type
Initial output level
Output load impedance:
Harmonics:
Sine wave
≥ +3 dBm
50 Ohm
≤ -30 dBc
Typical Phase Noise
10 Hz
≤ -130 dBc/Hz
≤ -150 dBc/Hz
≤ -155 dBc/Hz
≤ -165 dBc/Hz
≤ -165 dBc/Hz
100 Hz
1 kHz
10 kHz
100 kHz
Port Configuration
Temperature Ranges
Operating
Control
Voltage In VC
Reference
Voltage VREF
Supply
Voltage Vs
RF
Output
GND.,
Case
-40 °C ... +75 °C
-40 °C ... +85 °C
1
2
3
4
5
Storage
