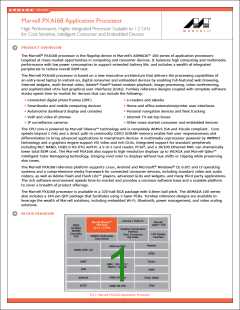

100 series
Marvell PXA168
FEATURES
BENEFITS
• Marvell Sheeva core and support for fast DDR SDRAM
– L2 cache and direct path to DDR2 memory up to 533 MHz (or LP-DDR1)
• WMMX2 SIMD co-processor
• Faster CPU speeds and more efficient MIPS/MHz than competition
bring richer features to mainstream tiers while retaining full ARM®
v5TE and XScale compatibility
• L1 and L2 caches and fast DDR2 speeds provide memory bandwidth
for video and graphics
• Extensive clock gating and low-voltage 55 nm process
• “Zero-power” mode
– Targeting support for up to MPEG-4 720p video, H.264 D1 30 fps
• Clock-gating and low SoC voltages support efficient MIPS/mW to
reduce power consumption and extend battery life
• Suspend-to-DDR mode supports extended battery life during periods
of inactivity
• Highly integrated SoC
• Highly integrated SoC helps enable low BOM and save PCB space,
helping device manufacturers to improve margins
– 5-in-1 card reader for SD/MMC, xD, Sony Memory Stick PRO™, and CF
• Support for DDR2 allows OEMs to take advantage of commodity
memory pricing vs. mobile SDRAM/DDR
– Support for DDR2/LV-DDR2, and raw and managed MLC NAND; boot
from NOR/NAND/MMC/SD/SPI and download from USB
– SSPs, UARTs, IrDA, 10/100 Ethernet MAC, PCIe
– USB 2.0 OTG, host and PHYs
– AC97, PWM, one-wire and two-wire serial interfaces (OWSI, TWSI)
• Integrated multimedia acceleration
– WMMX2 technology
• Integrated HW components enable high-quality still-image and video
on high-resolution displays
• WMMX2 accelerates multimedia without external chip, while
maintaining familiar programming model
– Graphics acceleration
• LCD support up to WUXGA, 24 bpp
• ITU-656 camera input
• Graphics accelerator enhances GUI effects for differentiation
• WMMX2 accelerates multimedia without external chip, while
maintaining familiar programming model
• Qdeo Intelligent Color Remapping (ICR)
• Qdeo ICR enhances color to make vivid images without hue shifts or
clipping while preserving skin-tones. Part of the award-winning Qdeo
suite of video processing
• Complete software offerings from drivers to GUI level
• Software compatibility with ARMv5, XScale, WMMX2
• Hardware reference designs for multiple vertical segments
• Optimized BSPs, middleware for Windows Embedded and linux, as well
as GUIs with Android, Adobe Flash Lite, or Silverlight for Embedded
offer flexibility for system design
• Software compatibility enables access to established wealth of
applications and software ecosystem
• Turnkey reference designs enable fast time-to-market
Note: some features available on 320 BGA package only
PLATFORM SUPPORT
Hardware Platforms: Multiple turnkey reference designs
OS/GUI: Linux and Windows Embedded CE6.0r2, r3; Adobe FlashLite w/sample GUI and widgets; Android
Codecs and Middleware:
• Video: H.263, H.264 BP and partial MP, MPEG-1/2/4 ASP, M-JPEG, WMV9, Sorenson, On2
• Audio: MP3, AAC, WAV, WMA9, SBC, MIDI
• Image: PNG, GIF, BMP, TIFF, JPEG
• Middleware: OpenVG1.1, OpenGL-ES1.1
THE MARVELL ADVANTAGE: Marvell chipsets come with complete reference designs which include board layout designs, software,
manufacturing diagnostic tools, documentation, and other items to assist customers with product evaluation and production. Marvell’s
worldwide field application engineers collaborate closely with end customers to develop and deliver new leading-edge products for quick
time-to-market. Marvell utilizes world-leading semiconductor foundry and packaging services to reliably deliver high-volume and low-cost
total solutions.
