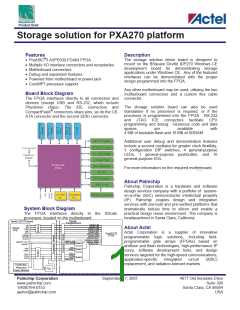

Product Brief
Storage solution for PXA270 platform
Features
Description
• ProASIC®3 A3PE600-FG484 FPGA
• Multiple I/O interface connectors and receptacles
• Motherboard connectors
The storage solution demo board is designed to
mount on the BSquare DevKit IDP270 Windows CE
development board for demonstrating storage
applications under Windows CE. Any of the featured
interfaces can be demonstrated with the proper
design programmed into the FPGA.
• Debug and expansion features
• Powered from motherboard or power jack
• CoreMP7 processor support
Any other motherboard may be used, utilizing the two
motherboard connectors and a custom flex cable
connector.
Board Block Diagram
The FPGA interfaces directly to all connectors and
devices (except USB and RS-232, which include
Phy/driver chips). The IDE connectors and
CompactFlash® connectors share pins, as do the CE-
ATA connector and the second SDIO connector.
The storage solution board can also be used
standalone if no processor is required, or if the
processor is programmed into the FPGA. RS-232
and JTAG ICE connectors facilitate CPU
programming and debug. Generous code and data
spaces
are
available
with
4 MB of bootable flash and 16 MB of SDRAM.
Additional user debug and demonstration features
include a second oscillator for greater clock flexilbity,
3 configuration DIP switches, 4 general-purpose
LEDs,
1
general-purpose pushbutton, and 16
general-purpose I/Os.
For more information on the required motherboard,
About Palmchip
Palmchip Corporation is a hardware and software
design services company with a portfolio of system-
on-a-chip (SoC) semiconductor intellectual property
(IP). Palmchip couples design and integration
services with pre-built and pre-verified platforms that
dramatically reduce time to silicon and enable a
practical design reuse environment. The company is
headquartered in Santa Clara, California.
System Block Diagram
The FPGA interfaces directly to the XScale
processor, located on the motherboard.
XScale
DevKit IDP270 Board
Daughterboard
XSCALE_MA
XSCALE_MD
MA
MD
DQM
nOE
XScale
Chip
About Actel
Actel Corporation is
XSCALE_DQM
XSCALE_NOE
XSCALE_RDY
XSCALE_DREQ
XSCALE_INTR
XSCALE_DVAL
XSCALE_RESET
XSCALE_NPWE
XSCALE_NCS
a
supplier of innovative
RDY
DREQ0
GPIO83
DVAL0
ProASIC3E
FPGA
programmable logic solutions, including field-
programmable gate arrays (FPGAs) based on
antifuse and flash technologies, high-performance IP
cores, software development tools, and design
services targeted for the high-speed communications,
RESET_OUT
PER_RESET
nRESET _OUT
nRESET
Select
nWE
nPWE
nWE
nPWE
Select
nCS1
nCS4
nCS1
nCS4
nCS5
nCS5 Select
EXP_
nCS
application-specific
integrated
circuit
(ASIC)
replacement, and radiation-tolerant markets.
Pushbutton
Reset and
Power Monitor
PLD
Palmchip Corporation
www.palmchip.com
1(408)764-0153
September 17, 2007
4677 Old Ironsides Drive
Suite 300
Santa Clara, CA 95054
USA
