IX3120

型号：

IX3120

描述：

2.5A输出电流栅极驱动光电耦合器[ 2.5A Output Current Gate Driver Optocoupler ]

品牌：

CLARE[ CLARE ]

页数：

11 页

PDF大小：

1705 K

下载PDF手册

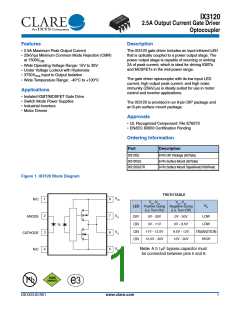

IX3120
2.5A Output Current Gate Driver
Optocoupler
Features
Description
• 2.5A Maximum Peak Output Current
• 25kV/µs Minimum Common Mode Rejection (CMR)
The IX3120 gate driver includes an input infrared LED
that is optically coupled to a power output stage. The
power output stage is capable of sourcing or sinking
2A of peak current, which is ideal for driving IGBTs
and MOSFETs in the mid-power range.
at 1500V
CM
• Wide Operating Voltage Range: 15V to 30V
• Under Voltage Lockout with Hysteresis
• 3750V
Input to Output Isolation
rms
The gate driver optocoupler with its low input LED
current, high output peak current, and high noise
immunity (25kV/s) is ideally suited for use in motor
control and inverter applications.
• Wide Temperature Range: -40°C to +100°C
Applications
• Isolated IGBT/MOSFET Gate Drive
• Switch Mode Power Supplies
• Industrial Inverters
The IX3120 is provided in an 8-pin DIP package and
an 8-pin surface mount package.
• Motor Drivers
Approvals
• UL Recognized Component: File E76270
• EN/IEC 60950 Certification Pending
Ordering Information
Part
Description
IX3120G
8-Pin DIP Package (50/Tube)
IX3120GS
IX3120GSTR
8-Pin Surface Mount (50/Tube)
8-Pin Surface Mount Tape&Reel(1000/Reel)
Figure 1. IX3120 Block Diagram
TRUTH TABLE
VCC
1
2
3
4
8
7
6
5
N/C
VCC-VEE
VCC-VEE
VO
LED Positive Going Negative Going
(i.e. Turn-On)
0V - 30V
(i.e. Turn-Off)
0V - 30V
VO
VO
ANODE
CATHODE
N/C
LOW
LOW
OFF
ON
ON
ON
0V - 11V
0V - 9.5V
9.5V - 12V
12V - 30V
11V - 13.5V
13.5V - 30V
TRANSITION
HIGH
VEE
Note: A 0.1μF bypass capacitor must
be connected between pins 5 and 8.
RoHS
2002/95/EC
Pb
e3
DS-IX3120-R01
www.clare.com
1
IX3120
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Package Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Pin Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Absolute Maximum Ratings @ 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Electrical Specifications (DC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 Switching Characteristics (AC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Test Circuits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Manufacturing Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 ESD Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Reflow Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.4 Board Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.5 Package Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.5.1 IX3120G 8-Pin DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.5.2 IX3120GS 8-Pin Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.5.3 IX3120GS Tape & Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2
www.clare.com
R01
IX3120
1. Specifications
1.1 Package Pinout
1.2 Pin Description
VCC
N/C
8
1
Pin#
Name
Description
No connection
1
2
3
4
5
N/C
ANODE
CATHODE
N/C
Anode of input LED
Cathode of input LED
No connection
VO
VO
2
3
4
ANODE
CATHODE
N/C
7
6
5
V
Negative Supply Voltage
EE
V
6
7
8
Gate Drive Output
Gate Drive Output
Positive Supply Voltage
O
V
O
VEE
V
CC
1.3 Absolute Maximum Ratings @ 25°C
Parameter
Supply Voltage
Symbol
- V
Limit
Units
V
V
0 to 35
0 to V
CC EE
V
Output Voltage
V
O(PEAK)
CC
1
I
- 2.5
2.5
5
A
“High” Peak Output Current
OH(PEAK)
1
I
A
“Low” Peak Output Current
Reverse Input Voltage
Average Input Current
OL(PEAK)
V
V
R
I
20
mA
F(AVG)
Peak Transient Input Current
(<1s pulse width, 300pps)
I
1
A
F(TRAN)
2
P
50
mW
mW
Intput Power Dissipation
IN
3
P
800
Total Power Dissipation
T
V
V
Isolation Voltage, Input to Output
Operating Temperature
3750
IO
rms
T
-40 to +100
-55 to +125
°C
°C
A
T
Storage Temperature
STG
Notes:
1 Maximum pulse width=10s, maximum duty cycle=0.2%.
2 Derate linearly 1.33mW/°C
3 Derate linearly 7.5mW/°C
Absolute maximum ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
R01
www.clare.com
3
IX3120
1.4 Recommended Operating Conditions
Parameter
Power Supply Voltage
Input Current (ON)
Symbol
Min
15
Max
30
Units
V
- V
EE
V
CC
I
7
16
mA
V
F(on)
V
Input Voltage (OFF)
-3.6
-40
0.8
100
F(off)
T
Operating Temperature
°C
A
1.5 Electrical Specifications (DC)
Over recommended operating conditions unless otherwise specified. Typical values are at T =25°C,V =30V, and
A
CC
V
=Ground.
EE
Parameter
Conditions
Symbol Min
Typ
-1.5
-
Max
Units
1
High Level Output Current
- 0.5
-
-
-
V =(V -4V)
CC
O
I
A
OH
2
- 2
V =(V -15V)
CC
O
1
Low Level Output Current
0.5
1.4
-
V =(V +2.5V)
EE
O
I
A
OL
2
2
-
V =(V +15V)
EE
O
I =-100mA
O
V
V - 4 V - 3
CC CC
High Level Output Voltage
Low Level Output Voltage
-
0.5
6
V
V
OH
I =100mA
O
V
OL
-
0.1
Output Open, I =7 to 16mA
F
I
CCH
High Level Supply Current
Low Level Supply Current
-
-
4.5
2.6
0.7
-
mA
Output Open, V =- 3 to +0.8V
F
I
CCL
6
I =0mA, V >5V
O
I
FLH
Threshold Input Current, Low-to-High
Threshold Input Voltage, High-to-Low
Input Forward Voltage
-
5
mA
V
O
V
-
0.8
1
-
FHL
I =10mA
F
V
1.24
-1.6
-
1.5
-
V
F
I =10mA
F
V /T
Temperature Coefficient of Forward Voltage
Input Reverse Breakdown Voltage
Input Capacitance
-
mV/°C
V
F
A
I =10A
BV
5
-
R
R
f=1MHz, V =0V
F
C
-
60
-
pF
IN
V
UVLO Threshold
11
9.5
-
12.3
10.7
1.6
13.5
12
-
UVLO+
V >5V, I =10mA
F
V
V
O
V
UVLO-
V >5V, I =10mA
F
UVLO
HYS
UVLO Hysteresis
O
1
Maximum pulse width = 50s, maximum duty cycle = 0.5%.
Maximum pulse width = 10s, maximum duty cycle = 0.2%.
2
See “Test Circuits” on page 8 for more information.
4
www.clare.com
R01
IX3120
Units
s
1.6 Switching Characteristics (AC)
Over recommended operating conditions, unless otherwise specified.
Parameter
Conditions
Symbol Min
Typ
Max
Propagation Delay Time
to High Output Level
tPLH
0.1
0.1
-
0.3
0.5
Propagation Delay Time
to Low Output Level
tPHL
0.3
0.5
0.3
Pulse Width Distortion
PWD
(tPHL-tPLH
RG=10, CG=10nF
f=10kHz, Duty Cycle=50%
-
-
)
Propagation Delay Difference
Between any Two Parts
PDD
-0.35
0.35
Rise Time
tr
-
-
-
-
0.1
0.1
0.8
0.6
-
-
-
-
Fall Time
tf
UVLO Turn-On Delay
UVLO Turn-Off Delay
VO>5V, IF=10mA
VO<5V, IF=10mA
tUVLO(on)
tUVLO(off)
s
Output High Level
Common Mode Transient Immunity
IF=10 to 16mA, VCM=1500V,
VCC=30V, TA=25°C
|CMH|
|CML|
25
25
35
35
-
-
kV/s
Output Low Level
Common Mode Transient Immunity
VF=0V, VCM=1500V, VCC=30V,
TA=25°C
Figure 2. Timing Waveforms
IF
tr
tf
90%
50%
10%
VOUT
tPLH
tPHL
R01
www.clare.com
5
IX3120
2. Performance Data
VOL vs.Temperature
(IF=0mA, IOUT=100mA, VCC=15V, VEE=0V)
Output High Current vs.Temperature
(VCC=15V, VEE=0V, IF=7mA, VOUT=VCC-4V)
VOH vs.Temperature
(IF=7mA, IOUT=-100mA, VCC=15V, VEE=0V)
0.22
0.20
0.18
0.16
0.14
0.12
0.10
3.0
2.5
2.0
1.5
1.0
-0.10
-0.12
-0.14
-0.16
-0.18
-0.20
-40
-20
0
20
40
60
80
100
-40
0.0
-40
-20
0
20
40
60
80
100
-40
-20
0
20
Temperature (ºC)
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Output Low Current vs.Temperature
(VCC=15V, VEE=0V, VOUT=2.5V)
(VF(off)=-3.0 to 0.8V)
VOH vs. IOH
VOL vs. IOL
(IF=7mA, VCC=15V, VEE=0V)
(VCC=15V, VEE=0V, VF(off)=-3.0 to 0.8V)
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0
-2
12
10
8
-40ºC
25ºC
100ºC
100ºC
25ºC
-40ºC
-4
6
-6
4
-8
2
-10
0
-40
-20
0
20
40
60
80
100
0.5
1.0
IOH (A)
1.5
2.0
2.5
0.0
0.5
1.0
IOL (A)
1.5
2.0
2.5
Temperature (ºC)
ICC vs. VCC
ICC vs.Temperature
IFLH vs.Temperature
(VCC=30V, VEE=0V, Output=OPEN)
(IF=10mA, VEE=0V,TA=25ºC)
(VCC=30V, VEE=0V, Output=Open)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.74
0.72
0.70
0.68
0.66
0.64
0.62
0.60
ICCH
ICCH: IF=10mA
ICCL
ICCL: IF=0mA
-40
-20
0
20
40
60
80
100
15
20
25
30
-20
0
20
40
60
80
100
Temperature (ºC)
Supply Voltage (V)
Temperature (ºC)
Propagation Delay vs. VCC
(IF=10mA, RG=10Ω, CG=10nF)
(Duty Cycle=50%, f=10kHz,TA=25ºC)
LED Forward Current
vs. Forward Voltage
(TA=25ºC)
Propagation Delay vs. RG
(IF=10mA, VCC=30V, VEE=0V, CG=10nF)
(Duty Cycle=50%, f=10kHz,TA=25ºC)
160
140
120
100
80
100
80
60
40
20
0
160
140
120
100
80
tPHL
tPHL
tPLH
tPLH
60
60
10
15
20
25
30
35
40
45
50
15
20
25
30
1.10 1.15 1.20 1.25 1.30 1.35 1.40 1.45 1.50
RG (Ω)
VCC - Supply Voltage (V)
LED Forward Voltage (V)
6
www.clare.com
R01
IX3120
Performance Data (Cont.)
Propagation Delay vs.Temperature
(IF=10mA, VCC=30V, VEE=0V, RG=10Ω)
(CG=10nF, Duty Cycle=50%, f=10kHz)
Propagation Delay vs. CG
(IF=10mA, VCC=30V, VEE=0V, RG=10Ω)
(Duty Cycle=50%, f=10kHz,TA=25ºC)
Propagation Delay vs. IF
(VCC=30V, VEE=0V, RG=10Ω, CG=10nF)
(Duty Cycle=50%, f=10kHz,TA=25ºC)
160
140
120
100
80
160
160
140
120
100
80
tPHL
tPHL
tPHL
140
120
100
tPLH
tPLH
tPLH
80
60
60
60
0
20
40
CG (nF)
60
80
100
-40
-20
0
20
40
60
80
100
6
8
10
12
14
16
Temperature (ºC)
IF (mA)
Transfer Characteristics
35
30
25
20
15
10
5
0
0
1
2
3
4
5
IF - Forward LED Current (mA)
R01
www.clare.com
7
IX3120
3. Test Circuits
1
8
1
2
3
4
8
0.1μF
0.1μF
4V
IOL
IF=7 to 16mA
2
+
-
7
7
V
CC=15 to 30V
VCC=15 to 30V
+
-
+
-
2.5V
+
-
3
4
6
5
6
5
IOH
I
OH Test Circuit
IOL Test Circuit
1
2
3
4
8
1
2
3
4
8
100mA
0.1μF
0.1μF
IF=7 to 16mA
VOH
7
7
V
CC=15 to 30V
V
CC=15 to 30V
+
-
+
-
6
5
6
5
VOL
100mA
VOH Test Circuit
VOL Test Circuit
1
2
3
4
8
1
2
3
4
8
IF
0.1μF
0.1μF
IF=10mA
7
7
VCC
+
-
+
-
6
5
6
5
V
CC=15 to 30V
VO>5V
VO>5V
IFLH Test Circuit
UVLO Test Circuit
1
8
0.1μF
IF=7 to 16mA
+
-
2
3
4
7
V
CC=15 to 30V
VO
+
-
500Ω
10kHz
50%
RG
10Ω
Duty Cycle
6
5
CG
10nF
tPLH, tPHL, tr, tf Test Circuit
8
www.clare.com
R01
IX3120
4. Manufacturing Information
4.1 Moisture Sensitivity
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. Clare classified
all of its plastic encapsulated devices for moisture sensitivity according to the latest version of the joint
industry standard, IPC/JEDEC J-STD-020, in force at the time of product evaluation. We test all of our
products to the maximum conditions set forth in the standard, and guarantee proper operation of our
devices when handled according to the limitations and information in that standard as well as to any limitations set
forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a Moisture Sensitivity Level (MSL) rating as shown below, and should be handled according to
the requirements of the latest version of the joint industry standard IPC/JEDEC J-STD-033.
Device
Moisture Sensitivity Level (MSL) Rating
IX3120G / IX3120GS
MSL 1
4.2 ESD Sensitivity
This product is ESD Sensitive, and should be handled according to the industry standard
JESD-625.
4.3 Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020 must be observed.
Device
Maximum Temperature x Time
IX3120G / IX3120GS
250°C for 30 seconds
4.4 Board Wash
Clare recommends the use of no-clean flux formulations. However, board washing to remove flux residue is
acceptable, and the use of a short drying bake may be necessary. Chlorine-based or Fluorine-based solvents or
fluxes should not be used. Cleaning methods that employ ultrasonic energy should not be used.
RoHS
2002/95/EC
Pb
e3
R01
www.clare.com
9
IX3120
4.5 Package Mechanical Dimensions
4.5.1 IX3120G 8-Pin DIP
9.652 0.381
(0.380 0.015)
PCB Hole Pattern
7.620 0.254
(0.300 0.010)
2.540 0.127
(0.100 0.005)
8-0.800 DIA.
2.540 0.127
(0.100 0.005)
(8-0.031 DIA.)
9.144 0.508
(0.360 0.020)
6.350 0.127
(0.250 0.005)
6.350 0.127
(0.250 0.005)
3.302 0.051
(0.130 0.002)
Pin 1
0.457 0.076
(0.018 0.003)
7.620 0.127
(0.300 0.005)
7.239 TYP.
(0.285)
0.254 TYP
(0.01)
7.620 0.127
(0.300 0.005)
4.064 TYP
(0.160)
Dimensions
0.889 0.102
mm
(0.035 0.004)
(inches)
4.5.2 IX3120GS 8-Pin Surface Mount
9.652 0.381
(0.380 0.015)
PCB Land Pattern
0.635 0.127
(0.025 0.005)
2.540 0.127
3.302 0.051
2.54
(0.100 0.005)
(0.10)
(0.130 0.002)
9.525 0.254
(0.375 0.010)
6.350 0.127
(0.250 0.005)
8.90
(0.3503)
1.65
(0.0649)
7.620 0.254
(0.300 0.010)
Pin 1
0.457 0.076
(0.018 0.003)
0.254 0.127
(0.010 0.0005)
0.65
(0.0255)
4.445 0.127
(0.175 0.005)
Dimensions
mm
(inches)
0.813 0.120
(0.032 0.004)
10
www.clare.com
R01
IX3120
4.5.3 IX3120GS Tape & Reel
330.2 DIA.
(13.00 DIA.)
W=16.00
(0.63)
Top Cover
Tape Thickness
0.102 MAX.
(0.004 MAX.)
Bo=10.30
(0.406)
Ao=10.30
(0.406)
P=12.00
(0.472)
K0=4.90
(0.193)
K1=4.20
(0.165)
User Direction of Feed
Dimensions
mm
Embossed Carrier
(inches)
NOTES:
1. Dimensions carry tolerances of EIA Standard 481-2
Embossment
2. Tape complies with all “Notes” for constant dimensions listed on page 5 of EIA-481-2
For additional information please visit our website at: www.clare.com
Clare, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and
product descriptions at any time without notice. Neither circuit patent licenses nor indemnity are expressed or implied. Except as set forth in Clare’s Standard Terms and Conditions of Sale,
Clare, Inc. assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for
a particular purpose, or infringement of any intellectual property right.
The products described in this document are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other
applications intended to support or sustain life, or where malfunction of Clare’s product may result in direct physical harm, injury, or death to a person or severe property or environmental
damage. Clare, Inc. reserves the right to discontinue or make changes to its products at any time without notice.
Specification: DS-IX3120-R01
©Copyright 2012, Clare, Inc.
All rights reserved. Printed in USA.
1/13/2012
R01
www.clare.com
11
厂商 型号 描述 页数 下载

HRS

 		IX30G-A-10S-CV(7.0)(01) [ Telecom and Datacom Connector, ] 2 页

HRS

 		IX30G-B-10S-CV(7.0) [ Telecom and Datacom Connector, ] 2 页

IXYS

 		IX3120 [ 2.5A Maximum Peak Output Current ] 12 页

CLARE

 		IX3120G 2.5A输出电流栅极驱动光电耦合器[ 2.5A Output Current Gate Driver Optocoupler ] 11 页

IXYS

 		IX3120G [ 2.5A Maximum Peak Output Current ] 12 页

IXYS

 		IX3120GE [ 2.5A Maximum Peak Output Current ] 12 页

IXYS

 		IX3120GES [ 2.5A Maximum Peak Output Current ] 12 页

IXYS

 		IX3120GESTR [ 2.5A Maximum Peak Output Current ] 12 页

CLARE

 		IX3120GS 2.5A输出电流栅极驱动光电耦合器[ 2.5A Output Current Gate Driver Optocoupler ] 11 页

IXYS

 		IX3120GS [ 2.5A Maximum Peak Output Current ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.185449s
