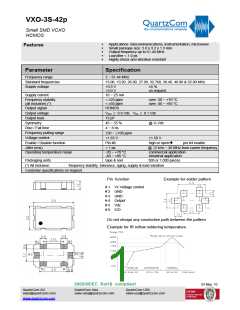

VXO-3S-42p
Small SMD VCXO
HCMOS
Applications: telecommunications, instrumentation, microwave
Small package size: 5.0 x 3.2 x 1.3 mm
Output frequency up to 61.44 MHz
Low jitter < 1.0 ps
Features
Highly shock and vibration resistant
Parameter
Specification
Frequency range
Standard frequencies
Supply voltage
2 ~ 61.44 MHz
13.00, 19.20, 26.00, 27.00, 32.768, 38.40, 40.00 & 52.00 MHz
+3.3 V
+5.0 V
±5 %
on request
Supply current
10 ~ 25 mA
Frequency stability
(all inclusive) (*)
< ±25 ppm
< ±50 ppm
HCMOS
over -20 ~ +70 °C
over -40 ~ +85 °C
Output signal
Output voltage
Output load
VOH ≥ 0.9 Vdc VOL ≤ 0.1 Vdc
15 pF
Symmetry
45 ~ 55 %
4 ~ 8 ns
@ ½ Vdc
Rise / Fall time
Frequency pulling range
Voltage control
Enable / Disable function
±50 ~ ±100 ppm
+1.65 V
±1.50 V
high or openÎ
Pin #6
pin #4 enable
Jitter (rms)
< 1 ps
@ 12 kHz ~ 20 MHz from carrier frequency
Operating temperature range
-20 ~ +70 °C
-40 ~ +85 °C
commercial application
industrial application
Packaging units
tape & reel
500 or 1.000 pieces
(*) All inclusive:
frequency stability, tolerance, aging, supply & load variation
Customer specifications on request
Pin function
Example for solder pattern
# 1 Vc Voltage control
# 2 GND
# 3 GND
# 4 Output
# 5 Vdc
# 6 E/D
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
02 May. 10
QuartzCom AG
QuartzCom Asia
QuartzCom USA
