CFA

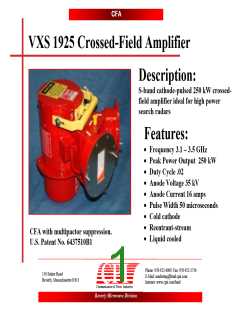

VXS 1925 Crossed-Field Amplifier
Description:
S-band cathode-pulsed 250 kW crossed-
field amplifier ideal for high power
search radars
Features:
S Frequency 3.1 – 3.5 GHz
S Peak Power Output 250 kW
S Duty Cycle .02
S Anode Voltage 35 kV
S Anode Current 16 amps
S Pulse Width 50 microseconds
S Cold cathode
S Reentrant-stream
S Liquid cooled
CFA with multipactor suppression.
U.S. Patent No. 6437510B1
Phone: 978-922-6000 Fax: 978-922-2736
E-Mail: marketing@bmd.cpii.com
Internet: www.cpii.com/bmd
150 Sohier Road
Beverly, Massachusetts 01915
Beverly Microwave Division
