图片源于供应商或网络,实物可能存在差异,请以实物为准

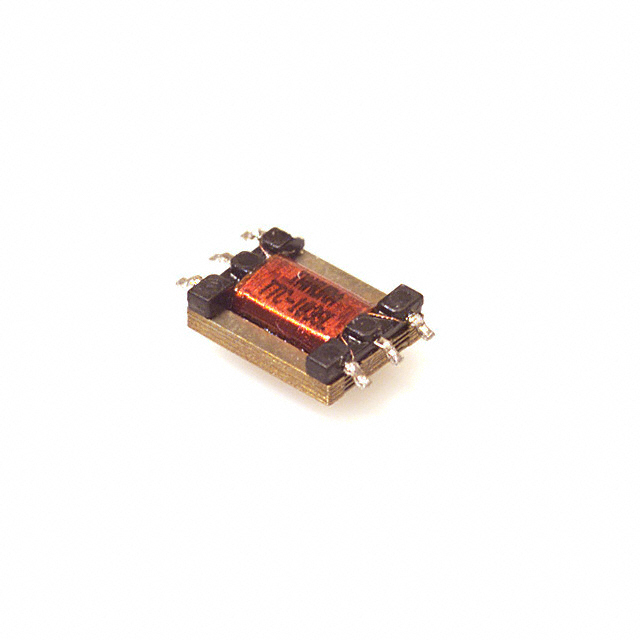

TTC-103SL

购买数量

总价金额：￥ 0

样品申购

详细描述：600 初级侧阻抗欧姆 346 次级侧阻抗欧姆 1：1 音频变压器 300Hz ~ 3.5kHz 表面贴装型

产品参数

产品属性	属性值
DC 电阻 (DCR) - 初级侧	127 欧姆
DC 电阻 (DCR) - 次级侧	150 欧姆
制造商	Tamura
功率水平	10mW
包装	散装
匝数比 - 初级:次级	1:1
变压器类型	数据、音频耦合
回波损耗	25dB 分钟 @ 300Hz ~ 3.5kHz
大小、尺寸	0.330" 长 x 0.402" 宽（8.38mm x 10.20mm）
安装类型	表面贴装型
工作温度	-
插损	2.7dB @ 1kHz
电压 - 隔离	1000VRMS @ 1 分钟
端接样式	鸥翼
系列	TTC
认证机构	CSA-C22.2 No. 950-M89，UL1459，UL1950
重量	-
阻抗 - 初级侧（欧姆）	600
阻抗 - 次级侧（欧姆）	346
零件状态	停产
频率响应	-0.35dB ~ 0.15dB
频率范围	300Hz ~ 3.5kHz
高度 - 安装（最大值）	0.164"（4.16mm）

产品概述

暂无产品概述
