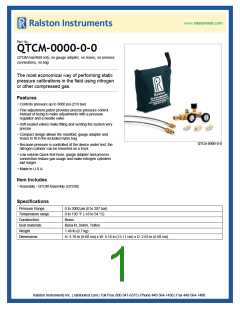

Part No.
QTCM-0000-0-0
QTCM manifold only, no gauge adapter, no hoses, no process
connections, no bag
The most economical way of performing static
pressure calibrations in the field using nitrogen
or other compressed gas.
Features
•
Controls pressure up to 3000 psi (210 bar)
•
Fine adjustment piston provides precise pressure control
instead of trying to make adjustments with a pressure
regulator and a needle valve
•
•
•
•
Soft-seated valves make filling and venting the system very
precise
Compact design allows the manifold, gauge adapter and
hoses to fit in the included nylon bag
QTCM-0000-0-0
Because pressure is controlled at the device under test, the
nitrogen cylinder can be mounted on a truck
Low volume Quick-test hose, gauge adapter and process
connection reduce gas usage and make nitrogen cylinders
last longer
•
Made in U.S.A.
Item Includes
•
Assembly - QTCM Assembly (QTCM)
Specifications
Pressure Range
Temperature range
Construction
Seal materials
Weight
0 to 3000 psi (0 to 207 bar)
0 to 130 °F (-18 to 54 °C)
Brass
Buna-N, Delrin, Teflon
1.46 lb (0.7 kg)
Dimensions
H: 3.78 in (9.60 cm) x W: 5.16 in (13.11 cm) x D: 2.63 in (6.68 cm)
