QTCS1,5-TWIN-PE

型号：

QTCS1,5-TWIN-PE

品牌：

PHOENIX[ PHOENIX CONTACT ]

页数：

8 页

PDF大小：

158 K

下载PDF手册

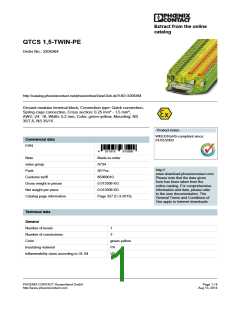

Extract from the online
catalog
QTCS 1,5-TWIN-PE
Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
Ground modular terminal block, Connection type: Quick connection,
Spring-cage connection, Cross section: 0.25 mm² - 1.5 mm²,
AWG :24- 16, Width: 5.2 mm, Color: green-yellow, Mounting: NS
35/7,5, NS 35/15
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4
017918
975999
Note
Made-to-order
A734
sales group
http://
Pack
50 Pcs.
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
85369010
0.013306 KG
0.013306 KG
Page 327 (C-3-2013)
Technical data
General
Number of levels
Number of connections
Color
1
3
green-yellow
Insulating material
Inflammability class according to UL 94
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
General
Rated surge voltage
8 kV
Pollution degree
3
Surge voltage category
Insulating material group
Connection in acc. with standard
III
I
IEC 60947-7-2
IEC 60947-7-2
ja
Open side panel
Dimensions
Width
5.2 mm
Length
71.6 mm
39.3 mm
46.8 mm
2.2 mm
Height NS 35/7,5
Height NS 35/15
End cover width
Connection data
Connection method
Quick connection
3 mm
Max. wire diameter incl. insulation
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
24
24
Conductor cross section AWG/kcmil max
16
16
Material wire insulation
PVC / PE
Certificates / Approvals
Certification
cULus Recognized, GOST, GL
ATEX, IECEx
Certification Ex:
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
Certifications applied for:
Accessories
Item
Designation
Description
Assembly
3206212
ATP-QTC TWIN
CLIPFIX 35
Partition plate, Length: 84.4 mm, Width: 2 mm, Height: 46 mm,
Color: gray
3022218
3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN
rail, with marking option, width: 9.5 mm, color: gray
CLIPFIX 35-5
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN
rail, with marking option, with parking option for FBS...5, FBS...6,
KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
1201442
1201413
E/NS 35 N
E/UK
End clamp, width: 9.5 mm, color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
E/UK 1
End clamps, for supporting the ends of double-level and three-
level terminal blocks, width: 10 mm, color: gray
0801704
NS 35/ 7,5 AL UNPERF
2000MM
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm,
Length: 2000 mm, Color: silver
1206560
0801762
NS 35/ 7,5 CAP
DIN rail end piece, for DIN rail NS 35/7.5
NS 35/ 7,5 CU UNPERF
2000MM
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
0801733
0801681
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 WH PERF 2000MM
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2000 mm
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
1204119
1204122
DIN rail 35 mm (NS 35)
DIN rail 35 mm (NS 35)
NS 35/ 7,5 WH UNPERF
2000MM
1206421
1206434
1201756
NS 35/ 7,5 ZN PERF 2000MM
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35/ 7,5 ZN UNPERF
2000MM
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width
35 mm, length: 2 m
NS 35/15 AL UNPERF 2000MM
DIN rail, deep drawn, high profile, unperforated, 1.5 mm thick,
material: aluminum, height 15 mm, width 35 mm, length 2000 mm
1206573
1201895
NS 35/15 CAP
DIN rail end piece, for DIN rail NS 35/15
NS 35/15 CU UNPERF 2000MM DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
1201730
NS 35/15 PERF 2000MM
DIN rail, material: steel galvanized and passivated with a thick
layer, perforated, height 15 mm, width 35 mm, length: 2000 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
1201714
NS 35/15 UNPERF 2000MM
NS 35/15 WH PERF 2000MM
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
0806602
1204135
1206599
DIN rail 35 mm (NS 35)
NS 35/15 WH UNPERF 2000MM DIN rail 35 mm (NS 35)
NS 35/15 ZN PERF 2000MM DIN rail, material: Galvanized, perforated, height 15 mm, width 35
mm, length: 2 m
1206586
1201798
NS 35/15 ZN UNPERF 2000MM DIN rail, material: Galvanized, unperforated, height 15 mm, width
35 mm, length: 2 m
NS 35/15-2,3 UNPERF 2000MM DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Connector/Adapter
3030983
3038723
PS-5
Test plugs, Color: red
Test plugs, Color: red
PS-5/2,3MM RD
Covers
3206403
D-QTCS 1,5-TWIN
End cover, Length: 72.1 mm, Width: 2.2 mm, Height: 39.3 mm,
Color: gray
3036725
3205200
DP PS-5
Spacer plate, Color: red
DS-QTC 1,5
Cover segment, Length: 94 mm, Width: 0 mm, Height: 39.3 mm,
Color: gray
General
3035980
PAI-4-FIX-5/6 BK
PAI-4-FIX-5/6 BN
PAI-4-FIX-5/6 BU
PAI-4-FIX-5/6 GN
PAI-4-FIX-5/6 GY
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Black
3035981
3035975
3035978
3035982
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Brown
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Blue
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Green
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
3035974
3035976
3035979
3035977
3039926
PAI-4-FIX-5/6 OG
PAI-4-FIX-5/6 RD
PAI-4-FIX-5/6 VT
PAI-4-FIX-5/6 YE
QTC-IL
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Orange
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Red
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Violet
Test adapter, for 4 mm Ø safety test plugs, latches into the bridge
shaft; color: Yellow
Operating decal for the QTS terminal block
Marking
0818108
UC-TM 5
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, for terminal block
width: 5.2 mm, Lettering field: 10.5 x 4.6 mm
0824581
0818153
0824638
0828734
UC-TM 5 CUS
UC-TMF 5
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into tall marker groove, for terminal block width: 5.2 mm, Lettering
field: 10.5 x 4.6 mm
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into flat marker groove, for terminal block
width: 5.2 mm, Lettering field: 4.6 x 5.1 mm
UC-TMF 5 CUS
UCT-TM 5
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 5.2 mm, Lettering
field: 4.6 x 5.1 mm
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, Mounting type: Snap into tall marker groove, for
terminal block width: 5.2 mm, Lettering field: 4.6 x 10.5 mm
0829595
0828744
UCT-TM 5 CUS
UCT-TMF 5
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into tall marker groove, Lettering field: 4.6 x 10.5 mm
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, Mounting type: Snap into flat marker groove, for
terminal block width: 5.2 mm, Lettering field: 4.4 x 4.7 mm
0829658
1050004
UCT-TMF 5 CUS
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 5.2 mm, Lettering
field: 4.4 x 4.7 mm
ZB 5 :UNBEDRUCKT
Zack marker strip, Strip, white, unlabeled, can be labeled with:
Plotter, Mounting type: Snap into tall marker groove, for terminal
block width: 5.2 mm, Lettering field: 5.1 x 10.5 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
0824962
1050017
1050033
1050415
1050020
0825025
0808671
0810821
0810863
0808697
0808642
ZB 5 CUS
Zack marker strip, can be ordered: Strip, white, labeled according
to customer specifications, Mounting type: Snap into tall marker
groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x
10.5 mm
ZB 5,LGS:FORTL.ZAHLEN
ZB 5,LGS:GLEICHE ZAHLEN
ZB 5,LGS:L1-N,PE
Zack marker strip, Strip, white, labeled, Printed
horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491
- 500, Mounting type: Snap into tall marker groove, for terminal
block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Zack marker strip, Strip, white, labeled, can be labeled with:
Plotter, Printed horizontally: Identical numbers 1 or 2, etc. up to
100, Mounting type: Snap into tall marker groove, for terminal
block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Marker for terminal blocks, Strip, white, labeled, Horizontal: L1,
L2, L3, N, PE, L1, L2, L3, N, PE, Mounting type: Snap into tall
marker groove, for terminal block width: 5.2 mm, Lettering field:
5.15 x 10.5 mm
ZB 5,QR:FORTL.ZAHLEN
ZBF 5 CUS
Zack marker strip, Strip, white, labeled, can be labeled with:
Plotter, Printed vertically: Consecutive numbers 1 - 10, 11 - 20,
etc. up to 491 - 500, Mounting type: Snap into tall marker groove,
for terminal block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Zack Marker strip, flat, can be ordered: Strip, white, labeled
according to customer specifications, Mounting type: Snap into flat
marker groove, for terminal block width: 5 mm, Lettering field: 5.15
x 5.15 mm
ZBF 5,LGS:FORTL.ZAHLEN
ZBF 5,LGS:GERADE ZAHLEN
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491
- 500, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Consecutive numbers 2 - 20, 22 - 40, etc. up to 82
- 100, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
ZBF 5,LGS:UNGERADE
ZAHLEN
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Odd numbers 1 - 19, 21 - 39, etc. up to 81 - 99,
Mounting type: Snap into flat marker groove, for terminal block
width: 5 mm, Lettering field: 5.15 x 5.15 mm
ZBF 5,QR:FORTL.ZAHLEN
ZBF 5:UNBEDRUCKT
Zack Marker strip, flat, Strip, white, labeled, Printed
vertically: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 -
100, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat, Strip, white, unlabeled, can be labeled with:
Plotter, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.1 x 5.2 mm
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 6 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 7 / 8
Aug 13, 2014
QTCS 1,5-TWIN-PE Order No.: 3206364
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3206364
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2014 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 8 / 8
Aug 13, 2014
厂商 型号 描述 页数 下载

RALSTON

 		QTCM 氮校准阀组[ Nitrogen Calibration Manifolds ] 1 页

RALSTON

 		QTCM-0000-0-0 QTCM歧而已，没有压力表适配器，没有管，没有过程连接，无袋[ QTCM manifold only, no gauge adapter, no hoses, no process connections, no bag ] 1 页

RALSTON

 		QTCM-1KPSIG-D QTCM歧管， 1KPSIG数字化仪套件[ QTCM manifold, 1KPSIG digital gauge kit ] 1 页

RALSTON

 		QTCM-1KPSIG-M QTCM歧管， 1KPSIG模拟仪表套件[ QTCM manifold, 1KPSIG analog gauge kit ] 1 页

RALSTON

 		QTCM-1MBA-20-2 QTCM歧管[ QTCM manifold ] 1 页

RALSTON

 		QTCM-2FBA-20-2 QTCM歧管[ QTCM manifold ] 1 页

RALSTON

 		QTCM-2MBA-20-2 QTCM歧管[ QTCM manifold ] 1 页

RALSTON

 		QTCM-3KPSIG-D 压力表和软管[ pressure gauge and hoses ] 1 页

RALSTON

 		QTCM-3KPSIG-M QTCM歧管， 3KPSIG模拟仪表套件[ QTCM manifold, 3KPSIG analog gauge kit ] 1 页

PHOENIX

 		QTCS1,5-TWIN [ Modular Terminal Block ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.206539s
