NX2147

型号：

NX2147

描述：

具有动态电压调整功能单一通道手机PWM控制器[ SINGLE CHANNEL MOBILE PWM CONTROLLER WITH DYNAMIC VOLTAGE ADJUSTMENT ]

品牌：

MICROSEMI[ Microsemi ]

页数：

11 页

PDF大小：

492 K

下载PDF手册

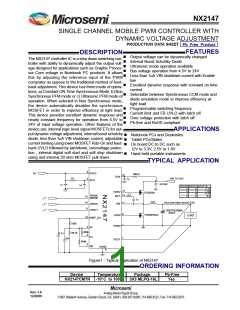

NX2147
SINGLE CHANNEL MOBILE PWM CONTROLLER WITH
DYNAMIC VOLTAGE ADJUSTMENT
PRODUCTION DATA SHEET
Pb Free Product
FEATURES
DESCRIPTION
n
n
n
n
n
Output voltage can be dynamically changed
Internal Boost Schottky Diode
The NX2147 controller IC is a step down switching con-
troller with ability to dynamically adjust the output volt-
age designed for applications such as Graphic Proces-
sor Core voltage in Notebook PC products. It allows
this by adjusting the reference input of the PWM
comprator as oppose to the traditional method of feed-
back adjustment. This device has three mode of opera-
tions; a) Constant ON Time Synchronous Mode, b) Non
Synchronous PFM mode or c) Ultrasonic PFM mode of
operation. When selected in Non Synchronous mode,
the device automatically disables the synchronous
MOSFET in order to improve efficiency at light load.
This device provides excellent dynamic response and
nearly constant frequency for operation from 4.5V to
24V of input voltage operation. Other features of the
device are; internal logic level signal MOSFETs for out-
put dynamic voltage adjustment, internal boost schotcky
diode, less than 1uA VIN shutdown current, adjustable
current limiting using lower MOSFET Rds-On and feed-
back UVLO followed by latchdown, overvoltage protec-
tion , internal digital soft start and soft stop shutdown
using and internal 20 ohm MOSFET pull down.
Ultrasonic mode operation available
Bus voltage operation from 4.5V to 24V
Less than 1uA VIN shutdown current with Enable
low
Excellent dynamic response with constant on time
control
Selectable between Synchronous CCM mode and
diode emulation mode to improve efficiency at
light load
Programmable switching frequency
Current limit and FB UVLO with latch off
Over voltage protection with latch off
Pb-free and RoHS compliant
n
n
n
n
n
n
APPLICATIONS
Notebook PCs and Desknotes
Tablet PCs/Slates
n
n
n
On board DC to DC such as
12V to 3.3V, 2.5V or 1.8V
Hand-held portable instruments
n
TYPICAL APPLICATION
9
5V
PVCC
VCC
1MEG
16
TON
10
VIN 7V~22V
2
1n
2x10uF
1u
1u
G P I O 0 G P IO1 V O U T ( V )
1
0
1
0
1
1
0
0
1.17
1.09
0.95
0.9
12
13
HDRV
BST
FDS6294
1uH
2.2
ENSW
/MODE
15
1u
14
6
Vout (see table above) /12A
11
SW
GPIO0
GPIO1
2R5TPE330MC
330uF
8
7
FDS6676AS
LDRV
PGND
LOAD
10
VREF_OC
VP
100k
3
200k
4
0.1u
88.7k
D1
1
10n
VOUT
634k
5
D0
AGND
6
Figure1 - Typical application of NX2147
ORDERING INFORMATION
Device
Temperature
Package
Pb-Free
Yes
NX2147CMTR -10o C to 100o C 3X3 MLPQ-16L
Rev. 1.8
12/28/09
NX2147
ABSOLUTE MAXIMUM RATINGS
VCC,PVCC to GND & BST to SW voltage ............ -0.3V to 6.5V
VIN,TON to GND .................................................. -0.3V to 28V
HDRV to SW Voltage .......................................... -0.3V to 6.5V
SW to GND ......................................................... -2V to 30V
All other pins ........................................................ VCC+0.3V
Storage Temperature Range ..................................-65oC to 150oC
Operating Junction Temperature Range .................-40oC to 150oC
ESD Susceptibility ............................................... 2kV
CAUTION: Stresses above those listed in "ABSOLUTE MAXIMUM RATINGS", may cause permanent
damage to the device. This is a stress only rating and operation of the device at these or any other conditions
above those indicated in the operational sections of this specification is not implied.
PACKAGE INFORMATION
3x3 16-LEAD PLASTIC MLPQ
qJA » 46oC/W
13
16 15 14
HDRV
SW
1
2
3
4
VOUT
12
11
10
9
VCC
VP
17(PAD)
AGND
VREF_OC
PVCC
D1
7
5
8
6
ELECTRICAL SPECIFICATIONS
Unless otherwise specified, these specifications apply over Vcc =5V, VIN=15V and TA =25oC, unless otherwise
specified.
PARAMETER
SYM
Test Condition
Min
TYP
MAX Units
VIN
V
Recommended voltage range
Shut down current
4.5
24
uA
ENSW=GND
1
VCC,PVCC Supply
Input voltage range
Vcc
4.5
5.5
V
Operating quiescent current
Shut down current
No switching, ENSW=5V
ENSW=GND
1.6
1
mA
uA
Rev. 1.8
12/28/09
NX2147
PARAMETER
VCC UVLO
SYM
Test Condition
Min
TYP
MAX Units
Under-voltage Lockout
threshold
VCC_UVLO
4.1
3.9
V
V
Falling VCC threshold
ON and OFF time
TON operating current
VIN=15V, Rton=1Mohm
VIN=9V,VP=VOUT=0.75V,Rt
on=499k
15
uA
ns
ON -time
Minimum off time
390
590
380
800
ns
VREF_OC voltage
VREF_OC voltage
Line regulation
2.475
-2
2.5
2.525
2
V
VCC from 4 to 5.5
%
OUTPUT voltage
Output range
0
5.5
V
VOUT shut down discharge
resistance
ENSW/MODE=GND
30
ohm
ms
Soft start time
1.5
GPIO threshold
Output high
V
V
2
0
5
Output low
0.8
DO,D1 internal pull down
MOSFET
impedance
13
5
mohm
mV
SW zero cross comparator
Offset voltage
High Side Driver
(CL=3300pF)
Output Impedance , Sourcing Rsource(Hdrv)
Current
I=200mA
I=200mA
1.5
1.5
ohm
ohm
Output Impedance , Sinking
Current
Rsink(Hdrv)
N
Rise Time
Fall Time
Deadband Time
THdrv(Rise)
THdrv(Fall)
Tdead(L to Ldrv going Low to Hdrv going
10% to 90%
90% to 10%
50
50
30
ns
ns
ns
H)
High, 10% to 10%
Low Side Driver
(CL=3300pF)
Output Impedance, Sourcing
Current
Output Impedance, Sinking
Current
Rsource(Ldrv)
Rsink(Ldrv)
I=200mA
I=200mA
1.5
0.5
ohm
ohm
Rise Time
Fall Time
Deadband Time
TLdrv(Rise)
TLdrv(Fall)
Tdead(H to SW going Low to Ldrv going
L) High, 10% to 10%
10% to 90%
90% to 10%
50
50
10
ns
ns
ns
Over temperature
Threshold
oC
oC
155
15
Hysteresis
Rev. 1.8
12/28/09
NX2147
PARAMETER
ENSW/MODE threshold and
bias current
SYM
Test Condition
Min
TYP
MAX Units
80%
VCC
60%
VCC
VCC+0
.3V
80%
VCC
60%
VCC
PFM/Non Synchronous Mode
Ultrasonic Mode
V
V
Leave it open or use limits in
spec
Synchronous Mode
Shutdown mode
2
0
V
V
0.8
ENSW/MODE=VCC
ENSW/MODE=GND
1
uA
uA
Input bias current
-1
Under voltage protection
Under voltage trigger point
Over voltage protection
Over voltage tripp point
Internal Schottky Diode
Forward voltage drop
70
%VP
%VP
mV
125
500
forward current=50mA
Rev. 1.8
12/28/09
NX2147
PIN DESCRIPTIONS
PIN NUMBER PIN SYMBOL
PIN DESCRIPTION
This pin is directly connected to the output of the switching regulator and
senses the VOUT voltage. An internal MOSFET with 20ohms rdson dis-
charges the output during turn off.
VOUT
1
This pin supplies the internal 5V bias circuit. A 1uF X7R ceramic capacitor is
placed as close as possible to this pin and ground pin.
VCC
VP
2
3
4
This pin is connected via resistor divider to VREF_OC pin to set the output
DC voltage from 0.5V to VREF 2.5V.
This pin is a drain of an internal signal MOSFET. When it is connected via
resistor to the VP pin,and the GPIO0 pin is set low, it reduces the VP
voltage by paralleling this resistor to the fixed resistor from VP to GND.
D1
This pin is a drain of an internal signal MOSFET. When it is connected via
resistor to the VP pin,and the GPIO_1 pin is set low, it reduces the VP
voltage by paralleling this resistor to the fixed resistor from VP to GND.
D0
5
6
GPIO1
A logic level input signal that controls the D1 pin. A low signal turns the
internal D1 MOSFET on and a High turns it off.
PGND
LDRV
7
8
Power ground.
Low side gate driver output.
Provide the voltage supply to the lower MOSFET drivers. Place a high
frequency decoupling capacitor 1uF X5R to this pin.
PVCC
9
Reference output voltage. A resistor divider from this pin to VP pin sets the
output voltage. The total resistance from this pin to GND also sets the OCP
threshold voltage. Note that when GPIO0 and GPIO1 pins are high the
reference divider is at its highest voltage. The nominal voltage of Vref is
2.5V.
VREF_OC
10
SW
HDRV
BST
11
12
13
14
15
This pin is connected to source of high side FETs and provide return path for
the high side driver. It is also the input of zero current sensing comparator.
High side gate driver output.
This pin supplies voltage to high side FET driver. A high freq 1uF X7R
ceramic capacitor and 2.2ohm resistor in series are recommended to be
placed as close as possible to and connected to this pin and SW pin.
GPIO0
A logic level input signal that controls the D0 pin. A low signal turns the
internal D0 MOSFET on and a High turns it off.
ENSW/
MODE
Switching converter enable input. Connect to VCC for PFM/Non synchronous
mode, connected to an external resistor divider equals to 70%VCC for ultra-
sonic, connected to GND for shutdown mode, floating or connected to 2V for
the synchronous mode.
TON
PAD
16
17
VIN sensing input. A resistor connects from this pin to VIN will set the fre-
quency. A 1nF capacitor from this pin to GND is recommended to ensure the
proper operation.
Analog ground.
Rev. 1.8
12/28/09
NX2147
BLOCK DIAGRAM
VCC(2)
Bias
4.3/4.1
Disable_B
POR
ODB
BST(13)
Thermal
shutdown
VIN
TON(16)
VIN
start
ON time
pulse
genearation
HDRV(12)
HD
VOUT
FET Driver
HD_IN
R
Q
S
SW(11)
1.8V
5V
PVCC(9)
VREF_OC(10)
LDRV(8)
Mini offtime
400ns
VREF
OCP_COMP
start
R1
R2
VP(3)
PGND(7)
POR
HD
Diode
emulation
soft start
FBUVLO_latch
VCC
1M
ENSW
/MODE(15)
Disable
8k
PFM_nonultrasonic
Sync
MODE
SELECTION
1M
VREF_OC
R1+R2
VOUT
OVP
OCP_COMP
1.25*Vref/0.7VREF
FB
AGND(PAD)
DO(5)
FBUVLO_latch
0.7*Vref
VOUT(1)
VOUT
SCHIMTTER
start
TRIGGER
GPIO0(14)
D1(4)
SCHIMTTER
TRIGGER
GPIO1(6)
Figure 2 - Simplified block diagram of the NX2147
Rev. 1.8
12/28/09
NX2147
TYPICAL APPLICATION
(VIN=7V to 22V, VOUT=1.09V/12A)
R6
499k
9
5V
PVCC
VCC
16
R1
10
TON
C5
1n
VIN 7V~22V
2
CI1
2x10uF
C1
1u
C2
1u
M1
12
13
HDRV
BST
FDS6294
R8
2.2
ENSW
/MODE
15
C6
1u
Lo
1uH
Vout (see table below) /12A
14
6
11
SW
GPIO0
GPIO1
CO1
2R5TPE330MC
330uF
M2
FDS6676AS
R7
10
C7
470p
8
7
LDRV
PGND
LOAD
10
VREF_OC
VP
R2
100k
3
C3
0.1u
R3
88.7k
R4
200k
4
C4
10n
D1
1
VOUT
R5
634k
5
D0
AGND
6
VOUT TABLE:
GPIO0 GPIO1 VOUT(V)
1
0
1
0
1
1
0
0
1.17
1.09
0.95
0.9
Figure 3 - Demo board schematic
Rev. 1.8
12/28/09
NX2147
Bill of Materials
Item
1
2
3
4
5
6
7
8
Quantity
Reference
Value
10uF/X5R/25V
2R5TPE330MC
1uF
0.1uF
10nF
Manufacture
SANYO
2
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
CI1
CO1
C1,C2
C3,C6
C4
C5
C7
Lo
M1
M2
R1
R2
R3
R4
R5
R6
R7
1nF
470p
RL-8250-1.4-1R0M RENCO
9
FDS6294
FDS6676AS
10
100k
88.7k
200k
634k
499k
10
2.2
FAIRCHILD
FAIRCHILD
10
11
12
13
14
15
16
17
18
19
R8
U1
NX2147
NEXSEM INC.
Rev. 1.8
12/28/09
NX2147
Demoboard waveforms
Fig.5 10A step response( CH1 VOUT AC 50mV/DIV,
CH4 Output current 5A/DIV)
Fig.4 Start up( CH1 VOUT 1V/DIV, CH4 Output
current 5A/DIV)
Fig.7 D0=0, D1 from low to high(CH1 D0 2V/DIV,
CH2 VOUT 0.1V/DIV 0.8V OFFSET, CH3 INDUC-
TOR CURRENT 5A/DIV, CH4 VP 0.1V/DIV 0.8V
OFFSET)
Fig.6 Soft turn off(CH1 ENSW 2V/DIV, CH2 VOUT
0.5V/DIV)
OUTPUT EFFICIENCY (VIN=12V,VOUT=1.09V)
95
90
85
80
75
70
65
60
55
50
10
100
1000
10000
Fig.8 D1=0, D0 from low to high(CH1 D0 2V/DIV,
CH2 VOUT 0.1V/DIV 0.8V OFFSET, CH3 INDUC-
TOR CURRENT 5A/DIV, CH4 VP 0.1V/DIV 0.8V
OFFSET)
OUTPUT CURRENT (mA)
Fig.9 Output efficiency
Rev. 1.8
12/28/09
NX2147
MLPQ 16 PIN 3 x 3 PACKAGE OUTLINE DIMENSIONS
SYMBOL
Dimensions In Millimeters
Dimensions In Inches
NAME
A
A1
A3
B
D
D2
E
MIN
0.700
0.000
MAX
0.800
0.050
MIN
0.028
0.000
MAX
0.031
0.002
0.203REF
0.008REF
0.180
2.950
1.600
2.950
1.600
0.300
3.050
1.750
3.050
1.750
0.007
0.116
0.063
0.116
0.063
0.012
0.120
0.069
0.120
0.069
E2
e
L
0.50BSC
1.5REF
0.50BSC
0.325
0.450
0.013
0.018
M
0.059REF
Rev. 1.8
12/28/09
厂商 型号 描述 页数 下载

ETC

 		NX2 P CLIP黑包100 Inhalt亲Packung ： 100 Stk阅读。\n[ P CLIP BLACK PACK 100 Inhalt pro Packung: 100 Stk. ] 1 页

AMPHENOL

 		NX2000C000J0G [ Barrier Strip Terminal Block ] 1 页

ETC

 		NX200105 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200106 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200107 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200108 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

NDK

 		NX2012SA 晶单元， OA / AV /移动通信[ Crystal Units, For OA / AV / Mobile Communications ] 1 页

NDK

 		NX2016AA 水晶单位对于OA / AV /短距离无线[ Crystal Units For OA / AV/ Short-range Wireless ] 1 页

NDK

 		NX2016AB 晶体单元[ Crystal Units ] 1 页

NDK

 		NX2016GC [ For Automotive ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.208665s
