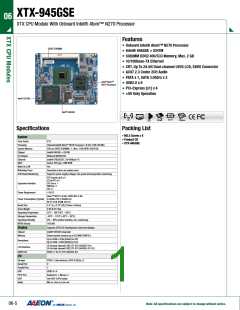

XTX-945GSE
06
XTX CPU Module With Onboard Intel® Atom™ N270 Processor
Features
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
Onboard Intel® Atom™ N270 Processor
Intel® 945GSE + ICH7M
SODIMM DDR2 400/533 Memory, Max. 2 GB
10/100Base-TX Ethernet
CRT, Up To 24-bit Dual-channel LVDS LCD, SDVO Connector
AC97 2.3 Codec 2CH Audio
PATA x 1, SATA 3.0Gb/s x 2
USB2.0 x 6
PCI-Express [x1] x 4
+5V Only Operation
DDR2 SODIMM
Intel® Atom™
N270 Processor
Intel® ICH7M
Intel® 945GSE
Specifications
System
Packing List
•ꢀM2.5 Screw x 4
•ꢀProduct CD
Form Factor
XTX
•ꢀXTX-945GSE
Processor
Onboard Intel® Atom™ N270 Processor 1.6 GHz, FSB 533 MHz
200-pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533)
Intel® 945GSE + ICH7M
System Memory
Chipset
I/O Chipset
Winbond W83627HG
Ethernet
Intel® EP82562ET, 10/100Base-TX
Award, SPI type, 2 MB ROM
BIOS
Wake On LAN
Watchdog Timer
H/W Status Monitoring
Yes
Generates a time-out system reset
Supports power supply voltages, fan speed and temperature monitoring
PCI-Express [x1] x 4
32-bit PCI x 4
LPC bus x 1
SM Bus x 1
Expansion Interface
Power Requirement
I2C x 1
+5V DC
Atom™ N270 1.6 GHz, DDR2 667 2 GB
Power Consumption (Typical) 0.44A@+12V, 2.60A@+5V
W/ TF-ECB-910M-A10-01
Board Size
4.5” (L) x 3.74” (W) (114mm x 95mm)
Gross Weight
0.66 lb (0.3 Kg)
Operating Temperature
Storage Temperature
Operating Humidity
MTBF (Hours)
32˚F ~ 140˚F (0˚C ~ 60˚C)
-40°F ~ 176°F (-40°C ~ 80°C)
0% ~ 90% relative humidity, non-condensing
104,000
Display
Supports CRT/LCD Simultaneous/ dual view displays
Chipset
Intel® 945GSE integrated
Memory
Shared system memory up to 224 MB/ DVMT3.0
Up to 2048 x 1536 (QXGA) for CRT
Up to 1600 x 1200 (UXGA) for LCD
Resolutions
18-bit dual-channel LVDS (TF-XTX-945GSE-A11)
24-bit dual-channel LVDS (TF-XTX-945GSE-A11-01)
LCD Interface
SDVO Port
SDVO x 1 for TF-XTX-945GSE-A11
I/O
Storage
Serial Port
Parallel Port
USB
PATA x 1 (two devices), SATA 3.0Gb/s x 2
2
1
USB2.0 x 6
PS/2 Port
IrDA
Keyboard x 1, Mouse x 1
One IrDA Tx/Rx header
Mic-in, Line-in, Line-out
Audio
06-5
Note: All specifications are subject to change without notice.
