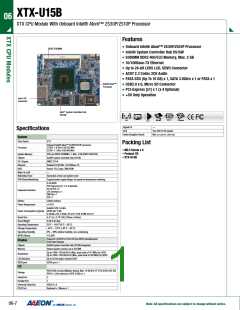

XTX-U15B
06
XTX CPU Module With Onboard Intel® Atom™ Z530P/Z510P Processor
Features
■■
Onboard Intel® Atom™ Z530P/Z510P Processor
DDR2 SODIMM
■■
■■
■■
■■
■■
■■
■■
■■
■■
Intel® System Controller Hub US15W
SODIMM DDR2 400/533 Memory, Max. 2 GB
10/100Base-TX Ethernet
Up to 24-bit LVDS LCD, SDVO Connector
AC97 2.3 Codec 2CH Audio
PATA SSD (Up To 16 GB) x 1, SATA 3.0Gb/s x 1 or PATA x 1
USB2.0 x 6, Micro SD Connector
PCI-Express [x1] x 1 (x 4 Optional)
+5V Only Operation
Intel® Atom™
Processor
micro SD
Connector
Intel® System Controller Hub
US15W
Digtial I/O
IrDA
—
Specifications
System
One IrDA Tx/Rx header
Mic-in, Line-in, Line-out
Audio (Daughter Board)
Form Factor
XTX
Packing List
Onboard Intel® Atom™ Z530P/Z510P processor
Z530P: 1.6 GHz/ FSB 533 MHz
Processor
•ꢀM2.5 Screw x 4
•ꢀProduct CD
•ꢀXTX-U15B
Z510P: 1.1 GHz/ FSB 400 MHz
System Memory
Chipset
200-pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533)
Intel® System Controller Hub US15W
SMSC 3114i
I/O Chipset
Ethernet
Realtek RTL8139D, 10/100Base-TX
Award, PLCC type, 2MB ROM
—
BIOS
Wake On LAN
Watchdog Timer
H/W Status Monitoring
Generates a time-out system reset
Supports power supply voltages, fan speed and temperature monitoring
4-bit SDIO
PCI Express [x1] x 1 (x 4 optional)
32-bit PCI x 4
LPC Interface x 1
SM Bus x 1
Expansion Interface
I2C x 1
Battery
Lithium battery
+5V DC
Power Requirement
Intel® Z530 1.6 GHz,
Power Consumption (Typical) DDR2 667 2 GB,
0.26A@+12V, 2.9A@+5V w/TF-ECB-910M-A10-01
Board Size
4.5" (L) x 3.74" (W) (114mm x 95mm)
0.66 lb (0.3kg)
Gross Weight
Operating Temperature
Storage Temperature
Operating Humidity
MTBF (Hours)
32°F ~ 140°F (0°C ~ 60°C)
-40°F ~ 176°F (-40°C ~ 80°C)
0% ~ 90% relative humidity, non-condensing
113,000
Supports LCD/DVI or LCD/LCD (via SDVO) simultaneous/
Dual View Displays
Display
Chipset
Memory
Intel® System Controller Hub US15W integrated
Shared system memory up to 256 MB
Up to 1366 x 768 @ 85 Hz (Max. pixel clock of 112 MHz) for LVDS
Up to 1280 x 1024 @ 85 Hz (Max. pixel clock of 160 MHz) for SDVO
Resolutions
LCD Interface
SDVO port
Up to 24-bit single-channel LVDS
SDVO port x 1
I/O
PATA SSD on board (Master device), Max. 16 GB (For TF-XTX-U15B-A10-02)
PATA x 1 (One device) or SATA 3.0Gb/s x 1
Storage
Serial Port
2
Parallel Port
Universal Serial Bus
PS/2 Port
1
USB2.0 x 6
Keyboard x 1,Mouse x 1
06-7
Note: All specifications are subject to change without notice.
