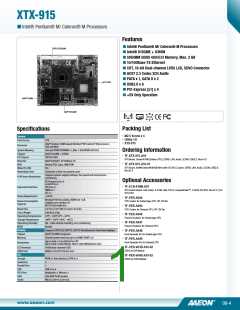

XTX-915
ꢀꢁIntel® Pentium® M/ Celeron® M Processors
Features
ꢀꢁIntel® Pentium® M/ Celeron® M Processors
DDRII SODIMM
ꢀꢁIntel® 915GME + ICH6M
ꢀꢁSODIMM DDRII 400/533 Memory, Max. 2 GB
ꢀꢁ10/100Base-TX Ethernet
ꢀꢁCRT, 18-bit Dual-channel LVDS LCD, SDVO Connector
ꢀꢁAC97 2.3 Codec 2CH Audio
ꢀꢁPATA x 1, SATA II x 2
µFC-PGA
ꢀꢁUSB2.0 x 6
ꢀꢁPCI-Express [x1] x 4
ꢀꢁ+5V Only Operation
Intel® ICH6M
Intel® 915GME
Packing List
Specifications
•ꢀ M2.5ꢀScrewꢀxꢀ4
•ꢀ UtilityꢀCD
System
Form Factor
Processor
XTX
•ꢀ XTX-915
Intel® (Socket-478M-based) Pentium® M/ Celeron® M processors,
FSB: 400 MHz
System Memory
Chipset
200-pin DDRII SODIMM x 1, Max. 2 GB (DDRII 400/533)
Intel® 915GME + ICH6M
Ordering Information
•ꢀ TF-XTX-915-A10
I/O Chipset
Ethernet
ITE IT8712KX
XTX Board, Socket-478M (Dothan CPU), DDRII, LAN, Audio, 2COM, USB2.0, Rev.A1.0
Intel® 82562ET, 10/100Base-TX
Award, PLCC type, 1MB ROM
Yes
•ꢀ TF-XTX-915-A10-01
XTX Board, Intel® Celeron® M 600 MHz with 512 KB L2 cache, DDRII, LAN, Audio, 2COM, USB2.0,
Rev.A1.0
BIOS
Wake On LAN
Watchdog Timer
Generates a time-out system reset
Supports power supply voltages, fan speed and temperature
monitoring
H/W Status Monitoring
Optional Accessories
PCI-Express [x1] x 4
32-bit PCI x 4
LPC bus x 1
SMBus x 1
•ꢀ TF-ECB-910M-A10
Expansion Interface
Power Requirement
XTX Carrier Board, LAN, Audio, 4 COM, USB, PCI-E, CompactFlash™, 2 SATA, AT/ ATX, Rev.A1.0 (For
XTX-915)
I2C x 1
+5V DC
•ꢀ TF-PER-A044
CPU Cooler, for Socket-type CPU, W/ 12V fan
Pentium®-M 760 2.0GHz, DDRII 533 1 GB
0.38A@+12V, 6.83A@+5V
W/ TF-ECB-910M-A10
Power Consumption
(Typical)
•ꢀ TF-PER-A045
CPU Cooler, for Onboard CPU, W/ 12V fan
Board Size
4.5” (L) x 3.74” (W) (114 mm x 95 mm)
0.66 lb (0.3 Kg)
Gross Weight
•ꢀ TF-PER-A046
Passive Heatsink, for Socket-type CPU
Operating Temperature
Storage Temperature
Operating Humidity
MTBF
32°F ~ 140°F (0°C ~ 60°C)
-40°F ~ 176°F (-40°C ~ 80°C)
•ꢀ TF-PER-A047
Passive Heatsink, for Onboard CPU
0% ~ 90% relative humidity, non-condensing
90,000
Display
Supports CRT/LCD, CRT/TV, LCD/TV Simultaneous/ Dual view displays
Intel® 915GME Integrated
•ꢀ TF-PER-A048
Heat Spreader Kit, for Socket-type CPU
Chipset
Memory
Shared system memory up to 128 MB/ DVMT 3.0
•ꢀ TF-PER-A049
Heat Spreader Kit, for Onboard CPU
Up to 2048 x 1536 (QXGA) for CRT
Up to 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) for LCD
Resolutions
•ꢀ TF-PER-V03B-A10-02
SDVO to DVI Module
LCD Interface
SDVO Port
I/O
18-bit dual-channel LVDS
SDVO x 1 for TF-XTX-915-A10
•ꢀ TF-PER-V04B-A10-02
SDVO to LVDS Module
Storage
Serial Port
Parallel Port
USB
PATA x 1 (two devices), SATA II x 2
2
1
USB 2.0 x 6
PS/2 Port
IrDA
Keyboard x 1, Mouse x 1
One IrDA Tx/Rx header
Mic-in, Line-in, Line-out
Audio
