2SK2113

型号:

2SK2113

品牌:

ETC[ ETC ]

页数:

2 页

PDF大小:

12 K

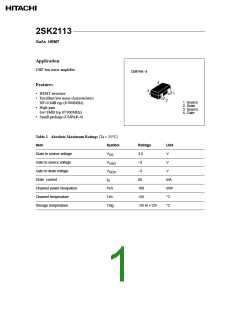

2SK2113
GaAs HEMT
Application
UHF low noise amplifier
CMPAK–4
4
Features
3
1
• HEMT structure
• Excellent low noise characteristics
NF=0.8dB typ (f=900MHz)
• High gain
Ga=18dB typ (f=900MHz)
• Small package (CMPAK-4)
2
1. Source
2. Drain
3. Source
4. Gate
Table 1 Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Ratings
Unit
———————————————————————————————————————————
Drain to source voltage
V
3.5
V
DS
———————————————————————————————————————————
Gate to source voltage
V
–3
V
GSO
———————————————————————————————————————————
Gate to drain voltage
V
–3
V
GDO
———————————————————————————————————————————
Drain current
I
60
mA
D
———————————————————————————————————————————
Channel power dissipation
Pch
100
mW
———————————————————————————————————————————
Channel temperature
Tch
125
°C
———————————————————————————————————————————
Storage temperature
Tstg
–55 to +125
°C
———————————————————————————————————————————
2SK2113
Table 2 Electrical Characteristics (Ta = 25°C)
Item
Symbol
Min
Typ
Max
Unit Test conditions
———————————————————————————————————————————
Gate to source leakage
I
-10
µA
V
= 0V, V
= -3V
GSS
DS
GS
current
———————————————————————————————————————————
Drain current
I
12
60
mA
V
= 2V, V
= 0
DSS
DS
GS
(Pulse Test)
———————————————————————————————————————————
Gate to source cutoff voltage
V
-0.3
-2.5
V
V
= 2 V, I = 100µA
GS(off)
DS D
———————————————————————————————————————————
Forward transfer admittance
|y |
30
50
mS
V
= 2 V, I = 10mA
fs
DS D
f=1kHz
———————————————————————————————————————————
Noise figure
NF
0.8
1.2
dB
V
= 2 V, I = 10mA
DS D
————————————————————————————————
Power gain
PG
15.5
18
dB
f=900MHz
———————————————————————————————————————————
