2SK3070(L)

型号：

2SK3070(L)

描述：

晶体管| MOSFET | N沟道| 40V V（ BR ） DSS | 75A I（ D） | TO- 262VAR\n[ TRANSISTOR | MOSFET | N-CHANNEL | 40V V(BR)DSS | 75A I(D) | TO-262VAR ]

品牌：

ETC[ ETC ]

页数：

12 页

PDF大小：

62 K

下载PDF手册

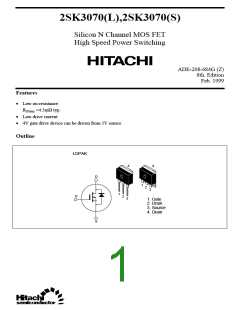

2SK3070(L),2SK3070(S)
Silicon N Channel MOS FET
High Speed Power Switching
ADE-208-684G (Z)
8th. Edition
Feb. 1999
Features
•
Low on-resistance
RDS(on) =4.5mΩ typ.
•
•
Low drive current
4V gate drive device can be driven from 5V source
Outline
LDPAK
4
4
D
1
2
3
1
G
2
3
1. Gate
2. Drain
3. Source
4. Drain
S
2SK3070(L),2SK3070(S)
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
40
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
VGSS
ID
±20
V
75
A
1
Note
Drain peak current
ID(pulse)
300
A
Body-drain diode reverse drain current IDR
75
A
3
Note
Avalanche current
Avalanche energy
Channel dissipation
Channel temperature
Storage temperature
IAP
50
A
3
Note
EAR
333
mJ
W
°C
°C
2
Pch Note
100
Tch
150
Tstg
–55 to +150
Note: 1. PW ≤ 10µs, duty cycle ≤ 1 %
2. Value at Tc = 25°C
3. Value at Tch = 25°C, Rg ≥ 50Ω
2
2SK3070(L),2SK3070(S)
Electrical Characteristics (Ta = 25°C)
Item
Symbol
Min
Typ
Max
Unit
Test Conditions
Drain to source breakdown
voltage
V(BR)DSS
40
—
—
V
ID = 10mA, VGS = 0
Gate to source leak current
IGSS
IDSS
—
—
—
—
±0.1
µA
µA
VGS = ±20V, VDS = 0
Zero gate voltege drain
current
10
VDS = 40 V, VGS = 0
1
Gate to source cutoff voltage VGS(off)
Static drain to source on state RDS(on)
resistance
1.0
—
—
50
—
—
—
—
—
—
—
—
—
—
—
—
2.5
5.8
10
—
—
—
—
—
—
—
—
—
—
—
—
V
ID = 1mA, VDS = 10VNote
1
4.5
mΩ
mΩ
S
ID = 40A, VGS = 10VNote
1
6.5
ID = 40A, VGS = 4VNote
1
Forward transfer admittance |yfs|
80
ID = 40A, VDS = 10VNote
Input capacitance
Output capacitance
Ciss
6800
1300
380
130
25
pF
pF
pF
nc
nc
nc
ns
ns
ns
ns
V
VDS = 10V
VGS = 0
Coss
Reverse transfer capacitance Crss
f = 1MHz
Total gate charge
Gate to source charge
Gate to drain charge
Turn-on delay time
Rise time
Qg
Qgs
Qgd
td(on)
tr
VDD = 25V
VGS = 10V
ID = 75A
30
60
VGS = 10V, ID = 40A
RL = 0.75Ω
300
550
400
1.05
Turn-off delay time
Fall time
td(off)
tf
Body–drain diode forward
voltage
VDF
IF = 75A, VGS = 0
Body–drain diode reverse
recovery time
trr
—
90
—
ns
IF = 75A, VGS = 0
diF/ dt =50A/µs
Note: 1. Pulse test
3
2SK3070(L),2SK3070(S)
Main Characteristics
Power vs. Temperature Derating
Maximum Safe Operation Area
200
150
100
50
1000
300
100
30
10
3
Operation in
this area is
limited by R
DS(on)
1
0.3
0.1
Ta = 25°C
0
3
Drain to Source Voltage
30
50
100
150
200
0.1 0.3
1
10
100
V
(V)
DS
Case Temperature Tc (°C)
Typical Transfer Characteristics
Typical Output Characteristics
100
80
60
40
20
100
80
60
40
20
4 V
V
= 10 V
DS
Pulse Test
3.5 V
5 V
Pulse Test
V
GS
= 10 V
3 V
75°C
25°C
Tc = –25°C
2.5 V
0
0
1
2
3
4
5
2
4
6
8
10
Gate to Source Voltage
V
(V)
GS
Drain to Source Voltage
V
(V)
DS
4
2SK3070(L),2SK3070(S)
Drain to Source Saturation Voltage vs.
Gate to Source Voltage
Static Drain to Source on State Resistance
vs. Drain Current
100
0.5
0.4
0.3
0.2
0.1
Pulse Test
Pulse Test
50
20
10
5
I
= 50 A
D
V
= 4 V
GS
10 V
20 A
16
2
1
10 A
1
3
1000
12
Gate to Source Voltage
300
(A)
0
10
Drain Current
4
8
20
30 100
V
(V)
I
GS
D
Forward Transfer Admittance vs.
Drain Current
Static Drain to Source on State Resistance
vs. Temperature
500
20
Pulse Test
V
= 10 V
DS
200 Pulse Test
16
12
8
100
50
Tc = –25 °C
I
= 50 A
D
20
10
5
V
= 10 V
GS
10, 20 A
25 °C
75 °C
2
1
10, 20, 50 A
4
0
4 V
0.5
0.1 0.3
–50
0
50
100
150
200
1
3
10
D
30
100
Case Temperature Tc (°C)
Drain Current
I
(A)
5
2SK3070(L),2SK3070(S)
Body–Drain Diode Reverse
Typical Capacitance vs.
Drain to Source Voltage
Recovery Time
30000
10000
1000
V
GS
= 0
f = 1 MHz
500
Ciss
200
100
50
3000
1000
Coss
Crss
300
100
20
di / dt = 50 A / µs
V
= 0, Ta = 25 °C
GS
10
0.1 0.3
1
3
10
30
(A)
100
0
10
20
30
40
50
Reverse Drain Current
I
DR
Drain to Source Voltage V
(V)
DS
Dynamic Input Characteristics
= 75 A
Switching Characteristics
1000
500
100
80
60
40
20
20
I
D
t
d(off)
V
GS
16
12
8
t
f
200
100
50
V
= 40 V
25 V
DD
t
r
10 V
V
DS
t
d(on)
V
= 40 V
25 V
4
0
DD
20
10
V
= 10 V, V
= 30 V
DD
GS
PW = 5 µs, duty < 1 %
10 V
10 20 50 100
2
5
0
1
0.5
80
160
240
320
400
0.1 0.2
Gate Charge Qg (nc)
Drain Current
I
(A)
D
6
2SK3070(L),2SK3070(S)
Reverse Drain Current vs.
Source to Drain Voltage
Maximun Avalanche Energy vs.
Channel Temperature Derating
500
400
300
200
100
80
60
40
20
I
= 50 A
AP
10 V
5 V
V
= 25 V
DD
duty < 0.1 %
Ω
Rg > 50
V
= 0, –5 V
GS
100
0
p
X “ Ł
1.6 2.0
0
0.4
0.8
1.2
25
50
75
100
125
150
Source to Drain Voltage
V
(V)
Channel Temperature Tch (°C)
SD
Avalanche Test Circuit
Avalanche Waveform
V
DSS
– V
1
2
2
E
=
• L • I
•
AP
AR
V
DSS
DD
L
V
DS
Monitor
I
AP
V
(BR)DSS
Monitor
I
AP
Rg
V
V
DD
D. U. T
DS
I
D
Vin
15 V
50Ω
V
DD
0
7
2SK3070(L),2SK3070(S)
Normalized Transient Thermal Impedance vs. Pulse Width
3
1
Tc = 25°C
D = 1
0.5
0.3
0.1
θ
θ
γ
θ
ch – c(t) = s (t) • ch – c
ch – c = 1.25 °C/W, Tc = 25 °C
PW
T
P
DM
D =
0.03
0.01
PW
T
10 µ
100 µ
1 m
10 m
100 m
1
10
Pulse Width PW (S)
Switching Time Test Circuit
Waveform
Vout
Monitor
Vin Monitor
D.U.T.
90%
R
L
10%
10%
90%
Vin
V
DD
Vin
10 V
Vout
10%
50Ω
= 30 V
90%
td(off)
td(on)
t
f
tr
8
2SK3070(L),2SK3070(S)
Package Dimensions
As of January, 2001
Unit: mm
4.44 ± 0.2
1.3 ± 0.15
10.2 ± 0.3
2.59 ± 0.2
1.2 ± 0.2
1.27 ± 0.2
+ 0.2
– 0.1
0.86
0.76 ± 0.1
2.54 ± 0.5
0.4 ± 0.1
2.54 ± 0.5
Hitachi Code
JEDEC
LDPAK (L)
—
EIAJ
—
Mass (reference value)
1.4 g
9
2SK3070(L),2SK3070(S)
As of January, 2001
Unit: mm
4.44 ± 0.2
7.8
6.6
10.2 ± 0.3
1.3 ± 0.15
+ 0.2
– 0.1
0.1
2.2
1.27 ± 0.2
0.4 ± 0.1
+ 0.2
– 0.1
1.2 ± 0.2
0.86
2.54 ± 0.5
2.54 ± 0.5
Hitachi Code
JEDEC
LDPAK (S)-(1)
—
EIAJ
—
Mass (reference value)
1.3 g
10
2SK3070(L),2SK3070(S)
As of January, 2001
Unit: mm
4.44 ± 0.2
7.8
6.6
10.2 ± 0.3
1.3 ± 0.2
+ 0.2
– 0.1
0.1
2.2
1.27 ± 0.2
0.4 ± 0.1
+ 0.2
1.2 ± 0.2
2.54 ± 0.5
0.86
– 0.1
2.54 ± 0.5
Hitachi Code
LDPAK (S)-(2)
JEDEC
—
EIAJ
—
Mass (reference value)
1.35 g
11
2SK3070(L),2SK3070(S)
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
Asia
: http://semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
: http://sicapac.hitachi-asia.com
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive, Dornacher Straβe 3
Hitachi Europe GmbH
Electronic Components Group
Hitachi Asia Ltd.
Hitachi Tower
16 Collyer Quay #20-00,
Singapore 049318
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower,
San Jose,CA 95134
D-85622 Feldkirchen, Munich
World Finance Centre,
Tel: <1> (408) 433-1990 Germany
Fax: <1>(408) 433-0223 Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Tel : <65>-538-6533/538-8577
Fax : <65>-538-6933/538-3877
URL : http://www.hitachi.com.sg
Harbour City, Canton Road
Tsim Sha Tsui, Kowloon,
Hong Kong
Tel : <852>-(2)-735-9218
Fax : <852>-(2)-730-0281
URL : http://www.hitachi.com.hk
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Hitachi Asia Ltd.
(Taipei Branch Office)
4/F, No. 167, Tun Hwa North Road,
Hung-Kuo Building,
Taipei (105), Taiwan
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 585160
Tel : <886>-(2)-2718-3666
Fax : <886>-(2)-2718-8180
Telex : 23222 HAS-TP
URL : http://www.hitachi.com.tw
Copyright Hitachi, Ltd., 2000. All rights reserved. Printed in Japan.
Colophon 2.0
12
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.238825s
