2SK3434-ZJ

型号：

2SK3434-ZJ

描述：

晶体管| MOSFET | N沟道| 60V V（ BR ） DSS | 48A I（ D） | TO- 263AB\n[ TRANSISTOR | MOSFET | N-CHANNEL | 60V V(BR)DSS | 48A I(D) | TO-263AB ]

品牌：

ETC[ ETC ]

页数：

8 页

PDF大小：

81 K

下载PDF手册

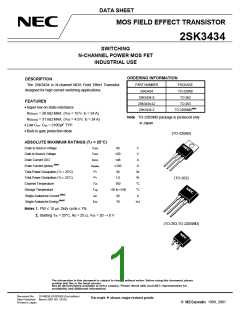

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK3434
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
ORDERING INFORMATION
DESCRIPTION
PART NUMBER
2SK3434
PACKAGE
TO-220AB
TO-262
The 2SK3434 is N-channel MOS Field Effect Transistor
designed for high current switching applications.
2SK3434-S
2SK3434-ZJ
2SK3434-Z
FEATURES
TO-263
• Super low on-state resistance
RDS(on)1 = 20 mΩ MAX. (VGS = 10 V, ID = 24 A)
RDS(on)2 = 31 mΩ MAX. (VGS = 4.0 V, ID = 24 A)
• Low Ciss: Ciss = 2100 pF TYP.
• Built-in gate protection diode
TO-220SMDNote
Note TO-220SMD package is produced only
in Japan.
(TO-220AB)
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage
VDSS
VGSS
ID(DC)
ID(pulse)
PT
60
±20
V
V
Gate to Source Voltage
Drain Current (DC)
±48
A
Drain Current (pulse) Note1
Total Power Dissipation (TC = 25°C)
Total Power Dissipation (TA = 25°C)
Channel Temperature
±120
56
A
W
PT
1.5
W
°C
°C
A
(TO-262)
Tch
150
Storage Temperature
Tstg
IAS
–55 to +150
28
Single Avalanche Current Note2
Single Avalanche Energy Note2
EAS
78
mJ
Notes 1. PW ≤ 10 µs, Duty cycle ≤ 1%
2. Starting Tch = 25°C, RG = 25 Ω, VGS = 20 → 0 V
(TO-263,TO-220SMD)
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No.
Date Published March 2001 NS CP(K)
Printed in Japan
D14603EJ2V0DS00 (2nd edition)
The mark ★ shows major revised points.
1999, 2001
©
2SK3434
ELECTRICAL CHARACTERISTICS (TA = 25 °C)
CHARACTERISTICS
Zero Gate Drain Current
SYMBOL
IDSS
TEST CONDITIONS
VDS = 60 V, VGS = 0 V
MIN. TYP. MAX. UNIT
10
µA
V
Gate Cut-off Voltage
VGS(off)
| yfs |
RDS(on)1
RDS(on)2
Ciss
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 24 A
VGS = 10 V, ID = 24 A
VGS = 4.0 V, ID = 24 A
VDS = 10 V
1.5
13
2.0
27
2.5
Forward Transfer Admittance
Drain to Source On-state Resistance
S
16
20
31
mΩ
mΩ
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
22
Input Capacitance
2100
340
170
40
Output Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
Coss
Crss
VGS = 0 V
f = 1MHz
td(on)
tr
td(off)
tf
VDD = 30 V, ID = 24 A
VGS(on) = 10 V
400
120
160
40
Turn-off Delay Time
Fall Time
RG = 10 Ω
Total Gate Charge
QG
VDD = 48 V
Gate to Source Charge
Gate to Drain Charge
Body Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
QGS
QGD
VF(S-D)
trr
VGS = 10 V
7
ID = 48 A
11
IF = 48 A, VGS = 0 V
IF = 48 A, VGS = 0 V
di/dt = 100 A/µs
1.0
43
ns
nC
Qrr
61
TEST CIRCUIT 1 AVALANCHE CAPABILITY
TEST CIRCUIT 2 SWITCHING TIME
D.U.T.
D.U.T.
L
RG
= 25 Ω
V
GS
R
L
90%
GS(on)
PG.
V
GS
V
10%
V
DD
50 Ω
Wave Form
0
RG
V
GS = 20 V → 0 V
PG.
V
DD
90%
I
D
90%
10%
BVDSS
I
D
I
AS
V
0
GS
10%
I
D
0
V
DS
Wave Form
I
D
t
r
t
t
d(on)
d(off)
t
f
VDD
τ
t
on
toff
τ = 1µs
Starting Tch
Duty Cycle ≤ 1%
TEST CIRCUIT 3 GATE CHARGE
D.U.T.
I
G
= 2 mA
RL
PG.
V
DD
50 Ω
2
Data Sheet D14603EJ2V0DS
2SK3434
TYPICAL CHARACTERISTICS (TA = 25°C )
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
70
60
100
80
60
40
20
0
50
40
30
20
10
0
0
20
40 60
80 100 120 140 160
20 40
60
80 100 120 140 160
0
T
ch - Channel Temperature - ˚C
T
C
- Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
★
1000
100
10
I
D(pulse)
PW
=
10
100
µ
s
1
µ
ms
s
Limited
I
D(DC)
10
ms
S = 10 V)
RDS(on)
(at V
G
DC
P
o
w
Limited
er Dissipation
1
TC
= 25˚C
Single Pulse
0.1
0.1
1
10
DS - Drain to Source Voltage - V
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
100
V
1000
100
10
Rth(ch-A) = 83.3˚C/W
Rth(ch-C) = 2.23˚C/W
1
0.1
0.01
Single Pulse
100 1000
µ
10
1 m
10 m
PW - Pulse Width - s
Data Sheet D14603EJ2V0DS
100 m
1
10
100
µ
3
2SK3434
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
FORWARD TRANSFER CHARACTERISTICS
Pulsed
1000
100
50
40
30
20
T
A
= −40˚C
25˚C
10
1
75˚C
V
GS =10 V
150˚C
V
GS = 4.0 V
10
0
Pulsed
V
DS = 10 V
5.0
0.1
0
0.2
0.4
0.6
0.8
6.0
1.0
2.0
3.0
4.0
VDS - Drain to Source Voltage - V
V
GS - Gate to Source Voltage - V
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
100
10
50
V
DS = 10 V
Pulsed
Pulsed
40
30
20
10
0
T
A
= −40˚C
25˚C
1
75˚C
I = 24 A
D
150˚C
0.1
0.01
0.01
0.1
1
10
100
5
10
15
20
0
ID - Drain Current - A
VGS - Gate to Source Voltage - V
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
GATE TO SOURCE THRESHOLD VOLTAGE vs.
CHANNEL TEMPERATURE
40
30
3.0
Pulsed
V
DS = 10 V
= 1 mA
I
D
2.5
2.0
1.5
1.0
V
GS = 4.0 V
20
10
0
V
GS = 10 V
0.5
0
1
10
100
1000
−50
0
50
100
150
I
D - Drain Current - A
T
ch - Channel Temperature - ˚C
4
Data Sheet D14603EJ2V0DS
2SK3434
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
60
50
40
30
20
1000
100
10
Pulsed
Pulsed
V
GS = 10 V
V
GS = 4.0 V
V
GS = 0 V
VGS = 10 V
1.0
0.1
10
0
0
1.5
1.0
- Source to Drain Voltage - V
0.5
100
150
0
50
−50
V
SD
T
ch - Channel Temperature - ˚C
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
10000
1000
1000
V
GS = 0 V
f = 1 MHz
t
r
t
d(off)
Ciss
100
10
1
t
f
t
d(on)
Coss
100
10
Crss
V
V
DD = 30 V
GS = 10 V
RG = 10 Ω
0.1
1
10
100
0.1
1
10
100
I
D
- Drain Current - A
V
DS - Drain to Source Voltage - V
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
16
1000
100
80
70
60
50
40
30
20
µ
di/dt = 100 A/ s
GS = 0 V
V
14
12
10
8
V
GS
V
DD = 48 V
30 V
12 V
6
10
1
4
V
DS
2
10
0
0.1
1
10
100
5
10
Q
15 20 25 30
35 40
0
I
D
- Drain Current - A
G
- Gate Charge - nC
5
Data Sheet D14603EJ2V0DS
2SK3434
SINGLE AVALANCHE ENERGY
DERATING FACTOR
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
100
10
160
140
120
100
80
V
R
V
I
DD = 30 V
= 25 Ω
GS = 20 → 0 V
AS ≤ 28 A
G
I
AS = 28A
EAS
=
78
mJ
60
1
40
V
DD = 30V
= 25 Ω
GS = 20 →0 V
20
R
G
V
0.1
10
0
µ
100
µ
1m
10m
25
50
75
100
125
150
L - Inductive Load - H
Starting Tch - Starting Channel Temperature - ˚C
6
Data Sheet D14603EJ2V0DS
2SK3434
PACKAGE DRAWINGS (Unit: mm)
1) TO-220AB(MP-25)
2) TO-262(MP-25 Fin Cut)
4.8 MAX.
4.8 MAX.
1.3±0.2
10.6 MAX.
(10)
4
φ
3.6±0.2
1.3±0.2
10.0
1
2
3
4
1
2 3
1.3±0.2
1.3±0.2
2.8±0.2
0.5±0.2
1.Gate
0.75±0.3
2.54 TYP.
2.54 TYP.
0.75±0.1
0.5±0.2
2.8±0.2
2.Drain
2.54 TYP.
2.54 TYP.
3.Source
4.Fin (Drain)
1.Gate
2.Drain
3.Source
4.Fin (Drain)
3) TO-263 (MP-25ZJ)
4) TO-220SMD(MP-25Z)Note
4.8 MAX.
(10)
4
4.8 MAX.
(10)
4
1.3±0.2
1.3±0.2
1.4±0.2
1.0±0.3
1.4±0.2
0.7±0.2
0.5±0.2
0.5±0.2
2.54 TYP.
2.54 TYP.
3
1
2
2.54 TYP.
2.54 TYP.
3
1
2
1.Gate
2.Drain
3.Source
1.Gate
2.Drain
3.Source
4.Fin (Drain)
4.Fin (Drain)
Note This package is produced only in Japan.
EQUIVALENT CIRCUIT
Remark The diode connected between the gate and source of the transistor
serves as a protector against ESD. When this device actually used,
an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
Drain
Body
Diode
Gate
Gate
Protection
Diode
7
Data Sheet D14603EJ2V0DS
Source
2SK3434
•
The information in this document is current as of March, 2001. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC's data sheets or data
books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all products
and/or types are available in every country. Please check with an NEC sales representative for
availability and additional information.
•
•
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
•
•
•
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.214119s
