TDA-2009A

型号：

TDA-2009A

描述：

10 10W立体声放大器[ 10 10W STEREO AMPLIFIER ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

12 页

PDF大小：

575 K

下载PDF手册

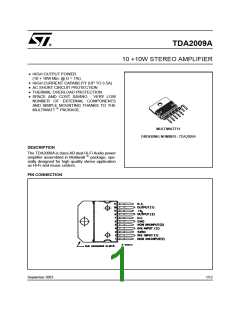

TDA2009A
®
10 +10W STEREO AMPLIFIER
.
HIGH OUTPUT POWER
(10 + 10W Min. @ D = 1%)
.
.
.
.
HIGH CURRENT CAPABILITY (UP TO 3.5A)
AC SHORT CIRCUIT PROTECTION
THERMAL OVERLOAD PROTECTION
SPACE AND COST SAVING : VERY LOW
NUMBER OF EXTERNAL COMPONENTS
AND SIMPLE MOUNTING THANKS TO THE
MULTIWATT PACKAGE.
MULTIWATT11
ORDERING NUMBER :
TDA2009A
DESCRIPTION
The TDA2009A is class AB dual Hi-Fi Audio power
amplifier assembled in Multiwatt package, spe-
cially designed for high quality stereo application
as Hi-Fi and music centers.
PIN CONNECTION
1/12
September 2003
TDA2009A
SCHEMATIC DIAGRAM
2/12
TDA2009A
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
V
Vs
Io
Supply Voltage
28
3.5
Output Peak Current (repetitive f ≥ 20 Hz)
Output Peak Current (non repetitive, t = 100 µs)
Power Dissipation at Tcase = 90 °C
A
Io
4.5
A
Ptot
Tstg, Tj
20
W
°C
Storage and Junction Temperature
– 40, + 150
THERMAL DATA
Symbol
Parameter
Value
Unit
Rth j-case
Thermal Resistance Junction-case
Max.
3
°C/W
ELECTRICAL CHARACTERISTICS
(refer to the stereo application circuit, Tamb = 25oC, VS = 24V, GV = 36dB, unless otherwise specified)
Symbol
Parameter
Test Conditions
Min. Typ. Max. Unit
Vs
Vo
Id
Supply Voltage
8
28
V
V
Quiescent Output Voltage
Total Quiescent Drain Current
Output Power (each channel)
Vs = 24V
11.5
60
Vs = 24V
120
mA
Po
d = 1%, Vs = 24V, f = 1kHz
RL = 4Ω
12.5
7
W
W
RL = 8Ω
f = 40Hz to 12.5kHz
RL = 4Ω
10
5
W
W
RL = 8Ω
Vs = 18V, f = 1kHz
RL = 4Ω
7
4
W
W
RL = 8Ω
d
Distortion (each channel)
Cross Talk (3)
f = 1kHz, Vs = 24V
Po = 0.1 to 7W
Po = 0.1 to 3.5W
Vs = 18V
RL = 4Ω
0.2
0.1
%
%
RL = 8Ω
Po = 0.1 to 5W
Po = 0.1 to 2.5W
RL = 4 Ω
RL = 8Ω
0.2
0.1
%
%
CT
RL = ∞, Rg = 10kΩ
f = 1kHz
f = 10kHz
dB
60
50
Vi
Ri
Input Saturation Voltage (rms)
Input Resistance
300
70
mV
kΩ
Hz
f = 1kHz, Non Inverting Input
200
20
fL
Low Frequency Roll off (– 3dB)
High Frequency Roll off (– 3dB)
Voltage Gain (closed loop)
Closed Loop Gain Matching
Total Input Noise Voltage
RL = 4Ω
RL = 4Ω
f = 1kHz
fH
80
kHz
dB
Gv
∆Gv
eN
35.5
36
36.5
8
0.5
dB
Rg = 10kΩ (1)
Rg = 10kΩ (2)
1.5
2.5
µV
µV
SVR
TJ
Supply Voltage Rejection (each channel)
Thermal Shut-down Junction Temperature
Rg = 10kΩ
fripple = 100Hz, Vripple = 0.5V
55
dB
145
°C
Notes :
1.
2.
Curve A
22Hz to 22kHz
3/12
TDA2009A
Figure 1 :
Test and Application Circuit (GV = 36dB)
Figure 2 :
P.C. board and component layout of the fig. 1
4/12
TDA2009A
Figure 3 :
Figure 5 :
Figure 7 :
Figure 4 :
Figure 6 :
Figure 8 :
Output Power versus Supply Voltage
Distortion versus Output Power
Distortion versus Frequency
Output Power versus Supply Voltage
Distortion versus Frequency
Quiescent Current versus
Supply Voltage
5/12
TDA2009A
Figure 9 :
Figure 10 :
Supply Voltage Rejection versus
Frequency
Total Power Dissipation and
Efficiency versus Output Power
Figure 11 :
Total Power Dissipation and
Efficiency versus Output Power
APPLICATION INFORMATION
Figure 12 :
Example of Muting Circuit
6/12
TDA2009A
Figure 13 :
10W +10W Stereo Amplifier with Tone Balance and Loudness Control
Figure 14 :
Tone Control Response
(circuit of Figure 13)
7/12
TDA2009A
Figure 15 :
High Quality 20 + 20W Two Way Amplifier for Stereo Music Center (one channel only)
Figure 16 :
18W Bridge Amplifier (d = 1%, GV = 40dB)
8/12
TDA2009A
Figure 17 :
P.C. BOARD and Components Layout of the Circuit of Figure 16 (1:1 scale)
APPLICATION SUGGESTION
The recommended values of the components are those shown on application circuit of fig. 1. Different
values can be used ; the following table can help the designer.
Recommended
Component
Purpose
Larger than
Increase of Gain
Smaller than
Value
1.2kΩ
18kΩ
1Ω
R1, R3
R2, R4
R5, R6
Close Loop Gain
Setting (1)
Decrease of Gain
Increase of Gain
Decrease of Gain
Frequency Stability
Danger of Oscillation at High
Frequency with Inductive Load
C1, C2
2.2µF
Input DC Decoupling High Turn-on Delay
High Turn-on Pop.
Higher Low Frequency
Cut-off. Increase of Noise
C3
22µF
220µF
0.1µF
Ripple Rejection
Better SVR. Increase of the
Switch-on Time
Degradation of SVR
C6, C7
Feedback Input DC
Decoupling
C8, C9
Frenquency Stability
Danger of Oscillation
C10, C11
1000µF to
2200µF
Output DC
Decoupling
Higher Low-frequency
Cut-off
(1) The closed loop gain must be higher than 26dB.
BUILD-IN PROTECTION SYSTEMS
THERMAL SHUT-DOWN
The presence of a thermal limiting circuit offers the
following advantages:
1) an averload on the output (even if it is
permanent), or an excessive ambient
temperature can be easily withstood.
The maximum allowable power dissipation de-
pends upon the size of the external heatsink (i.e.
its thermal resistance); Figure 18 shows this dissi-
pable power as a function of ambient temperature
for different thermal resistance.
2) the heatsink can have a smaller factor of safety
compared with that of a conventional circuit.
There is no device damage in the case of
excessive junction temperature : all that
happens is that Po (and therefore Ptot) and Io are
reduced.
Short circuit (AC Conditions). The TDA2009A can
withstand an accidental short circuit fromthe output
and ground made by a wrong connection during
normal play operation.
9/12
TDA2009A
MOUNTING INSTRUCTIONS
The power dissipated in the circuit must be re-
moved by adding an external heatsink.
the heatsink is very simple, a screw or a compres-
sion spring (clip) being sufficient. Between the
heatsinkand the package itis better to inserta layer
of silicon grease, to optimize the thermal contact ;
no electrical isolation is needed between the two
Thanks to the MULTIWATT package attaching
Figure 18 :
Figure 19 :
Maximum Allowable Power Dissipa-
tion versus Ambient Temperature
Output Power versus Case
Temperature
Figure 20 :
Output Power and Drain Current ver-
sus Case Temperature
10/12
TDA2009A
mm
inch
DIM.
OUTLINE AND
MIN. TYP. MAX. MIN. TYP. MAX.
MECHANICAL DATA
A
B
5
0.197
0.104
0.063
2.65
1.6
C
D
1
0.039
E
0.49
0.88
1.45
16.75
19.6
0.55 0.019
0.95 0.035
0.022
0.037
F
G
1.7
17
1.95 0.057 0.067 0.077
17.25 0.659 0.669 0.679
0.772
G1
H1
H2
L
20.2
0.795
21.9
21.7
17.4
22.2
22.1
22.5 0.862 0.874 0.886
22.5 0.854 0.87 0.886
L1
L2
L3
L4
L7
M
18.1 0.685
0.713
17.25 17.5 17.75 0.679 0.689 0.699
10.3
2.65
4.25
4.73
1.9
10.7
10.9 0.406 0.421 0.429
2.9 0.104 0.114
4.55
5.08
4.85 0.167 0.179 0.191
5.43 0.186 0.200 0.214
M1
S
2.6
2.6
0.075
0.075
0.102
0.102
0.152
S1
Dia1
1.9
Multiwatt11 V
3.65
3.85 0.144
11/12
TDA2009A
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied.STMicroelectronics productsarenot authorizedforuseas critical components in life supportdevicesorsystems
without express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics.
All other names are the property of their respective owners
© 2003 STMicroelectronics - All rights reserved
STMicroelectronics GROUP OF COMPANIES
Australia – Belgium - Brazil - Canada - China – Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Ja-
pan - Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States
www.st.com
12/12
