TDA 16846

型号：

TDA 16846

描述：

控制器的开关电源支持低功耗待机和功率因数校正[ Controller for Switch Mode Power Supplies Supporting Low Power Standby and Power Factor Correction ]

品牌：

INFINEON[ Infineon ]

页数：

28 页

PDF大小：

333 K

下载PDF手册

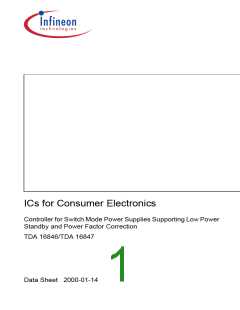

ICs for Consumer Electronics
Controller for Switch Mode Power Supplies Supporting Low Power
Standby and Power Factor Correction
TDA 16846/TDA 16847
Data Sheet 2000-01-14
TDA 16846/TDA 16847
Revision History:
Current Version: 2000-01-14
Previous Version: 1999-07-05
Page
Page
Subjects (major changes since last revision)
(in previous (in current
Version)
3
Version)
3, 28
P-DSO package added
Edition 01.00
Published by Infineon Technologies AG i. Gr.,
St.-Martin-Strasse 53
D-81541 München
©
Infineon Technologies AG 2000
All Rights Reserved.
Attention please!
The information herein is given to describe certain components and shall not be considered as warranted characteristics.
Terms of delivery and rights to technical change reserved.
We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and
charts stated herein.
Infineon Technologiesis an approved CECC manufacturer.
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office
in Germany or our Infineon Technologies Representatives worldwide (see address list).
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in question please contact
your nearest Infineon Technologies Office.
Infineon Technologies Components may only be used in life-support devices or systems with the express written approval of Infineon Tech-
nologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system, or to affect
the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body, or to
support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other
persons may be endangered.
Controller for Switch Mode Power Supplies
Supporting Low Power Standby and Power
Factor Correction
TDA 16846
TDA 16847
Preliminary Data
Bipolar IC
1
Overview
1.1
Features
• Line Current Consumption with PFC
• Low Power Consumption
• Stable and Adjustable Standby Frequency
• Very Low Start-up Current
• Soft-Start for Quiet Start-up
• Free usable Fault Comparators
P-DIP-14-3
P-DSO-14-3
• Synchronization and Fixed Frequency Facility
• Over- and Undervoltage Lockout
• Switch Off at Mains Undervoltage
• Temporary high power circuit (only TDA 16847)
• Mains Voltage Dependent Fold Back Point Correction
• Continuous Frequency Reduction with Decreasing Load
• Adjustable and Voltage Dependent Ringing Suppression Time
Type
Ordering Code
Q67000-A9377
Q67000-A9378
Q67006-A9430
Q67006-A9412
Package
TDA 16846
TDA 16847
TDA 16846G
TDA 16847G
P-DIP-14-3
P-DIP-14-3
P-DSO-14-3
P-DSO-14-3
1.2
Description
The TDA 16846 is optimized to control free running or fixed frequency flyback converters
with or without Power Factor Correction (Current Pump). To provide low power
consumption at light loads, this device reduces the switching frequency continuously
with load, towards an adjustable minimum (e. g. 20 kHz in standby mode). Additionally,
the start up current is very low. To avoid switching stresses of the power devices, the
power transistor is always switched on at minimum voltage. A special circuit is
implemented to avoid jitter. The device has several protection functions: VCC over- and
undervoltage, mains undervoltage, current limiting and 2 free usable fault comparators.
Regulation can be done by using the internal error amplifier or an opto coupler feedback
(additional input). The output driver is ideally suited for driving a power MOSFET, but it
can also be used for a bipolar transistor. Fixed frequency and synchronized operation
are also possible.
Data Sheet
3
2000-01-14
TDA 16846
TDA 16847
The TDA 16846 is suited for TV-, VCR- sets and SAT receivers. It also can be good used
in PC monitors.
The TDA 16847 is identical with TDA 16846 but has an additional power measurement
output (pin 8) which can be used for a Temporary High Power Circuit.
OTC
PCS
RZI
1
2
3
4
5
6
7
14
13
12
11
10
9
VCC
OUT
GND
PVC
SRC
OCI
FC1
FC2
SYN
REF
8
N.C./PMO
AEP02647
Figure 1
1.3
Pin Configuration (top view)
Pin Definitions and Functions
Symbol Function
Pin
1
OTC
Off Time Circuit
2
PCS
RZI
Primary Current Simulation
3
Regulation and Zero Crossing Input
Soft-Start and Regulation Capacitor
Opto Coupler Input
4
SRC
OCI
5
6
FC2
Fault Comparator 2
7
SYN
N.C./PMO
REF
FC1
Synchronization Input
Not Connected (TDA 16846)/PMO (TDA 16847)
Reference Voltage and Current
Fault Comparator 1
8
9
10
11
12
13
14
PVC
GND
OUT
VCC
Primary Voltage Check
Ground
Output
Supply Voltage
Data Sheet
4
2000-01-14
TDA 16846
TDA 16847
1.4
Pin
1
Short Description of the Pin Functions
Function
A parallel RC-circuit between this pin and ground determines the ringing
suppression time and the standby-frequency.
2
3
A capacitor between this pin and ground and a resistor between this pin and
the positive terminal of the primary elcap quantifies the max. possible output
power of the SMPS.
This is the input of the error amplifier and the zero crossing input. The output
of a voltage divider between the control winding and ground is connected to
this input. If the pulses at pin 3 exceed a 5 V threshold, the control voltage at
pin 4 is lowered.
4
5
This is the pin for the control voltage. A capacitor has to be connected
between this pin and ground. The value of this capacitor determines the
duration of the softstart and the speed of the control.
If an opto coupler for the control is used, it’s output has to be connected
between this pin and ground. The voltage divider at pin 3 has then to be
changed, so that the pulses at pin 3 are below 5 V.
6
7
Fault comparator 2: If a voltage > 1.2 V is applied to this pin, the SMPS stops.
If fixed frequency mode is wanted, a parallel RC circuit has to be connected
between this pin and ground. The RC-value determines the frequency. If
synchronized mode is wanted, sync pulses have to be fed into this pin.
8
9
Not connected (TDA 16846). / This is the power measurement output of the
Temporary High Power Circuit. A capacitor and a RC-circuit has to be
connected between this pin and ground (TDA 16847).
Output for reference voltage (5 V). With a resistor between this pin and ground
the fault comparator 2 (pin 6) is enabled.
10
11
Fault comparator 1: If a voltage > 1 V is applied to this pin, the SMPS stops.
This is the input of the primary voltage check. The voltage at the anode of the
primary elcap has to be fed to this pin via a voltage divider. If the voltage of
this pin falls below 1 V, the SMPS is switched off. A second function of this pin
is the primary voltage dependent fold back point correction (only active in free
running mode).
12
13
Common ground.
Output signal. This pin has to be connected across a serial resistor with the
gate of the power transistor.
14
Connection for supply voltage and startup capacitor. After startup the supply
voltage is produced by the control winding of the transformer and rectified by
an external diode.
Data Sheet
5
2000-01-14
TDA 16846
TDA 16847
1.5
Block Diagrams
PVC
11
D4
R4
Fold Back Point Correction
7
SYN
R6 x 1/3
Primary
KSY
Voltage
Check
-
+
-
R7
PVA
-
+
+
R6
5 V
D5
30 k
Ω
1 V
R8
R3
1.5 V
75 k
Ω
15 kΩ
-
Control Voltage
Off Time
Comparator
3.5 V
VCC
G1
+
Limit
1
2 V
5 V
+
-
9
8
6
ED2
1
REF
N.C.
FC2
OTC
RZI
CS1
RSTC/RSTF
G4
+
-
1
Error
Amplifier
3.5 V
R2
Error-
Flipflop
D2
FC2
1.2 V
+
-
3
S
Q
R
D3
Buffer for
Control Voltage
4
5
SRC
OCI
+
+
-
On Time
Flipflop
R1
20 k
Output
Driver
&
On Time
Comparator
G3
&
Ω
S
Q
R
13
-
+
OUT
G2
5 V
2
PCS
I1
ED1
Zero Crossing
Signal
1.5 V
D1
< 25 mV
Startup
Diode
Supply
Voltage
Comparator
FC1
-
+
Overvoltage
Comparator
1 V
14
12
VCC
+
-
+
-
16 V
15/8 V
GND
10
FC1
AEB02648
1) The input with the lower voltage becomes operative
Figure 2
TDA 16846
Data Sheet
6
2000-01-14
TDA 16846
TDA 16847
PVC
11
D4
R4
Fold Back Point Correction
7
SYN
R6 x 1/3
Primary
KSY
Voltage
Check
-
+
-
R7
PVA
-
+
+
R6
5 V
D5
30 k
Ω
1 V
R8
R3
1.5 V
75 k
Ω
15 kΩ
-
Control Voltage
VCC
Off Time
Comparator
3.5 V
G1
+
Limit
9
8
1
S2
2 V
5 V
REF
+
-
ED2
1
OTC
RZI
PMO
CS1
RSTC/RSTF
G4
6
+
-
FC2
1
Error
Amplifier
3.5 V
R2
D2
Error-
Flipflop
FC2
1.2 V
+
3
-
S
Q
R
D3
Buffer for
Control Voltage1)
4
5
SRC
OCI
+
+
-
On Time
Flipflop
R1
20 k
Output
Driver
&
On Time
Comparator
G3
&
Ω
S
Q
R
13
-
+
OUT
G2
5 V
2
PCS
I1
S1
Discharge Time
Flipflop
ED1
Zero
Crossing
Signal
1.5 V
S
Q
R
D1
< 25 mV
Startup
Diode
FC1
-
+
Overvoltage
Comparator
Supply Voltage
Comparator
1 V
14
12
VCC
+
-
+
-
16 V
15/8 V
GND
10
FC1
AEB02737
1) The input with the lower voltage becomes operative
Figure 3
TDA 16847
Data Sheet
7
2000-01-14
TDA 16846
TDA 16847
2
Functional Description
Start Up Behaviour (Pin 14)
When power is applied to the chip and the voltage V14 at Pin 14 (VCC) is less than the
upper threshold (VON) of the Supply Voltage Comparator (SVC), input current I14 will be
less than 100 µA. The chip is not active and driver output (Pin 13) and control output
(Pin 4) will be actively held low. When V14 exceeds the upper SVC threshold (VON) the
chip starts working and I14 increases. When V14 falls below the lower SVC threshold
(VOFF) the chip starts again at his initial condition. Figure 4 shows the start-up circuit and
Figure 5 shows the voltage V14 during start up. Charging of C14 is done by resistor R2 of
the “Primary Current Simulation” (see later) and the internal diode D1, so no additional
start up resistor is needed. The capacitor C14 delivers the supply current until the
auxiliary winding of the transformer supplies the chip with current through the external
diode D14.
D14
VCC
C14
14
SVC
TR
D1
C2
PCS
2
TDA 16846
R2
VOut
Cp
AES02649
Figure 4
Startup Circuit
Data Sheet
8
2000-01-14
TDA 16846
TDA 16847
V
max
V14
VOn
VOff
Startup
Operation
t
AED02650
Figure 5
Startup Voltage Diagram
Primary Current Simulation PCS (Pin 2) / Current Limiting
A voltage proportional to the current of the power transistor is generated at Pin 2 by the
RC-combination R2, C2 (Figure 4). The voltage at Pin 2 is forced to 1.5 V when the
power transistor is switched off and during its switch on time C2 is charged by R2 from
the rectified mains. The relation of V2 and the current in the power transistor (Iprimary) is
:
L
primary × Iprimary
V2 = 1,5 V+ -------------------------------
R2 × C2
L
primary: Primary inductance of the transformer
The voltage V2 is applied to one input of the On Time Comparator ONTC (see Figure 2).
The other input is the control voltage. If V2 exceeds the control voltage, the driver
switches off (current limiting). The maximum value of the control voltage is the internal
reference voltage 5 V, so the maximum current in the power transistor (IMprimary) is
:
3,5 V × R2 × C2
IMprimary = --------------------------------------
Lprimary
The control voltage can be reduced by either the Error Amplifier EA (current mode
regulation), or by an opto coupler at Pin 5 (regulation with opto coupler isolation) or by
the voltage V11 at Pin 11 (Fold Back Point Correction).
Data Sheet
9
2000-01-14
TDA 16846
TDA 16847
Fold Back Point Correction PVC (Pin 11)
V11 is deviated by a voltage divider from the rectified mains and reduces the limit of the
possible current maximum in the power transistor if the mains voltage increases. I.e. this
limit is independent of the mains (only active in free running mode). The maximum
current (IMprimary) depending on the voltage V11 at Pin 11 is
:
(4 V – V11 ⁄ 3) × R2 × C2
IMprimary = ------------------------------------------------------------
Lprimary
Off-Time Circuit OTC (Pin 1)
Figure 6 shows the Off-Time Circuit which determines the load dependent frequency
course. When the driver switches off (Figure 7) the capacitor C1 is charged by current I1
(approx. 1 mA) until the capacitor’s voltage reaches 3.5 V. The charge time TC1 is
:
C1 × 1,5 V
-------------------------
TC1 ≈
1mA
For proper operation of the special internal anti jitter circuit, TC1 should have the same
value as the resonance time “TR” of the power circuit (Figure 7). After charging C1 up to
3.5 V the current source is disconnected and C1 is discharged by resistor R1. The voltage
V1 at Pin 1 is applied to the Off-Time Comparator (OFTC). The other input of OFTC is
the control voltage. The value of the control voltage at the input of OFTC is limited to a
minimum of 2 V (for stable frequency at very light load). The On-Time Flip Flop (ONTF)
is set, if the output of OFTC is high 1) and the voltage V3 at Pin 3 falls below 25 mV (zero
crossing signal is high). This ensures switching on of the power transistor at minimum
voltage. If no zero crossing signal is coming into pin 3, the power transistor is switched
on after an additional delay until V1 falls below 1.5 V (see Figure 6, OFTCD). As long as
V1 is higher than the limited control voltage, ONTF is disabled to suppress wrong zero
crossings of V3, due to parasitic oscillations from the transformer after switch-off. The
discharge time of C1 is a function of the control voltage.
1)
i.e. V1 is less than the limited control voltage.
.
Control Voltage Output Power Off-time TD1
1.5 - 2 V
2 - 3.5 V
3.5 - 5 V
Low
Constant (TD1MAX.), const. frequency stand by
Decreasing
Medium
High
Free running, switch-on at first minimum
If the control voltage is below 2 V (at low output power) the “off-time” is maximum and
constant
TD1max ≈ 0,47 × R1 × C1
Data Sheet
10
2000-01-14
TDA 16846
TDA 16847
External
Internal
From SYNC
1.5 V
From Error FF
OFTCD
Control Voltage
+
-
Limit
2 V
OFTC
1
+
OTC
1
Output
Driver
-
ONTF
&
1
S
R
ED3
ED2
&
R1
C1
Q
I1
2 V
From ONTC
From UVLO
RSTC
RSTC
S
Q
+
-
R
Ringing Suppression Time
Zero Crossing Signal
ED1
3.5 V
RZI
3
AES02651
Figure 6
Off-Time-Circuit
Data Sheet
11
2000-01-14
TDA 16846
TDA 16847
tR
Power
Trans.
VDrain
tC1
tD1max
3.5 V
2 V
V5
V1
0 V
V13
V3
t
AED02652
Figure 7
Pulse Diagram of Off-Time-Circuit
Figure 8 shows the converters switching frequency as a function of the output power.
f
Conventional
Free Running
TDA 16846
e.g. 20 kHz
POUT
AED02653
Figure 8
Load Dependant Frequency Course
Data Sheet
12
2000-01-14
TDA 16846
TDA 16847
Error Amplifier EA / Soft-Start (Pin 3, Pin 4)
Figure 9 shows the simplified Error Amplifier circuit. The positive input of the Error
Amplifier (EA) is the reference voltage 5 V. The negative input is the pulsed output
voltage from the auxiliary winding, divided by R31 and R32. The capacitor C3 is
dimensioned only for delaying zero crossings and smoothing the first spike after switch-
off. Smoothing of the regulation voltage is done with the soft start capacitor C4 at Pin 4.
During start up C4 is charged with a current of approx. 2 µA (Soft Start). Figure 10 shows
the voltage diagrams of the Error Amplifier circuit.
External
Internal
Error
Amplifier
TR
C3
R31
5 V
+
-
Down
RZI
3
4
R32
C4
VReg
SRC
AES02654
Figure 9
Error Amplifier
VRef
V3
Down
V4
t
AED02655
Figure 10
Regulation Pulse Diagram
Data Sheet
13
2000-01-14
TDA 16846
TDA 16847
Fixed Frequency and Synchronization Circuit SYN (Pin 7)
Figure 11 shows the Fixed Frequency and Synchronization Circuit. The circuit is
disabled when Pin 7 is not connected. With R7 and C7 at Pin 7 the circuit is working. C7
is charged fast by approx. 1 mA and discharged slowly by R7 (Figure 11). The power
transistor is switched on at beginning of the charge phase. The switching frequency is
(charge time ignored)
:
1,18
f ≈ --------------
R7 × C7
When the oscillator circuit is working the Fold Back Point Correction is disabled (not
necessary in fixed frequency mode). “Switch on” is only possible when a “zero crossing”
has occurred at Pin 3, otherwise “switch-on” will be delayed (Figure 12).
External
Internal
OP1
SYN
7
-
+
OP1OUT
R7
C7
30
k
Ω
15 k
Ω
Logic
LO
5 V
75 k
Ω
OUT 13
RZI
3
Zero Crossing Signal
AES02656
Figure 11
Synchronization and Fixed Frequency Circuit
Data Sheet
14
2000-01-14
TDA 16846
TDA 16847
V
VTrans
3.6 V
V7
1.5 V
0.7 V
RZI(3)
t
AED02657
Figure 12
Pulse Diagram for Fixed Frequency Circuit
Synchronization mode is also possible. The synchronization frequency must be higher
than the oscillator frequency.
External
Internal
9
7
470
Ω
5 V
SYN
R7
39 k
C7
1 nF
Ω
SFH 6136
AES02658
Figure 13
Ext. Synchronization Circuit
Data Sheet
15
2000-01-14
TDA 16846
TDA 16847
3
Protection Functions
The chip has several protection functions:
Current Limiting
See “Primary Current Simulation PCS (Pin 2) / Current Limiting” and “Fold Back Point
Correction PVC (Pin 11)”.
Over- and Undervoltage Lockout OV/SVC (Pin 14)
When V14 at Pin 14 exceeds 16 V, e. g. due to a fault in the regulation circuit, the Error
Flip Flop ERR is set and the output driver is shut-down. When V14 goes below the lower
SVC threshold, ERR is reset and the driver output (Pin 13) and the soft-start (Pin 4) are
shut down and actively held low.
Primary Voltage Check PVC (Pin 11)
When the voltage V11 at Pin 11 goes below 1 V the Error Flip Flop (ERR) is set. E.g. a
voltage divider from the rectified mains at Pin 11 prevents from high input currents at too
low input voltage.
Free Usable Fault Comparator FC1 (Pin 10)
When the voltage at Pin 10 exceeds 1 V, the Error Flip Flop (ERR) is set. This can be
used e. g. for mains overvoltage shutdown.
Free Usable Fault Comparator FC2 (Pin 6)
When the voltage at Pin 6 exceeds 1.2 V, the Error Flip Flop (ERR) is set. A resistor
between Pin 9 (REF) and ground is necessary to enable this fault comparator.
Voltage dependent Ringing Suppression Time
During start-up and short-circuit operation, the output voltage of the converter is low and
parasitic zero crossings are applied for a longer time at Pin 3. Therefore the Ringing
Suppression Time TC1 (see “Off-Time Circuit OTC (Pin 1)”) is made longer with
factor 2.5 at low output voltage. To ensure start-up of the circuit, the value of resistor R1
(Pin 1, Figure 6) must be higher than 20 kΩ.
Data Sheet
16
2000-01-14
TDA 16846
TDA 16847
4
Temporary High Power Circuit FC2, PMO, REF
(Pin 6, 8, 9, TDA 16847)
Figure 14 shows the Temporary High Power Circuit:
Internal
External
VCC
9
8
REF
CS2
R9
51 k
Ω
I8
R8
PMO
Discharge Time
to Error Flipflop
C8
C6
S2
6
FC2
1
+
-
R6
10 M
FC2
Ω
1.2 V
AEB02739
Figure 14
The Temporary High Power Circuit (THPC) consists of two parts:
First a power measurement circuit is implemented: The capacitor C8 at Pin 8 is charged
with a constant current I8 during the discharge time of the flyback transformer and
connected to ground the other time. So the average of the sawtooth voltage V8 at Pin 8
is proportional to the converters output power (at constant output voltages). The charge
current I8 for C8 is dimensioned by the resistor R9 at Pin 9:
I8 = 5 V/R9
Data Sheet
17
2000-01-14
TDA 16846
TDA 16847
Second a High Power Shutdown Comparator (FC2) is implemented: When the voltage
V6 at Pin 6 exceeds 1.2 V the Error Flip Flop (ERR) is set. The output voltage of the
power measurement circuit (Pin 8) is smoothed by R8/C6 and applied to the “high power
shutdown” input at Pin 6. The relation between this voltage V6 and the output power of
the converter P is approximately:
V6 ≈ (P × LSecondary × 5 V)/(VOUT2 × C8 × R9)
L
Secondary: The transformers secondary inductance
OUT: The converters output voltage
V
So the time constant of R9/C8 for a certain high power shutdown level PSD is:
2
R9 × C8 ≈ (PSD × LSecondary × 4.2)/VOUT
The converters high power shutdown level can be dimensioned lower (by R9, C8) than
the current limit level (see “current limiting”). So because of the delay R8/C6, the
converter can deliver maximum output power (current limit level) for a certain time (e. g.
for power pulses like motor start current) and a power below the high power shutdown
level for unlimited time. This has the advantage that the thermal dimensioning of the
power devices is only needed for the lower power level. Once the voltage V6 exceeds
1.2 V there are no more charge or discharge actions at Pin 8. The voltage V6 remains
high due to the bias current out of HPC and the converter remains switched-off. Reset
can be done by either plug-off the supply from the mains or with a high value resistor R6
(Figure 14). R6 causes a reset every view seconds. When Pin 9 is not connected or gets
too less current the temporary high power circuit is disabled.
Data Sheet
18
2000-01-14
TDA 16846
TDA 16847
5
Electrical Characteristics
5.1
Absolute Maximum Ratings
All voltages listed are referenced to ground (0 V, VSS) except where noted.
Parameter
Symbol Limit Values Unit Remarks
min.
– 0.3
– 0.3
– 0.3
max.
17
6
Supply Voltage at Pin 14
VCC
V
V
V
V
–
–
–
Voltage at Pin 1, 4, 5, 6, 7, 9, 10 –
Voltage at Pin 2, 8, 11
–
17
6
Voltage at Pin 3
Current into Pin 3
RZI
– 10
– 1
mA V3 < – 0.3 V
Current into Pin 9
Current into Pin 13
REF
OUT
–
mA –
100
mA V13 > VCC
mA V13 < 0 V
– 100
–
ESD Protection
–
2
kV MIL STD 883C
method 3015.6,
100 pF, 1500 Ω
Storage Temperature
Tstg
– 65
– 25
–
125
125
110
°C
°C
–
–
Operating Junction Temperature TJ
Thermal Resistance
Junction-Ambient
RthJA
K/W P-DIP-14-3
Soldering Temperature
Soldering Time
–
–
–
–
260
10
°C
–
–
s
Note: Stresses above those listed here may cause permanent damage to the device.
Exposure to absolute maximum rating conditions for extended periods may affect
device reliability.
Data Sheet
19
2000-01-14
TDA 16846
TDA 16847
5.2
Characteristics
Unless otherwise stated, – 25 °C < Tj < 125 °C, VCC = 12 V
Parameter
Symbol
Limit Values
Unit Test Condition
min. typ. max.
Start-Up Circuit
Supply current, OFF
Supply current, ON
Turn-ON threshold
Turn-OFF threshold
I14
I14
–
–
40
5
100 µA 0 < VCC < V14
ON
8
mA Output low
V14
14.5 15
7.5
15.5 V
8.5
–
–
ON
V14
8
V
OFF
Primary Current Simulation PCS (Pin 2) / Current Limiting
Basic value
Peak value
On-time
V2
V2
–
1.45 1.5
1.55 V
5.15 V
I2 = 100 µA
V11 = 1.2 V
4.85
9.0
5
10.5 11.5 µs
V11 = 1.2 V,
C2 = 220 pF,
I2 = 75 µA
Bias current Pin 2
–
– 1.0 – 0.3 –
µA
–
Fold Back Point Correction PVC (Pin 11)
Peak value
On-time
V2
3.8
6.2
4.1
7.5
4.3
8.5
V
V11 = 4.5 V
–
µs
V11 = 4.5 V,
C2 = 220 pF,
I2 = 75 µA
Bias current Pin 11
–
– 1.0 – 0.3 –
µA
–
Off-Time Circuit OTC (Pin 1)
Charge current
Charge current
Peak value
I1
0.9
1.1
1.4
mA V3 > 3 V
I1
0.35 0.5
3.38 3.5
0.65 mA V3 < 2 V
V1
V1
3.62 V
2.08 V
–
–
Basic value
1.92
2
Data Sheet
20
2000-01-14
TDA 16846
TDA 16847
5.2
Characteristics (cont’d)
Unless otherwise stated, – 25 °C < Tj < 125 °C, VCC = 12 V
Parameter
Symbol
Limit Values
Unit Test Condition
min. typ. max.
T12 Charge time
TC1
0.85 1.0
1.3
3.0
80
µs
µs
V3 > 3 V,
C1 = 680 pF,
R1 = 100 kΩ
T13 Charge time
TC1
1.9
2.4
72
V3 < 2 V,
C1 = 680 pF,
R1 = 100 kΩ
Off-time
TD1MAX. 65
µs
C1 = 680 pF,
R1 = 100 kΩ
Bias current Pin 1
–
–
– 1.1 – 0.4 –
µA
–
Zero crossing threshold
(Pin 3)
15
25
35
mV –
Delay to switch-on
Bias current Pin 3
–
–
280
– 2
350
480 ns
–
– 1.2 –
µA V3 < 25 mV
Error Amplifier EA (Pin 3, Pin 4)
Input threshold (Pin 3)
Bias current Pin 3
VEATH
4.85
–
5
5.15 V
–
–
–
– 0.9 –
µA V3 > 3 V
Soft-start charge current
(Pin 4)
– 2.5 – 1.8 – 1.2 µA
–
Opto Coupler Input (Pin 5)
Input voltage range
V5
R1
0.3
15
–
6
V
–
–
Pull high resistor to VREF
20
25
kΩ
Data Sheet
21
2000-01-14
TDA 16846
TDA 16847
5.2
Characteristics (cont’d)
Unless otherwise stated, – 25 °C < Tj < 125 °C, VCC = 12 V
Parameter
Symbol
Limit Values
Unit Test Condition
min. typ. max.
Fixed Frequency and Synchronization Circuit SYN (Pin 7)
Frequency
–
78
88
98
kHz C7 = 470 pF,
R7 = 20 kΩ
Charge current
Upper threshold
Lower threshold
Charge time
I7
1.0
3.5
1.3
3.6
1.6
3.7
mA –
V7
V7
–
V
–
–
–
–
–
1.43 1.5
0.4 0.55 0.75 µs
– 2.4 – 1.8 – 1.1 µA
1.57 V
Bias current Pin 7
Input voltage range
–
V7
0.3
–
6
V
V
Undervoltage Lockout SVC (Pin 14)
Threshold
V14
7.5
8
8.5
–
OFF
Overvoltage Lockout OV (Pin 14)
Threshold
V14 OV
15.7 16.5 17
V
V
–
–
Delta-OV-V14 ON
–
0.5
–
1
5
–
Primary Voltage Check PVC (Pin 11)
Threshold
V11
0.95
1.06 V
–
Reference Voltage (Pin 9)
Voltage at Pin 9
V9
I9
4.8
5.15 V
I9 = 100 µA
Current into Pin 9
– 200 –
0
µA VEATH(Pin 3)
–
V9 < 50 mV
Data Sheet
22
2000-01-14
TDA 16846
TDA 16847
5.2
Characteristics (cont’d)
Unless otherwise stated, – 25 °C < Tj < 125 °C, VCC = 12 V
Parameter
Symbol
Limit Values
Unit Test Condition
min. typ. max.
Fault Comparator FC2 (Pin 6)
HPC Threshold
V6
1.12 1.2
1.28 V
–
–
Bias Current Pin 6
–
– 1.0 – 0.3 0.1
µA
Fault Comparator FC1 (Pin 10)
Threshold
V10
0.95
1
1.06 V
1.2 µA
–
–
Bias current Pin 10
–
0.48 0.9
Power Measurement Output PMO (Pin 8, only TDA 16847)
Charge current Pin 8
I8
– 110 – 100 – 90 µA I9 = – 100 µA
Output Driver OD (Pin 13)
Output voltage low state
Output voltage high state
V13
V13
V13
1.1
9.2
0.8
1.8
10
2.4
11
V
V
V
I13 = 100 mA
low
I13 = – 100 mA
high
aclow
Output voltage during low
supply voltage
1.8
2.5
I13 = – 10 mA,
V14 increasing:
0 < V14 < V14
ON
V14 decreasing:
0 < V14 < V14
OFF
Rise time
Fall time
–
–
70
30
110
50
180 ns
80 ns
C13 = 10 nF,
V13 = 2 … 8 V
C13 = 10 nF,
V13 = 2 … 8 V
Note: The listed characteristics are ensured over the operating range of the integrated
circuit. Typical characteristics specify mean values expected over the production
spread. If not otherwise specified, typical characteristics apply at TA = 25 °C and
the given supply voltage.
Data Sheet
23
2000-01-14
TDA 16846
TDA 16847
4
3
1
2
R62
820
R61
Ω
C61
10 nF
R63
C62
1 nF
1 k
Ω
IC 02
SFH 617 A-2
100 k
Ω
C26
22 µF
D26
1N4148
R60
C25
C28
2.2 k
P60
Ω
R65
100 k
14
4
5
3
Ω
500
Ω
R38
10 nF
4.7 nF
R24
D41
MUR4100
TR1
(AL = 190 nH)
9.1 k
Ω
11
R29
9.1 k
V1
100 V
18 k
Ω
Ω
IC1
TDA 16846
C24
C22
150 pF
C41
220 µF
7 Turns
52 Turns
P
21k0Ω
1 nF
R23
6, 10, 12
1
D42
MUR120
3.9 MΩ
V2
16 V
C30
1.5 nF
R22
R30
56 kΩ
C42
470
9 Turns
1 MΩ
µF
C22
N.C.
2
8
9
13
7
560 pF
C9
220 pF
D9
MUR4100
D43
MUR120
T1
V3
R35
8.5 V
SPP (0.6
N6055
Ω )
C
10 nF
C43
8
15
Ω
54 Turns
5 Turns
470 µF
D8
STTA506D
L8
2 mH
D1-D4
4 x BYW 76
R5
5.1 k
C5
C7
150
Ω
µF/450 V
1 nF
RFI Filter
180-270 V
C10
1 nF
R10
4.7 MΩ
F1
3.15 A
AES02659
Figure 15
Circuit Diagram for Application with PFC
Data Sheet
24
2000-01-14
TDA 16846
TDA 16847
D26
1N4148
C26
22
µF
C25
14
4
5
3
R38
10 nF
R24
D41
MUR4100
TR1
(AL = 190 nH)
9.1 k
Ω
11
R29
9.1 k
V1
100 V
18 k
Ω
Ω
IC1
TDA 16846
C24
C22
150 pF
C41
7 Turns
52 Turns
220 µF
P
21k0Ω
1 nF
R23
6, 10, 12
1
D42
MUR120
3.9 MΩ
V2
16 V
C30
1.5 nF
R22
R30
56 kΩ
C42
470
9 Turns
1 MΩ
µF
C22
N.C.
2
8
9
13
7
680 pF
C9
220 pF
D43
MUR120
T1
V3
R35
8.5 V
SPP (1.4
N6055
Ω )
C43
470
15
Ω
77 Turns
5 Turns
D10
BA1 59
µF
D11
D1-D4
4 x 1N4007
C7
150
µF/385 V
RFI Filter
180-270 V
C10
1 nF
R10
4.7 MΩ
F1
3.15 A
AES02660
Figure 16
Circuit Diagram for Standard Application
Data Sheet
25
2000-01-14
TDA 16846
TDA 16847
1N4148
D26
C26
22
µF
C25
14
4
5
3
R38
10 nF
R24
D41
MUR4100
TR1
(AL = 190 nH)
9.1 k
Ω
11
R29
9.1 k
V1
100 V
18 k
Ω
Ω
C24
C22
150 pF
C41
7 Turns
52 Turns
220 µF
IC1
TDA 16847
P
21k0Ω
1 nF
R23
10, 12
1
D42
MUR120
3.9 MΩ
V2
C30
1.5 nF
16 V
R30
56 k
R22
C42
470
Ω
9 Turns
1 MΩ
7
9
µF
C22
R32
2
8
6
13
680 pF
51 k Ω
C9
220 pF
D43
MUR120
T1
V3
R33
R35
8.5 V
SPP (1.4
N6055
Ω )
C43
470
1 M
Ω
15 Ω
C31
77 Turns
5 Turns
D10
BA 159
µF
C32
4.7 µF
100 pF
D11
D1-D4
4 x 1N4007
C7
150
µF/385 V
RFI Filter
180-270 V
C10
1 nF
R10
4.7 MΩ
F1
3.15 A
AES02738
Figure 17
Circuit Diagram for Application with Temporary High Power Circuit
Data Sheet
26
2000-01-14
TDA 16846
TDA 16847
Package Outlines
P-DIP-14-3
(Plastic Dual In-line Package)
Sorts of Packing
Package outlines for tubes, trays etc. are contained in our
Data Book "Package Information".
Dimensions in mm
2000-01-14
Data Sheet
27
TDA 16846
TDA 16847
P-DSO-14-3
(Plastic Dual In-line Package)
Sorts of Packing
Package outlines for tubes, trays etc. are contained in our
Data Book "Package Information".
Dimensions in mm
2000-01-14
Data Sheet
28
厂商 型号 描述 页数 下载

CK-COMPONENTS

 		TDA 超微型表面贴装半间距DIP开关[ Ultra-miniature Surface Mount Half-pitch DIP Switches ] 2 页

NXP

 		TDA 8920 - 12号的铝制车身绘（ RAL 7032 ） 36 页

NXP

 		TDA 8922 - 12号的铝制车身绘（ RAL 7032 ） 36 页

ADAM-TECH

 		TDA-06 屏障端子排[ BARRIER TERMINAL STRIPS ] 1 页

STMICROELECTRONICS

 		TDA-2009A 10 10W立体声放大器[ 10 10W STEREO AMPLIFIER ] 12 页

STMICROELECTRONICS

 		TDA-7296 70V - 60W DMOS音频放大器，具有静音/ ST- BY[ 70V - 60W DMOS AUDIO AMPLIFIER WITH MUTE/ST-BY ] 15 页

ETC

 		TDA0077001 [ OSC MEMS 100MHZ 1.8V SMD ] 1 页

STMICROELECTRONICS

 		TDA0161 接近探测器[ PROXIMITY DETECTORS ] 6 页

STMICROELECTRONICS

 		TDA0161CM [ SPECIALTY ANALOG CIRCUIT, MBCY8 ] 4 页

STMICROELECTRONICS

 		TDA0161DP 接近探测器[ PROXIMITY DETECTORS ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.240409s
