2SK3892

型号:

2SK3892

描述:

硅N沟道功率MOSFET[ Silicon N-channel power MOSFET ]

品牌:

PANASONIC[ PANASONIC ]

页数:

4 页

PDF大小:

277 K

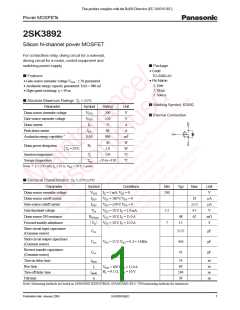

This product complies with the RoHS Directive (EU 2002/95/EC).
Power MOSFETs
2SK3892
Silicon N-channel power MOSFET
For contactless relay, diving circuit for a solenoid,
driving circuit for a motor, control equipment and
switching power supply
Package
Code
Features
TO-220D-A1
Pin Name
1: Gate
Gate-source surrender voltage VGSS : ± 30 guaranteed
Avalanche energy capacity guaranteed: EAS > 986 mJ
High-speed switching: tf = 39 ns
2: rain
ce
Absolute Maximum Ratings TC = 25°C
Marking Symbol: K3892
Parameter
Drain-source surrender voltage
Gate-source surrender voltage
Drain current
Symbol
VDSS
VGSS
ID
Rating
Unit
V
2
Internal Connection
V
D
22
A
Peak drain current
IDP
88
A
G
Avalanche energy capability *
EAS
986
mJ
W
W
°C
°C
40
S
Drain power dissipaion
PD
T = 25°C
a
2.0
Junction temperature
Storage mperaure
150
T
stg
5 to +150
Note) : L = 2.7 mH22 A, VDD = 50 V, 1 pulse
*
Elecrical Chaistics TC = 25°C±3°C
Drain-source surrend
Drain-source cutoff curret
Gate-source cutoff current
Gate threshold voltage
Symbol
Conditions
Min
Typ
Max
Unit
V
VDSS
IDSS
IGSS
Vth
ID = 1 mA, VG= 0
200
VDS = 160 V, VGS = 0
VGS = ±30 V, VDS = 0
VDS = 10 V, ID = 1.0 mA
10
±1.0
4.5
62
mA
mA
V
2.5
7
Drain-source ON resistance
Forward transfer admittance
RDS(on) VGS = 10 V, ID = 11.0A
48
15
mW
S
VDS = 10 V, ID = 11.0A
Yfs
Short-circuit input capacitance
(Common source)
Ciss
3177
456
41
pF
pF
pF
Short-circuit output capacitance
(Common source)
Coss
Crss
VDS = 25 V, VGS = 0, f = 1 MHz
Reverse transfer capacitance
(Common source)
Turn-on delay time
Rise time
td(on)
tr
td(off)
tf
54
60
ns
ns
ns
ns
VDD = 100 V, ID = 11.0A
RL = 9.1 W, VGS = 10 V
Turn-off delay time
Fall time
194
39
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: January 2009
SJG00043BED
1
This product complies with the RoHS Directive (EU 2002/95/EC).
2SK3892
Electrical Characteristics (continued) TC = 25°C±3°C
Parameter
Diode forward voltage
Symbol
VDSF
trr
Conditions
IDR = 22A, VGS = 0
Min
Typ
Max
Unit
V
-1.5
Reverse recovery time
Reverse recovery charge
Gate charge load
127
756
50
ns
L = 230 mH, VDD = 100 V
IDR = 11.0A, di / dt = 100A/ms
Qrr
nC
Qg
nC
Gate-source charge
Qgs
VDD = 100 V, ID = 11.0A, VGS = 10 V
12
nC
Gate-drain charge
Qgd
18
nC
Thermal resistance (ch-c)
Thermal resistance (ch-a)
Rth(ch-c)
Rth(ch-a)
3.13
62.5
°C/W
°C/W
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measurinmethods for transistors.
2
SJG00043BED
This product complies with the RoHS Directive (EU 2002/95/EC).
2SK3892
TO-220D-A1
Unit: mm
4.6 ±0.2
2.9 ±0.2
9.9 ±0.3
3.2 ±0.1
.4 ±0.
1.6 ±0
2.6 ±0.1
0.8 ±0.1
0.40 ±0.05
2.54 ±0.3
5.08 ±0.5
1
2
3
SJG00043BED
3
Request for your special attention and precautions in using the technical information and
semiconductors described in this book
(1) If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and
regulations of the exporting country, especially, those with regard to security export control, must be observed.
(2) The technical information described in this book is intended only to show the main characteristics and application circuit examples
of the products. No license is granted in and to any intellectual property right or other right owned by Panasonic Corporation or any
other company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any
other company which may arise as a result of the use of technical information described in this book.
(3) The products described in this book are intended to be used for standard applications or general electronic equipment (such as office
equipment, communications equipment, measuring instruments and household appliances).
Consult our sales staff in advance for information on the following applications:
Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support
systems and safety devices) in which exceptional quality and reliability requied, or if the failure or malfunction of the prod-
ucts may directly jeopardize life or harm the human body.
Any applications other than the standard applications intended.
(4) The products and product specifications described in this book are subjet to change wit notice for modification and/or im-
provement. At the final stage of your design, purchasingr use of the roducts, therfor the most up-to-date Product
Standards in advance to make sure that the latest specifictions stisfy your requirements.
(5) When designing your equipment, comply with he ange f absolute maximing nd the guaranteed operating conditions
(operating power supply voltage and operating nvirent etc.). Especiall, plee be ceful not to exceed the range of absolute
maximum rating on the transient state, such as powpower-off and modeswitching. Otherwise, we will not be liable for any
defect which may arise later in your equpmen
Even when the products are used withthe guaanteed values, kinto he cosideration of incidence of break down and failure
mode, possible to occur to semiconductor products. Measures on the sytems such as redundant design, arresting the spread of fire
or preventing glitch are recommin ordto prevent physicinjury, fre, social damaes, for example, by using the products.
(6) Comply with the instructios for se in rder to prevent breakdwn and characteristics change due to external factors (ESD, EOS,
thermal stress and mechanicastress) at the time of andlig, mounting or at customer's process. When using products for which
damp-proof packinis reqired, stisfy the condtions, sch as shelf life and the elapsed time since first opening the packages.
(7) This book may e not eprinted or reprodhethr wholly or partially, without the prior written permission of our company.
2008080
