NX2301P

型号:

NX2301P

描述:

20 V ,2 A P沟道沟槽MOSFET沟道MOSFET技术继电器驱动器[ 20 V, 2 A P-channel Trench MOSFET Trench MOSFET technology Relay driver ]

品牌:

TYSEMI[ TY Semiconductor Co., Ltd ]

页数:

3 页

PDF大小:

228 K

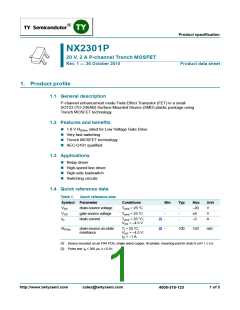

Product specification
NX2301P
20 V, 2 A P-channel Trench MOSFET
Rev. 1 — 26 October 2010
Product data sheet
1. Product profile
1.1 General description
P-channel enhancement mode Field-Effect Transistor (FET) in a small
SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using
Trench MOSFET technology.
1.2 Features and benefits
„ 1.8 V RDSon rated for Low Voltage Gate Drive
„ Very fast switching
„ Trench MOSFET technology
„ AEC-Q101 qualified
1.3 Applications
„ Relay driver
„ High-speed line driver
„ High-side loadswitch
„ Switching circuits
1.4 Quick reference data
Table 1.
Quick reference data
Symbol Parameter
Conditions
Tamb = 25 °C
Tamb = 25 °C
Min
Typ
Max
20
±8
Unit
V
VDS
VGS
ID
drain-source voltage
-
-
-
-
-
-
gate-source voltage
drain current
V
[1]
[2]
Tamb = 25 °C;
VGS = 4.5 V
2
A
RDSon
drain-source on-state
resistance
Tj = 25 °C;
VGS = 4.5 V;
ID = 1 A
-
100
120
mΩ
[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm2, t 5 s.
[2] Pulse test: tp 300 μs; δ ≤ 0.01.
http://www.twtysemi.com
sales@twtysemi.com
1 of 3
4008-318-123
Product specification
NX2301P
20 V, 2 A P-channel Trench MOSFET
2. Pinning information
Table 2.
Pinning
Pin
1
Symbol
Description
gate
Simplified outline
Graphic symbol
G
S
D
D
3
2
source
drain
3
G
1
2
S
017aaa094
3. Ordering information
Table 3.
Ordering information
Type number Package
Name
Description
Version
NX2301P
TO-236AB plastic surface-mounted package; 3 leads
SOT23
4. Marking
Table 4.
Marking codes
Type number
Marking code[1]
NX2301P
MG*
[1] * = placeholder for manufacturing site code
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter
Conditions
Tamb = 25 °C
Tamb = 25 °C
VGS = 4.5 V
Tamb = 25 °C
Tamb = 100 °C
Min
Max
20
±8
Unit
V
VDS
VGS
ID
drain-source voltage
-
-
gate-source voltage
drain current
V
[1]
-
-
-
2
A
A
A
1.2
6
IDM
peak drain current
Tamb = 25 °C;
single pulse; tp 10 μs
http://www.twtysemi.com
sales@twtysemi.com
2 of 3
4008-318-123
Product specification
NX2301P
20 V, 2 A P-channel Trench MOSFET
Table 5.
Limiting values …continued
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter
Conditions
Min
Max
400
710
2.8
Unit
mW
mW
W
[2]
[1]
Ptot
total power dissipation
Tamb = 25 °C
-
-
-
Tsp = 25 °C
Tj
junction temperature
ambient temperature
storage temperature
150
+150
+150
°C
Tamb
Tstg
55
65
°C
°C
Source-drain diode
IS source current
[1]
Tamb = 25 °C
-
0.7
A
[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm2, t 5 s.
[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
http://www.twtysemi.com
sales@twtysemi.com
3 of 3
4008-318-123
