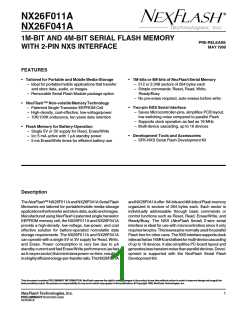

NX26F011A
NX26F041A
1M-BIT AND 4M-BIT SERIAL FLASH MEMORY
WITH 2-PIN NXS INTERFACE
PRE-RELEASE
MAY1999
1
2
3
4
5
6
7
8
9
10
FEATURES
• Tailored for Portable and Mobile Media-Storage
– Ideal for portable/mobile applications that transfer
and store data, audio, or images
• 1M-bits or 4M-bits of NexFlash Serial Memory
– 512 or 2,048 sectors of 264 bytes each
– Simple commands: Reset, Read, Write,
Ready/Busy
– Removable Serial Flash Module package option
– No pre-erase required, auto-erases before write
• NexFlash™ Non-volatileMemoryTechnology
– Patented Single-Transistor EEPROM Cell
– High-density, cost-effective, low-voltage/power
– 10K/100K endurance, ten years data retention
• Two-pin NXS Serial Interface
– Saves Microcontroller-pins, simplifies PCB layout,
low switching noise compared to parallel Flash
– Supports clock operation as fast as 16 MHz
– Multi-device cascading, up to 16 devices
• Flash Memory for Battery-Operation
– Single 5V or 3V supply for Read, Erase/Write
– Icc 5 mA active with 1 µA standby power
– 5 ms Erase/Write times for efficient battery use
• Development Tools and Accessories
– SFK-NXS Serial Flash Development Kit
Description
TheNexFlash™NX26F011AandNX26F041ASerialFlash
Memories are tailored for portable/mobile media-storage
applicationsthattransferandstoredata,audioandimages.
Manufactured using NexFlash’s patented single transistor
EEPROM memory cell, the NX26F011A and NX26F041A
provide a high-density, low-voltage, low-power, and cost
effective solution for battery-operated nonvolatile data
storage requirements. The NX26F011A and NX26F041A
can operate with a single 5V or 3V supply for Read, Write,
and Erase. Power consumption is very low due to µA
standbycurrentandfastErase/Writeperformance(asfast
as5mspersector)thatminimizespower-ontime,resulting
inahighlyefficientenergy-per-transferratio.TheNX26F011A
andNX26F041Aoffer1M-bitsand4M-bitsofFlashmemory
organized in sectors of 264 bytes each. Each sector is
individually addressable through basic commands or
control functions such as Reset, Read, Erase/Write, and
Ready/Busy. The NXS (NexFlash Serial) 2-wire serial
interface is ideal for use with microcontrollers since it only
requirestwopins.Thisleavespinsnormallyusedforparallel
Flash free for other uses. The NXS interface supports clock
ratesasfastas16MHzandallowsformulti-devicecascading
of up to 16 devices. It also simplifies PC-board layout and 11
generateslesstransientnoisethanparalleldevices.Devel-
opment is supported with the NexFlash Serial Flash
Development Kit.
12
This document contains PRELIMINARY INFORMATION. NexFlash reserves the right to make changes to its product at any time without notice in order to improve design and supply the
bestpossibleproduct. Weassumenoresponsibilityforanyerrorswhichmayappearinthispublication.Copyright1998, NexFlashTechnologies, Inc.
NexFlashTechnologies, Inc.
1
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
Pin Descriptions
PackageTypes
TheNX26F011AandNX26F041Aisavailableina24/28-pin
TSOP (Type II) package (Figure 1 and Table 1) or a
removableSerialFlashModule(seeNX25Mxxx/NX26Mxxx
Serial Flash Module data sheet for further information).
Device Address Pins (A0, A1, A2, A3)
There is no active chip select on the NX26F011A and
NX26F041A. Instead, four static device address pins
(A0, A1, A2, and A3) are provided for decoding from one to
16possibledevices(Figure2).Thisallowsupto4MB(using
an NX26F011A device) or 32MB (using an NX26F041A
device) to be addressed via a single 2-wire NXS interface.
The static address pins (A0-A3) must be tied high or low to
match the device address field (DA3-DA0) in the sector
Read and Erase/Write instruction sequences.
Power Supply Pins (Vcc and GND)
TheNX26F011AandNX26F041Asupportsinglepowersup-
plyRead, Erase, andWriteoperationsavailablein5Vand3V
Vccversions.Activepowerrequirementsareaslowas15mA
for 3V versions with standby current in the 1 µA range.
NXS Serial Interface Pins (SCK and SIO)
No Connect Pins (N/C)
The 2-wire NXS (NexFlash Serial) interface includes a
Clock Input pin (SCK) and a single bidirectional I/O pin for
data (SIO). All data to or from the SIO pin is clocked
relative to the rising edge of SCK. The 2-wire NXS serial
interfacemakestheNX26F011AandNX26F041Aanideal
solutionforremovablenon-volatilestorage. Asimpleedge
connector or cable/connector with four contacts (SCK,
SIO, Vcc, and GND) can support communications with
space efficiency and reliability. The NXS interface can
operate at clock rates up to 16 MHz for 5V versions.
The NX26F011A and NX26F041A uses only a few signal
pins. As a result, the TSOP package has numerous
noconnects(NC)thathavenoelectricalcontacttothedie.
1
2
3
4
5
6
7
8
28
27
26
25
24
23
22
21
20
19
18
17
16
15
A0
NC
A2
NC
NC
VCC
GND
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
Table 1. Pin Descriptions
A0, A1, A2, A3
Device Address
Serial Clock
Serial Data I/O
Power Supply
Ground
SCK
SIO
Vcc
GND
NC
9
10
11
12
13
14
A3
SCK
A1
SIO
No Connect
Figure 1. NX26F011A and NX26F041A Pin
Assignments
2
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
NX26F011A or
NX26F041A
U0
NX26F011A or
NX26F041A
U1
NX26F011A or
NX26F041A
U2
NX26F011A or
NX26F041A
U3
1
0
0
0
0
A0
A1
A2
A3
1
0
0
0
A0
A1
A2
A3
0
1
0
0
A0
A1
A2
A3
1
1
0
0
A0
A1
A2
A3
....
2
SCK
SIO
3
4
1
0
0
1
A0
A1
A2
A3
0
1
0
1
A0
A1
A2
A3
1
1
0
1
A0
A1
A2
A3
0
0
0
1
A0
A1
A2
A3
....
5
NX26F011A or
NX26F041A
U8
NX26F011A or
NX26F041A
U9
NX26F011A or
NX26F041A
U10
NX26F011A or
NX26F041A
U11
6
Figure 2. NX26F011A or NX26F041A Used in a Multi-device Configuration with up to 16-Devices on the 2-wire NSX
7
FUNCTIONAL OVERVIEW
Sector 0 (0000H)
8
2112 Bits (264 Bytes) Per Sector
The NexFlash NX26F011A and NX26F041A provide up to
1M-bitsor4M-bitsofnon-volatilememoryorganizedas512
or2,048smallsectorsof264bytes(4,288bits)each(Figure
3). Each sector is individually addressable using basic
instructionsequencesandcontrolfunctionscommunicated
through the devices 2-wire NXS interface.
Sector 1 (0001H)
9
Sector 2 (0002H)
ReadandErase/WriteInstructionSequences
10
11
12
Sectors 3-2045/4093
(0003-1FD/7FD)
The NX26F011A and NX26F041A have two basic instruc-
tionsequences:ReadandErase/Write. Unlikesomeother
Flashtechnologies, the erase and write operations of the
NX26F011A and NX26F041A are performed together in
one single operation (as fast as 5 ms per sector). Thus,
pre-erase of the memory is not necessary.
Sector 510/2046 (1FE/1FE)
Sector 511/2047 (1FF/7FF)
Both Read and Erase/Write instructions are made up of a
series of serial bit fields that include command, sector
address, device address, and sector data. The Read
instructionsequencealsoallowsthedevicetobepolledfor
Ready/Busy status.
Figure3. NX26F011AandNX26F041AArray
NexFlashTechnologies, Inc.
3
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
supplyoperatingvoltage).Duringthistimethedevicecanbe
tested for a Ready/Busy condition via a 16-bit status value
obtainedintheReadinstructionsequence.TheBusystatus
condition (6666H) indicates that the device has not yet
completeditswriteoperationandwillnotacceptreadorwrite
instructions. The Ready status condition (9999H) indicates
thatthedeviceisavailableforfurtherreadorwriteoperations.
Note that a delay time of tRP (~30 µs to 100 µs depending on
the voltage version being used) is required after the first low
to high clock transition of the Ready/Busy status read.
The instruction sequence format, flow charts, and clocking
diagramsforReadandErase/Writeoperationsareshownin
Figures 5 and 6, Figures 7 and 8, and Figures 9 and 10,
respectively. All data within an instruction sequence is
clockedontherisingedge.Allinstructionsequencefieldsare
orderedbymostsignificantbitfirst(MSB).Dataiserasedand
writtentotheNX26F041AandNX26F011Amemoryarraya
full sector (264 bytes) at a time. If all 264 bytes of a given
sector are not fully clocked into the device, the remaining
byte locations will be overwritten with indeterminate values.
Toensurethehighestlevelofdataintegritywriteoperations
should be verified and rewritten, if needed, (see High Data
Integrity Applications).
SectorTag/SyncBytes
The first byte of each sector is pre-programmed during
manufacturingwithaTag/Syncvalueof“C9H”.Althoughthe
first byte of each sector can be changed, it is recommended
thatTag/Syncvaluebemaintainedandincorporatedaspart
of the application’s sector formatting. The Tag/Sync values
serve two purposes. First, they provide a sync-detect that
can help verify if the instruction sequence was clocked into
thedeviceproperly.Secondly,theyserveasatagtoidentify
a fully functional (valid) sector. This is especially important
if “restricted sector” devices are used.
Reset and Idle
Uponpower-upandbetweenReadandErase/Writeinstruc-
tion sequences, the device’s internal control logic will be
reset. This is accomplished by asserting the SCK pin low
(toVIL)forgreaterthantRESET (~5msto10msdependingon
the voltage version being used). Once reset, the device
enters standby operation and will not wake-up until the next
rising edge of SCK. After an initial rising SCK occurs, the
device becomes ready for a new instruction sequence. Full
active power consumption starts after the correct device
address is decoded during a Read or Write instruction
sequence. To idle an instruction sequence between clocks,
SCK must be kept high (at VIH) for as long as needed. Note
that power will be in the active state when SCK is held high.
Restricted sector devices provide a more cost effective
alternativetoNX26F011AorNX26F041Adeviceswith100%
valid sectors. Restricted sector devices have a limited
number of sectors (32 maximum. for the NX26F011A and
NX26F041A)thatdonotmeetmanufacturingprogramming
criteria over the specified operating range. When such a
sectorisdetected,thefirstbyteistaggedwithapatternother
than “C9H”. In addition to individual sector tagging, all
restricted sectors for a given device are listed in the “device
information format” (see Device Initialization).
DeviceInitialization
Afterpower-upitisrecommendedthatthedeviceinformation
sector be read to electronically identify the device. The
deviceinformationformatcontainsadeviceIDthatidentifies
themanufacturer,partnumber(memorysize),andoperating
range. It also contains a list of any restricted sectors
(seeSectorTag/Syncbytes).Forafurtherdescriptionofthe
NX26F011AandNX26F041Adeviceinformationformat,see
theSerialFlashDeviceInformationSectorApplicationNote
SFAN-02.
HighDataIntegrityApplications
Data storage applications that use Flash memory or other
non-volatilemediamusttakeintoconsiderationthepossibil-
ity of noise or other adverse system conditions that may
affectdataintegrity.Forthoseapplicationsthatrequirehigher
levels of data integrity it is a recommended practice to use
Error Correcting Code (ECC) techniques. The NexFlash
SerialFlashDevelopmentKitprovidesasoftwareroutinefor
a 32-bit ECC that can detect up to two bit errors and correct
one. The ECC not only minimizes problems caused by
systemnoisebutcanalsoextendFlashmemoryendurance.
For those systems without the processing power to handle
ECC algorithms, a simple “verification after write” is recom-
mended. The NexFlash Serial Flash Development Kit
software includes a simple Write/Verify routine that will
comparedatawrittentoagivensectorandrewritethesector
if the compare is not correct.
AsshowninFigure6, theaddressforthedeviceinformation
sector address is at 5000H for both the NX26F011A and
NX26F041A. The device information sector is a “read-only”
sector. This assures that all device specific information,
such as the restricted sector list, is maintained and never
written over inadvertently.
Ready/BusyStatus
After an Erase/Write instruction sequence has been
executed, the device will become Busy while it erases and
writes the addressed sector’s memory. This period of time
willnotexceedtWP (~5to30msbasedonthespecifiedpower
4
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
Command
Address
1
Reserved
Status
Data
2
C3-C0 SA11-0 DA3-0 SA15-12 R31-R0 S15-S0 D0 - - - D2112
INITIAL CLOCK
To wake device from standby
(Data is "Don't Care")
3
COMMAND TYPE
1H = Read
MAIN SECTOR ADDRESS
000H-1FF for NX26F011A
000H-7FF for NX26F041A
4
DEVICE ADDRESS
A0-A3 pins = 0H-FH
5
AUXILARY SECTOR ADDRESS
0H = To address main sector address 0-FFF
5H = Device information sector
6
RESERVED
Use 00 00 00 00H
INPUT STATUS BYTES
9999H = Ready, 6666H = Busy
Note: Delay is required during
7
status byte read, see tRP in
AC Characteristics
8
INPUT SECTOR DATA BITS
0-2112 (264 Bytes)
9
Figure 5. Sector Read Instruction - Sequence and Bit Instruction
10
11
12
NexFlashTechnologies, Inc.
5
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
Command
Address
Reserved
Data
Control
C3-C0 A11-SA0 DA3-0 A15-12 R31-R0 D0 - - - D2112 X15-X0
INITIAL CLOCK
To wake device from standby
(Data is "Don't Care")
COMMAND TYPE
2H = Write
MAIN SECTOR ADDRESS
000H-1FF for NX26F011A
000H-7FF for NX26F041A
DEVICE ADDRESS
A0-A3 pins = 0H-FH
AUXILARY SECTOR ADDRESS
0H = main sector address 0-FFF
RESERVED
Use 00 00 00 00H
SECTOR DATA BITS
0-2112 (264 Bytes)
16 EXTRA CLOCKS
(Data is "Don't Care")
Figure 6. Sector Erase/Write Instruction - Sequence and Bit Format
6
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
Start Sector Read Routine
Start Sector Erase/Write Routine
1
Output clock (low to high) to
wake device from standby
Call Read Sector Routine to
check Ready/Busy and Tag
2
Output Command Sequence:
Device
Ready and Sector
Tag valid
-Read command C3-C0 (0001B)
-Main Sector Address A1-A0
(000-1FF-7FF)
No*
3
-Device Address DA3-DA0
(per state of A3, A2, A1, A0 pins)
Yes
Output one clock to wake
device from stand-by
-Auxilary Address A15-A12
0H for main array
5H device information sector
4
-Four reserved bytes R31-R0
(00 00 00 00H)
Output Command Sequence:
-Read command C3-C0 (0001B)
5
-Main Sector Address A1-A0
(000-1FF-7FF)
Input Ready/Busy Status S15-S0.
Note tRP delay time is
required during status read
(See AC Timing and Figure 10)
-Device Address DA3-DA0
(per state of A3, A2, A1, A0 pins)
-Auxilary Address A15-A12
0H for main array
6
Ready?
-Four reserved bytes R31-R0
(00 00 00 00H)
(99 99H)
No*
Yes
7
Input first byte of data
(Tag/Sync) from sector
Output (Rewrite )1st byte of sector
with C9H Tag/Sync bite
Valid Sector?
(C9H)
8
No*
Output remaining 264 bytes
(2112 bits) of sector data
Yes
9
Return to write routine?
Yes*
Output two bytes of zeros (00 00H)
No
Input remaining 264 bytes of
sector data (2112 bits)
10
11
12
Assert CLK low for RESET
to invoke Erase/Write Operation
and then standby operation
t
*Set Flag and process
accordingly upon return
*Set Flag and process
accordingly upon return
Assert CLK low for tRESET to
reset device and invoke standby
Return (1)
Return
Figure 7. Sector Read Operation Flow Chart
Figure 8. Sector Erase/Write Operation Flow Chart
Note:
1. To ensure higher data integrity verify each sector write with a sector read. See High Data Integrity Applications on Page 4.
NexFlashTechnologies, Inc.
7
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
Device leaves standby mode at this edge
SCK
SIO
0
0
0
1
A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 DA3 DA2 DA1 DA0 A15 A14 A13 A12
Read
12-Bit Sector Address
Device
Aux.
Command
Address
Address
SCK
SIO
MSB
LSB
Four Reserved Bytes (Use 00 00 00 00H)
tRP
SCK
SIO
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
Status Word (S15-S0): Ready: 9999H or Busy:6666H
Device Drives SIO Line
Float SIO so data direction can change from device input to output
2112 Clocks
Bytes 0 to 262
tRESET
8 Clocks
SCK
SIO
Bytes 0 to 263
Device Releases SIO Line
Figure 9. Read Instruction Sequence Clocking
8
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
1
Device leaves standby mode at this edge
SCK
2
0
0
1
0
A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 DA3 DA2 DA1 DA0
0
0
0
0
SIO
Write
12-Bit Sector Address
Device
0H
Command
Address
3
SCK
SIO
4
MSB
LSB
Four reserved bytes (use 00 00 00 00H)
8 Clocks
5
8 Clocks
Byte 0
2080 Clocks
SCK
SIO
6
Byte 1
Bytes 2 to 261
7
Device enters standby mode after
16 Extra Clocks
t
WP
tRESET
tWP
8 Clocks
Byte 263
8 Clocks
Byte 262
8
SCK
SIO
Don't Care
9
Figure 10. Erase/Write Instruction Sequence Clocking
10
11
12
NexFlashTechnologies, Inc.
9
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
ABSOLUTE MAXIMUM RATINGS(1)
Symbol
Vcc
Parameter
Conditions
Range
0 to 7.0
Unit
V
SupplyVoltage
VIN, VOUT
TSTG
Voltage Applied to Any Pin
StorageTemperature
LeadTemperature
RelativetoGround
Soldering, TenSeconds
–0.5 to Vcc + 0.6
–65 to +150
+300
V
°C
°C
TLEAD
Note:
1. This device has been designed and tested for the specified operation ranges. Proper operation outside of these levels is not
guaranteed. Exposure beyond absolute maximum ratings (listed above) may cause permanent damage
OPERATING RANGES
Symbol
Parameter
Conditions
Min
Max
Unit
Vcc
SupplyVoltage
5.0V
3.0V
3.0V
4.5
2.7
5.5
3.6
V
V
TA
AmbientTemperature,Operating
Commercial
Extended(1)
Industrial(1)
0
–15
–40
+70
+80
+85
°C
°C
°C
Note:
1. Contact NexFlash for availability of extended or industrial grade devices.
DC ELECTRICAL CHARACTERISTICS
Symbol
Parameter
Conditions
Min
Typ
—
Max
Unit
V
VIL
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Output Low Voltage CMOS(1)
Output High Voltage CMOS(1)
Input Leakage
–0.4
Vcc x 0.6
—
Vcc x 0.2
Vcc + 0.5
0.45
VIH
—
V
VOL
IOL = 2 mA, VCC = 4.5V
IOH = –400 µA, VCC = 4.5V
VCC = Min, IOL = 10 µA
VCC = Min, IOH = –10 µA
0 < VI N < Vcc
—
V
VOH
2.4
—
—
V
VOLC
VOHC
IL I
—
—
0.15
V
VCC – 0.3
–10
—
—
V
—
+10
µA
µA
IOL
I/O Leakage
0 < VIN < Vcc, Output Disabled
–10
—
+10
ICC (active)
Active Power Supply Current(2) fCLK ≤ 8 MHz (1/tCP)
VCC = 4.5V to 5.5V
VCC = 2.7V to 3.3V
—
—
15
5
30
10
mA
µA
pF
pF
ICCSB (standby) Standby Power Supply Current SIO = 0V or VCC,
SCK = 0V
—
—
—
<1
—
—
10
10
10
CIN
Input Capacitance(1)
TA = 25°C, VCC = 5V or 3V
Frequency = 1 MHz
COUT
Output Capacitance(1)
TA = 25°C, VCC = 5V or 3V
Frequency = 1 MHz
Notes:
1. Tested on a sample basis or specified via design or characterization data.
2. The device leaves “standby” power consumption after the clock transitions from low-to-high. Full “active” power consumption
starts after the correct device address has been decoded during a sector read or write sequence.
10
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
AC ELECTRICAL CHARACTERISTICS
5V (16 MHz)
3V (8 MHz)
Symbol Description
Min Typ Max
Min Typ Max
Unit
ns
1
t
t
t
t
t
t
t
t
CP
SCKSerialClockPeriod
62
26
—
—
40
0
—
—
—
—
—
—
—
—
—
—
7
125
57
—
—
100
0
—
—
—
—
—
—
—
—
—
—
5
CL, tCH
CR
SCK Serial Clock High or Low Time
SCK Serial Clock Rise Time(1)
SCK Serial Clock Fall Time(1)
ns
ns
2
CF
7
5
ns
DS
SIO Setup Time to SCK Rising Edge
SIO Hold Time From SCK Rising Edge
SIO Valid after SCK(2)
—
—
60
5
—
—
115
10
ns
DH
ns
DV
—
1.5
—
3
ns
3
RESET
SCKLowDurationfor
µs
Valid Reset or Standby (See Figures 9 & 10)
ReadPre-dataDelay(See Figure 9)
Erase/Write Program Time(3) (See Figure 10)
t
t
RP
30
—
—
100
—
—
µs
ms
4
WP
—
3
5
—
5
10
Notes:
1. Test points are 10% and 90% points for rise/fall times. All other timings are measured at the 50% point.
2. With 50 pF (8 MHz) or 30 pF (16 MHz) load SIO to GND.
3. The NX26F011A and NX26F041A are designed for Erase/Write endurances of 10K cycles. Endurance in the range of 100K
cycles can be obtained using ECC software methods like those provided in the SFK Serial Flash Development Kit.
5
6
7
CLOCK AND DATA TIMING
8
9
tCP
tCH
tCL
t
CF
t
CR
SCK
SIO
10
11
12
tDV
tDV
tDS
tDH
Read
Write
NexFlashTechnologies, Inc.
11
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
PACKAGE INFORMATION
Plastic TSOP - 28-pin
Package Code: V (Type I)
1
E
H
N
D
SEATING PLANE
A
L
α
e
B
C
A1
Plastic TSOP (T—Type I)
Millimeters Inches
Min Max
Symbol Min
Max
Ref. Std.
No.Leads
Notes:
28
1. Controlling dimension: millimeters, unless
A
A1
B
C
D
E
H
e
1.00
0.05
0.15
0.10
7.90
11.60 11.80
13.30 13.50
0.55 BSC
1.20
0.20
0.25
0.20
8.10
0.039 0.047
0.002 0.008
0.006 0.010
0.004 0.008
0.311 0.319
0.457 0.465
0.524 0.531
0.022 BSC
otherwise specified.
2. BSC = Basic lead spacing between centers.
3. Dimensions D and E do not include mold
flash protrusions and should be measured
from the bottom of the package.
4. Formed leads shall be planar with respect
to one another within 0.004 inches at the
seating plane.
L
0.50
0.70
0.020 0.028
α
0°
5°
0°
5°
12
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
ORDERING INFORMATION
Size
Order Part No.
Package/Description(2)
1M-bit
NX26F011A-3V-R(1)
NXS, 28-pin, TSOP (Type I)
≤32 RS, 3V Low Voltage
1
1M-bit
NX26F011A-5V-R(1)
NXS, 28-pin, TSOP (Type I)
≤32 RS, 5V Standard Voltage
2
4M-bit
4M-bit
NX26F041A-3V-R
NXS, 28-pin, TSOP (Type I)
≤32 RS, 3V Low Voltage
NX26F041A-5V-R(1)
NXS, 28-pin, TSOP (Type I)
≤32 RS, 5V Standard Voltage
3
Notes:
1. Add E (Extended) or I (Industrial) after package designator (V) for alternative temperature
grades.
2. See 26Mxxx data sheet for Serial Flash Module package.
4
5
6
PRELIMINARY DESIGNATION
LIFE SUPPORT POLICY
The “Preliminary” designation on an NexFlash data sheet
indicates that the product is not fully characterized. The
specifications are subject to change and are not guaran-
teed.NexFlashoranauthorizedsalesrepresentativeshould
be consulted for current information before using this
product.
NexFlash does not recommend the use of any of its
products in life support applications where the failure or
malfunction of the product can reasonably be expected to
cause failure in the life support system or to significantly
affect its safety or effectiveness. Products are not autho-
rizedforuseinsuchapplicationsunlessNexFlashreceives
written assurances, to its satisfaction, that:
7
8
IMPORTANT NOTICE
(a) the risk of injury or damage has been minimized;
(b) the user assumes all such risks; and
9
NexFlash reserves the right to make changes to the
products contained in this publication in order to improve
design, performance or reliability. NexFlash assumes no
responsibility for the use of any circuits described herein,
conveys no license under any patent or other right, and
makesnorepresentationthatthecircuitsarefreeofpatent
infringement. Charts and schedules contained herein
reflectrepresentativeoperatingparameters,andmayvary
depending upon a user’s specific application. While the
informationinthispublicationhasbeencarefullychecked,
NexFlash shall not be liable for any damages arising as a
result of any error or omission.
(c) potential liability of NexFlash is adequately protected
under the circumstances.
10
11
12
Trademarks:
NexFlashTM is a trademark of NexFlash Technologies, Inc.
All other marks are the property of their respective owners.
NexFlashTechnologies, Inc.
13
PRELIMINARYNXSF009A-0599
05/05/99 ©
NX26F011A
NX26F041A
14
NexFlashTechnologies, Inc.
PRELIMINARYNXSF009A-0599
05/05/99 ©
厂商 型号 描述 页数 下载

ETC

 		NX2 P CLIP黑包100 Inhalt亲Packung ： 100 Stk阅读。\n[ P CLIP BLACK PACK 100 Inhalt pro Packung: 100 Stk. ] 1 页

AMPHENOL

 		NX2000C000J0G [ Barrier Strip Terminal Block ] 1 页

ETC

 		NX200105 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200106 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200107 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

ETC

 		NX200108 [ SynJet ZFlow 90 Outdoor Cooler ] 2 页

NDK

 		NX2012SA 晶单元， OA / AV /移动通信[ Crystal Units, For OA / AV / Mobile Communications ] 1 页

NDK

 		NX2016AA 水晶单位对于OA / AV /短距离无线[ Crystal Units For OA / AV/ Short-range Wireless ] 1 页

NDK

 		NX2016AB 晶体单元[ Crystal Units ] 1 页

NDK

 		NX2016GC [ For Automotive ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215407s
