2SK3019TL

型号:

2SK3019TL

描述:

2.5V驱动N沟道MOS FET[ 2.5V Drive Nch MOS FET ]

品牌:

ROHM[ ROHM ]

页数:

4 页

PDF大小:

78 K

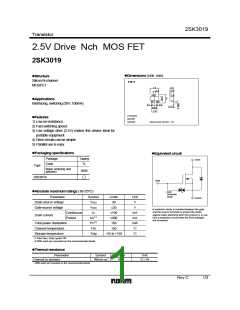

2SK3019
Transistor
2.5V Drive Nch MOS FET
2SK3019
zDimensions (Unit : mm)
zStructure
Silicon N-channel
MOSFET
EMT3
0.7
1.6
0.3
0.55
( )
3
zApplications
( )
2
( )
1
Interfacing, switching (30V, 100mA)
0.2
0.2
0.15
0.5 0.5
1.0
(1)Source
(2)Gate
zFeatures
1) Low on-resistance.
(3)Drain
Abbreviated symbol : KN
2) Fast switching speed.
3) Low voltage drive (2.5V) makes this device ideal for
portable equipment.
4) Drive circuits can be simple.
5) Parallel use is easy.
zPackaging specifications
zEquivalent circuit
Package
Code
Taping
TL
Drain
Type
Basic ordering unit
(pieces)
3000
2SK3019
Gate
zAbsolute maximum ratings (Ta=25°C)
Gate
Protection
Diode
Parameter
Drain-source voltage
Gate-source voltage
Symbol
Limits
30
Unit
V
Source
VDSS
GSS
V
20
V
A protection diode is included between the gate
and the source terminals to protect the diode
against static electricity when the product is in use.
Use a protection circuit when the fixed voltages
are exceeded.
Continuous
Pulsed
I
D
100
mA
mA
mW
°C
Drain current
1
I
DP
400
2
Total power dissipation
Channel temperature
P
D
150
Tch
150
Storage temperature
Tstg
55 to +150
°C
1 Pw10µs, Duty cycle1%
2 With each pin mounted on the recommended lands.
zThermal resistance
Parameter
Channel to ambient
Symbol
Rth(ch-a) ∗
Limits
833
Unit
°C / W
With each pin mounted on the recommended lands.
Rev.C
1/3
2SK3019
Transistor
zElectrical characteristics (Ta=25°C)
Symbol Min.
Typ.
Max.
1
Unit
µA
V
Conditions
V
GS= 20V, VDS=0V
Parameter
I
GSS
(BR)DSS
DSS
30
Gate-source leakage
V
I
D=10µA, VGS=0V
Drain-source breakdown voltage
I
1.0
1.5
8
µA
V
V
V
DS=30V, VGS=0V
Zero gate voltage drain curren
t
V
GS(th)
DS(on)
DS(on)
0.8
DS=3V, I =100µA
D
Gate threshold voltage
R
R
5
I
I
I
D
D
D
=10mA, VGS=4V
=1mA, VGS=2.5V
=10mA, VDS=3V
DS=5V
Static drain-source on-state
resistance
7
13
|Yfs
|
20
ms
pF
pF
pF
ns
ns
ns
ns
Forward transfer admittance
Input capacitance
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
C
iss
oss
rss
d(on)
13
9
V
V
C
GS=0V
C
4
f=1MHz
t
t
15
35
80
80
I
D=10mA, VDD 5V
t
r
V
GS=5V
d(off)
Turn-off delay time
Fall time
RL=500Ω
t
f
RG
=10Ω
zElectrical characteristic curves
0.15
200m
2
1.5
1
V
DS=3V
V
DS=3V
4V
3V
100m
50m
I
D
=0.1mA
Pulsed
Ta=25°C
Pulsed
Pulsed
3.5V
20m
10m
5m
0.1
0.05
0
2.5V
2V
2m
1m
Ta=125°C
75°C
25°C
25°C
0.5
0
0.5m
0.2m
0.1m
V
2
GS=1.5V
0
1
3
4
5
50 25
0
25
50
75 100 125 150
3
0
1
2
4
DRAIN-SOURCE VOLTAGE : VDS (V)
CHANNEL TEMPERATURE : Tch (°C)
GATE-SOURCE VOLTAGE : VGS (V)
Fig.1 Typical output characteristics
Fig.2 Typical transfer characteristics
Fig.3 Gate threshold voltage vs.
channel temperature
50
50
15
V
GS=4V
Ta=25°C
Pulsed
V
GS=2.5V
Pulsed
Pulsed
Ta=125°C
75°C
Ta=125°C
75°C
20
10
5
20
10
5
25°C
25°C
25°C
10
5
25°C
2
2
I
D=0.1A
1
1
I
D=0.05A
0.5
0.001 0.002
0.5
0.001 0.002
0
0.005
0.01
0.02
0.05
0.1
0.2
0.5
0
5
10
15
20
0.005
0.01
0.02
0.05
0.1
0.2
0.5
DRAIN CURRENT : I
D
(A)
GATE-SOURCE VOLTAGE : VGS (V)
DRAIN CURRENT : ID (A)
Fig.4 Static drain-source on-state
resistance vs. drain current (Ι)
Fig.6 Static drain-source
on-state resistance vs.
gate-source voltage
Fig.5 Static drain-source on-state
resistance vs. drain current (ΙΙ)
Rev.C
2/3
2SK3019
Transistor
9
8
7
0.5
0.2
200m
V
GS=4V
V
DS=3V
V
GS=0V
Pulsed
Pulsed
Pulsed
100m
50m
Ta=−25°C
25°C
I
D
=100mA
0.1
20m
75°C
6
5
4
3
2
1
Ta=125°C
0.05
125°C
10m
5m
ID=50mA
75°C
25°C
25°C
0.02
0.01
2m
1m
0.005
0.5m
0.002
0.001
0.2m
0.1m
0
50 25
0
25
50
75 100 125 150
0.0001 0.0002
0.0005 0.001
0.002
0.005
0.01
0.02
0.05
0.1
0.2
0.5
0
0.5
1
1.5
CHANNEL TEMPERATURE : Tch (°C)
DRAIN CURRENT : ID (A)
SOURCE-DRAIN VOLTAGE : VSD (V)
Fig.7 Static drain-source on-state
resistance vs. channel
temperature
Fig.8 Forward transfer
Fig.9 Reverse drain current vs.
admittance vs. drain current
source-drain voltage (Ι)
200m
50
1000
500
Ta=25°C
Ta=25°C
Pulsed
Ta=25°C
t
f
V
V
DD=5V
GS=5V
f=1MH
Z
100m
50m
V
GS=0V
t
d(off)
20
10
5
RG=10Ω
Pulsed
200
100
Ciss
20m
10m
5m
V
GS=4V
0V
50
Coss
t
r
2m
1m
20
10
5
t
d(on)
Crss
2
0.5m
1
0.2m
0.1m
0.5
0.1 0.2
2
0.5
1
2
5
10
20
50
0.1 0.2
0.5
1
2
5
10 20 50
100
0
0.5
1
1.5
DRAIN-SOURCE VOLTAGE : VDS (V)
DRAIN CURRENT : ID (mA)
SOURCE-DRAIN VOLTAGE : VSD (V)
Fig.11 Typical capacitance vs.
drain-source voltage
Fig.12 Switching characteristics
Fig.10 Reverse drain current vs.
(See Figures 13 and 14 for
the measurement circuit
and resultant waveforms)
source-drain voltage (ΙΙ)
zSwitching characteristics measurement circuit
Pulse width
90%
50%
10%
50%
V
GS
V
V
GS
DS
I
D
VDS
RL
D.U.T.
10%
RG
10%
90%
VDD
90%
t
d (on)
tr
t
f
t
d (off)
t
off
t
on
Fig.13 Switching time measurement circuit
Fig.14 Switching time waveforms
Rev.C
3/3
Notice
N o t e s
1) The information contained herein is subject to change without notice.
2) Before you use our Products, please contact our sales representative and verify the latest specifica-
tions :
3) Although ROHM is continuously working to improve product reliability and quality, semicon-
ductors can break down and malfunction due to various factors.
Therefore, in order to prevent personal injury or fire arising from failure, please take safety
measures such as complying with the derating characteristics, implementing redundant and
fire prevention designs, and utilizing backups and fail-safe procedures. ROHM shall have no
responsibility for any damages arising out of the use of our Poducts beyond the rating specified by
ROHM.
4) Examples of application circuits, circuit constants and any other information contained herein are
provided only to illustrate the standard usage and operations of the Products. The peripheral
conditions must be taken into account when designing circuits for mass production.
5) The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly,
any license to use or exercise intellectual property or other rights held by ROHM or any other
parties. ROHM shall have no responsibility whatsoever for any dispute arising out of the use of
such technical information.
6) The Products are intended for use in general electronic equipment (i.e. AV/OA devices, communi-
cation, consumer systems, gaming/entertainment sets) as well as the applications indicated in
this document.
7) The Products specified in this document are not designed to be radiation tolerant.
8) For use of our Products in applications requiring a high degree of reliability (as exemplified
below), please contact and consult with a ROHM representative : transportation equipment (i.e.
cars, ships, trains), primary communication equipment, traffic lights, fire/crime prevention, safety
equipment, medical systems, servers, solar cells, and power transmission systems.
9) Do not use our Products in applications requiring extremely high reliability, such as aerospace
equipment, nuclear power control systems, and submarine repeaters.
10) ROHM shall have no responsibility for any damages or injury arising from non-compliance with
the recommended usage conditions and specifications contained herein.
11) ROHM has used reasonable care to ensur the accuracy of the information contained in this
document. However, ROHM does not warrants that such information is error-free, and ROHM
shall have no responsibility for any damages arising from any inaccuracy or misprint of such
information.
12) Please use the Products in accordance with any applicable environmental laws and regulations,
such as the RoHS Directive. For more details, including RoHS compatibility, please contact a
ROHM sales office. ROHM shall have no responsibility for any damages or losses resulting
non-compliance with any applicable laws or regulations.
13) When providing our Products and technologies contained in this document to other countries,
you must abide by the procedures and provisions stipulated in all applicable export laws and
regulations, including without limitation the US Export Administration Regulations and the Foreign
Exchange and Foreign Trade Act.
14) This document, in part or in whole, may not be reprinted or reproduced without prior consent of
ROHM.
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
