2SK2479

型号:

2SK2479

描述:

低通态电阻: RDS ( ON) = 7.5最大值( VGS = 10V , ID = 2.0A )高雪崩性能等级。[ Low On-state Resistance:RDS(on)=7.5 max.(VGS=10V,ID=2.0A) High Avalanche Capability Ratings ]

品牌:

TYSEMI[ TY Semiconductor Co., Ltd ]

页数:

2 页

PDF大小:

260 K

TT

rr

Maa

nn

Oss

Sii

ss

Ftt

II

oEo

CC

rr

Tss

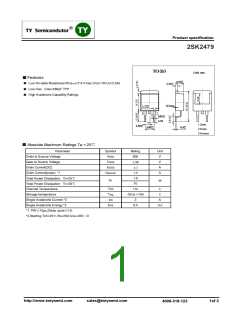

Product specification
2SK2479
TO-263
Unit: mm
Features
+0.2
4.57
-0.2
+0.1
1.27
-0.1
Low On-state Resistance:RDS(on)=7.5 max.(VGS=10V,ID=2.0A)
Low Ciss Ciss=485pF TYP
High Avalanche Capability Ratings
+0.1
1.27
-0.1
0.1max
+0.1
0.81
-0.1
2.54
1 Gate
+0.2
2.54
-0.2
+0.1
5.08
-0.1
+0.2
0.4
-0.2
2 Drain
3 Source
Absolute Maximum Ratings Ta = 25
Parameter
Drain to Source Voltage
Symbol
VDSS
Rating
900
30
Unit
V
Gate to Source Voltage
VGSS
V
Drain Current(DC)
ID(DS)
A
3
Drain Current(pulse) *1
ID(pulse)
A
8
1.5
70
Total Power Dissipation TA=25
Total Power Dissipation TC=25
Channel Temperature
PT
W
Tch
Tstg
IAS
150
Storage temperature
-55 to +150
Single Avalanche Current *2
Single Avalanche Energy *2
*1. PW 10ìs,Dduty cycle 1%.
*2.Starting Tch=25 ,RG=25Ù,VGS=20V
3
A
EAS
5.4
mJ
0
http://www.twtysemi.com
sales@twtysemi.com
1of 2
4008-318-123
TT

rr

Maa

nn

Oss

Sii

ss

Ftt

II

oEo

CC

rr

Tss

Product specification
2SK2479
Electrical Characteristics Ta = 25
Parameter
Drain to Source On-state Resistance
Gate Cut-off Voltage
Forward Transfer Admittance
Drain Cut-off Current
Gate Leakage Current
Input Capacitance
Symbol
Testconditons
Min
Typ
5.6
Max
7.5
Unit
Ù
RDS(on) VGS = 10 V, ID = 2.0 A
VGS(off) VDS = 10 V, ID = 1 mA
2.5
0.8
3.5
V
VDS = 20 V, ID = 2.0 A
VDS = VDSS, VGS = 0
VGS = 30 V, VDS = 0
S
Yfs
IDSS
IGSS
Ciss
Coss
Crss
td(on)
tr
100
ìA
nA
pF
pF
pF
ns
ns
ns
ns
100
485
75
10
12
5
VDS = 10 V
VGS = 0
Output Capacitance
Feedback Capacitance
Turn-on Delay Time
Rise Time
f = 1 MHz
ID = 2.0 A
VGS = 10 V
VDD = 150 V
RG = 10 Ù
Turn-off Delay Time
Fall Time
td(off)
tf
35
8
Total Gate Charge
Qg
17
3
ID = 3.0 A
VDD = 450 V
VGS = 10 V
nC
Gate-Source Charge
Gate-Drain Charge
Qgs
Qgd
8
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
VF(S-D) IF = 3.0 A, VGS = 0
1.0
670
3.0
V
trr
ns
ìC
IF = 3.0 A, VGS = 0
di/dt = 50 A/ ìs
Qrr
http://www.twtysemi.com
sales@twtysemi.com
2 of 2
4008-318-123
