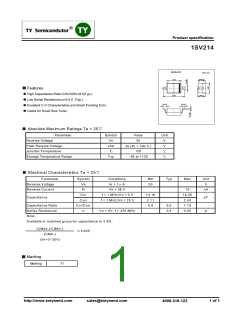

Product specification
1SV214
SOD-323
Unit: mm
+0.1
-0.1
+0.05
0.85
-0.05
1.7
Features
High Capacitance Ratio:C2V/C25V=6.5(Typ.)
Low Series Resistance:rs=0.4 (Typ.)
Excellent C-V Characteristics,and Small Tracking Error.
Useful for Small Size Tuner.
+0.1
-0.1
2.6
1.0max
0.475
0.375
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Value
30
Unit
V
Reverse Voltage
VR
VRM
Tj
Peak Reverse Voltage
Junction Temperature
V
35 (RL = 10K
125
)
Storage Temperature Range
Tstg
-55 to +125
Electrical Characteristics Ta = 25
Parameter
Reverse Voltage
Symbol
VR
Conditions
Min
30
Typ
Max
Unit
V
IR = 1
A
Reverse Current
Capacitance
IR
VR = 28 V
10
nA
C2V
f = 1 MHz;VR = 2 V
f = 1 MHz;VR = 25 V
14.16
2.11
5.9
16.25
2.43
7.15
0.55
pF
C25V
C2V/C25V
rs
Capacitance Ratio
Series Resistance
Note :
6.5
0.4
VR = 5V, f = 470 MHz
Available in matched group for capacitance to 2.5%.
C(Max.)-C(Min.)
0.025
C(Min.)
(VR=2~25V)
Marking
Marking
T1
http://www.twtysemi.com
1 of 1
