QX2014

型号:

QX2014

品牌:

ETC[ ETC ]

页数:

6 页

PDF大小:

133 K

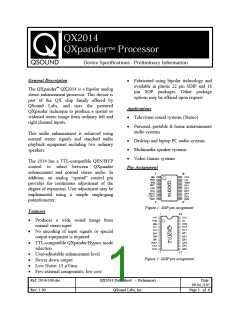

QX2014
QXpanderÔ Processor
Device Specifications - Preliminary Information
General Description
·
Fabricated using bipolar technology and
available in plastic 22 pin SDIP and 18
pin SOP packages. Other package
options may be offered upon request.
The QXpanderQX2014 is a bipolar analog
stereo enhancement processor. This device is
part of the QX chip family offered by
QSound Labs, and uses the patented
QXpander technique to produce a spatial or
widened stereo image from ordinary left and
right channel inputs.
Applications
·
·
Television sound systems (Stereo)
Personal, portable & home entertainment
audio systems
This audio enhancement is achieved using
normal stereo signals and standard audio
playback equipment including two ordinary
speakers.
·
·
·
Desktop and laptop PC audio systems
Multimedia speaker systems
Video Games systems
The 2014 has a TTL-compatible QEN/BYP
control to select between QXpander
enhancement and normal stereo audio. In
addition, an analog “spread” control pin
provides for continuous adjustment of the
degree of expansion. User adjustment may be
implemented using a simple single-gang
potentiometer.
Pin Assignment
Figure 1: SOP pin assignment
Features
·
·
·
Produces a wide sound image from
normal stereo input
No encoding of input signals or special
output equipment is required
TTL-compatible QXpander/Bypass mode
selection
·
·
·
·
User-adjustable enhancement level
Power down output
Low Noise: 15 mVrms
Figure 2: SDIP pin assignment
Few external components; low cost
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 1 of 6
QX2014 QXpander Processor
Device Specifications
For simple QXpander/Bypass selection, the
B/Q control pin is a TTL-compatible input.
Principles of Operation.
In ordinary stereo systems, the stereo image
is formed between the left and right
speakers, and is confined by the speaker
positions (i.e., the "sound stage" is located
between the two speakers). The QXpander is
designed to form the stereo image beyond
the speakers, thus enlarging the "sound
stage".
B/Q
0
Output
Bypass
1
QXpander
Table 2: QXpander/Bypass Mode Selection
Power down output.
The voltage of the capacitor at VREF is
approximately half of supply voltage and is
compared with the internal Vcc supply. The
comparator output goes high when the
internal Vcc supply drops below the voltage
maintained at the capacitor at VREF. This
signal may be used to latch a power down
mute function for an output amplifier.
If the center channel is defined as the
monaural or common component of the left
and right channels, then Figure 2 represents
the spatial response of the QXpander at a
typical setting of the spread control, vs the
normal image width of stereo in bypass
mode.
Normally, the QXpander is used in the
preamplifier stage between the stereo source
and the amplifier stages used to drive the
speakers. The QXpander enhancements can
be disabled using the bypass control allowing
the unchanged stereo signal to pass through
to the amplifier stages. Figure shows the
functional elements of the QX2014.
Figure 3: QXpander Spatial Response
Stereo
L
L
QXpander
Spatial
Enhancement
The degree of QXpander enhancement can
be controlled via the SPC and QIN pins,
most conveniently by connecting a single-
gang 50k linear pot between SPC and
ground, with the wiper AC coupled to QIN
through a 2.2µF electrolytic capacitor. (See
typical application schematic.)
Stereo In
R
Stereo Out
R
Switch
SPREAD
QEN/BYP
Figure 4: QXpanderSimplified Block Diagram
QIN Coupling Capacitor
Spread
Min
Max
GND
SPC
Table 1: Spread Control
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 2 of 6
QX2014 QXpander Processor
Device Specifications
1
2
3
4
To output mute latch
D
D
VCC
SW1
Bypass
QSound
C6
C13
0.1uF
R5
10K
10uF
C5
C12
10nF
47uF
C
C
B
A
P1B
L1
P2B
L1
C7
L2
L2
C3
2.2uF
17
8
Lin
Lout
Left Input
Left Output
22uF
C8
1
7
Rin
Rout
GND
QF6
QX2014
QXpander Processor
P1A
P2A
C4
2.2uF
R1
R1
22uF
C11
R2
5
9
R2
QIN
SPC
2.2uF
Right Input
Right Output
CCW - Min
CW - Max
6
10
R6
50K
Spread Control
U1
QX2014
B
R4
18K
R3
R2
R1
10K
18K
16K5 (1%)
C2
10nF
C1
10nF
NOTES:
A
Resistor Tolerance: +/- 5%; except R2: +/-1%
C1, C2 Monolithic ceramic: +/- 10%
1
2
3
4
Figure 5: QX2014 QXpander Typical Application
QSound applications engineers can assist customers in integrating the QX2014 into their
application designs.
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 3 of 6
QX2014 QXpander Processor
Device Specifications
Absolute Maximum Ratings*
TA = +25 °C
Parameter
Supply Voltage
Input Voltage
Symbol
VCC,max
VIN,max
IO,max
Pd
Rating
13
GND £ VIN £ VCC
10
Unit
V
V
mA
mW
°C
Output Current
Power dissipation
Operating Temperature
Storage Temperature
350
-20 ~ +75
-20 ~ +125
Topr
Tstg
°C
Warning: Operation of the device at or beyond these limits may result in permanent damage to the
device. Normal operation is not guaranteed at these extremes.
Recommended Operating Conditions
Parameter
Supply Voltage
Operating Temperature
Symbol
VCC,op
Topr
Rating
4.5 ~ 12.0
-20 ~ +75
Unit
V
°C
Analog Characteristics:
(VCC = 9V, TA = +25 °C, Vbyp = 5V, LIN=RIN=0VRMS, unless otherwise specified.)
Parameter
Supply Current
TC
Sym
ICC
Min Typ
Max
22
Unit
mA
16
Input Impedance
Input Voltage, Analog,1
Input Voltage, Analog,2
Voltage Gain, QXpander,1
Voltage Gain, QXpander,2
Voltage Gain, QXpander,3
Voltage Gain, QXpander,4
Voltage Gain, Bypass,1
RI
Vin,1
Vin,2
Gqx,1
Gqx,2
Gqx,3
Gqx,4
Gby,1
Gby,2
THDqx
21
30
39
kW
VRMS
VRMS
dB
dB
dB
dB
dB
dB
%
1
2
3
4
5
6
7
8
9
0.75 0.9
0.4 0.55
8.5 9.5
10.5
6
10.5
6
+1
+1
0.3
0.15
35
4
5
8.5 9.5
4
-1
-1
5
0
0
0.1
0.03
15
Voltage Gain, Bypass,2
Total Harmonic Distortion, QXpander
Total Harmonic Distortion, Bypass
Output Noise Voltage, QXpander
10 THDby
11 Vno,qx
%
mVRMS
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 4 of 6
QX2014 QXpander Processor
Device Specifications
Parameter
TC
Sym
Min Typ
Max
Unit
Output Noise Voltage, Bypass
12
Vno,by
10
25
mVRMS
dB
dB
dB
V
Signal-Noise Ratio, QXpander
Signal-Noise Ratio, Bypass
Channel Balance
BYP Terminal Voltage, H
BYP Terminal Voltage, L
BYP Terminal Current, H
SNR
SNR
CB
Vby,h
Vby,l
Iby,h
90
95
-1.0
2.1
0
95
99
0
13
14
15
16
+1.0
VCC
0.7
V
350
mA
BYP Terminal Current, L
Load Resistance
17
Iby,l
RL
-10
10
mA
kW
pF
Load Capacitance
Usable Bandwidth
CL
1000
BW
20
20000
Hz
Test Conditions:
1.
2.
3.
4.
5.
6.
7.
8.
9.
f=1kHz, LIN and RIN 0° phase difference, and output voltage T.H.D. no greater than 1%.
f=1kHz, LIN and RIN 180° phase difference, and output voltage T.H.D. no greater than 1%.
LIN=1 VRMS, 1 kHz, RIN=0 V, at LOUT.
LIN=1 VRMS, 1 kHz, RIN=0 V, at ROUT.
LIN=0 V, RIN=1 VRMS, 1 kHz, at ROUT.
LIN=0 V, RIN=1 VRMS, 1 kHz, at LOUT.
LIN=1 VRMS, 1 kHz, RIN=0 V, VBYP=0V, at LOUT.
LIN=0 V, RIN=1 VRMS, 1 kHz, VBYP=0V, at ROUT.
Total Harmonic Distortion (THD) at LOUT and ROUT (QXpander active):
a)
b)
LIN = 1 VRMS , RIN = 0 V.
LIN = 0 V, RIN = 1 VRMS
.
10.
11.
12.
13.
Test Condition 8, VBYP = 0V (Bypass)
BW = 20 ~ 20000 Hz, LIN = RIN = 0 V, A curve, QXpander active: at LOUT and ROUT.
BW = 20 ~ 20000 Hz, LIN = RIN = 0 V, A curve, VBYP = 0 V (Bypass): at LOUT and ROUT.
LIN = RIN = 1 VRMS , 1 kHz, VBYP = 0 V (Bypass), ROUT - LOUT (R - L).
14.
15.
16.
17.
High-level input voltage of BYP terminal, QXpander mode, maximum spread
Low-level input voltage of BYP terminal, Bypass mode, no spread (normal stereo).
Input current of BYP terminal, VBYP=5V
Input current of BYP terminal, VBYP=0V
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 5 of 6
QX2014 QXpander Processor
Device Specifications
Package Information
Figure 6: SOP-18A Package Option
.
Figure 7: SDIP-22A Package Option
Note: All dimensions in millimetres. Other package options may be offered upon request
Ref: 2014v100.doc
Rev: 1.00
QX2014 Data Sheet -- Preliminary
QSound Labs, Inc.
Date:
99.04.2107
Page 6 of 6
