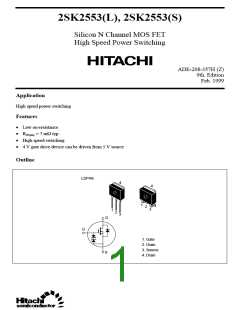

2SK2553(L), 2SK2553(S)
Silicon N Channel MOS FET
High Speed Power Switching
ADE-208-357H (Z)
9th. Edition
Feb. 1999
Application
High speed power switching
Features
•
•
•
•
Low on-resistance
RDS(on) = 7 mΩ typ.
High speed switching
4 V gate drive device can be driven from 5 V source
Outline
LDPAK
4
4
1
2
3
1
2
3
D
G
1. Gate
2. Drain
3. Source
4. Drain
S
2SK2553
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
60
VGSS
ID
ID(pulse)
IDR
±20
V
50
A
Note 1
Drain peak current
Body to drain diode reverse drain current
Avalanche current
200
A
50
A
Note 3
IAP
45
A
Note 3
Note 2
Avalanche energy
EAR
Pch
Tch
174
mJ
W
°C
°C
Channel dissipation
Channel temperature
Storage temperature
75
150
Tstg
–55 to +150
Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 %
2. Value at Tc = 25°C
3. Value at Tch = 25°C, Rg ≥ 50 Ω
2
2SK2553
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
Typ
Max
Unit
Test Conditions
Drain to source breakdown
voltage
V(BR)DSS
V(BR)GSS
IGSS
60
—
—
V
ID = 10 mA, VGS = 0
Gate to source breakdown
voltage
±20
—
—
V
IG = ±100 µA, VDS = 0
Gate to source leak current
—
—
1.0
—
—
—
—
7
±10
10
µA
µA
V
VGS = ±16 V, VDS = 0
VDS = 60 V, VGS = 0
ID = 1 mA, VDS = 10 V
ID = 25 A
Zero gate voltage drain current IDSS
Gate to source cutoff voltage
VGS(off)
2.0
10
Static drain to source on state RDS(on)
resistance
mΩ
V
GS = 10 VNote 1
ID = 25 A
GS = 4 VNote 1
ID = 25 A
DS = 10 V Note 1
—
10
55
16
—
mΩ
V
Forward transfer admittance
|yfs|
35
S
V
Input capacitance
Output capacitance
Ciss
—
—
—
—
—
—
—
—
3550
1760
500
35
—
—
—
—
—
—
—
—
pF
pF
pF
ns
ns
ns
ns
V
VDS = 10 V
VGS = 0
Coss
Reverse transfer capacitance Crss
f = 1 MHz
ID = 25 A
VGS = 10 V
RL = 1.2 Ω
Turn-on delay time
Rise time
td(on)
tr
td(off)
tf
230
470
360
0.85
Turn-off delay time
Fall time
Body to drain diode forward
voltage
VDF
IF = 50 A, VGS = 0
Body to drain diode reverse
recovery time
trr
—
135
—
ns
IF = 50 A, VGS = 0
diF / dt = 50 A / µs
Note 1. Pulse Test
See characteristic curves of 2SK2529.
3
2SK2553
Power vs. Temperature Derating
Maximum Safe Operation Area
100
75
500
200
100
50
20
50
10
5
Operation in
this area is
limited by R
DS(on)
25
2
1
Ta = 25 °C
0.5
0
50
100
150
200
3
30
0.1 0.3
1
10
100
Drain to Source Voltage
V
(V)
Case Temperature Tc (°C)
DS
Normalized Transient Thermal Impedance vs. Pulse Width
3
1
Tc = 25°C
D = 1
0.5
0.3
0.1
θ
θ
γ
θ
ch – c(t) = s (t) • ch – c
ch – c = 1.67 °C/W, Tc = 25 °C
PW
T
P
DM
D =
0.03
0.01
PW
T
10 µ
100 µ
1 m
10 m
100 m
1
10
Pulse Width PW (S)
4
2SK2553
Avalanche Test Circuit
Avalanche Waveform
V
DSS
1
2
2
E
=
• L • I
•
AP
AR
V
– V
DD
DSS
L
V
DS
Monitor
I
AP
V
(BR)DSS
Monitor
I
AP
Rg
V
V
DD
D. U. T
DS
I
D
Vin
15 V
50Ω
V
DD
0
Switching Time Test Circuit
Waveform
Vout
Monitor
Vin Monitor
D.U.T.
90%
R
L
10%
10%
90%
Vin
Vout
V
DD
Vin
10 V
10%
50Ω
= 30 V
90%
td(off)
td(on)
t
f
tr
5
2SK2553
Package Dimensions
As of January, 2001
Unit: mm
4.44 ± 0.2
1.3 ± 0.15
10.2 ± 0.3
2.59 ± 0.2
1.2 ± 0.2
1.27 ± 0.2
+ 0.2
– 0.1
0.86
0.76 ± 0.1
2.54 ± 0.5
0.4 ± 0.1
2.54 ± 0.5
Hitachi Code
JEDEC
LDPAK (L)
—
EIAJ
—
Mass (reference value)
1.4 g
6
2SK2553
As of January, 2001
Unit: mm
4.44 ± 0.2
7.8
6.6
10.2 ± 0.3
1.3 ± 0.15
+ 0.2
– 0.1
0.1
2.2
1.27 ± 0.2
0.4 ± 0.1
+ 0.2
1.2 ± 0.2
2.54 ± 0.5
0.86
– 0.1
2.54 ± 0.5
Hitachi Code
JEDEC
LDPAK (S)-(1)
—
EIAJ
—
Mass (reference value)
1.3 g
7
2SK2553
As of January, 2001
Unit: mm
4.44 ± 0.2
7.8
6.6
10.2 ± 0.3
1.3 ± 0.2
+ 0.2
– 0.1
0.1
2.2
1.27 ± 0.2
0.4 ± 0.1
+ 0.2
1.2 ± 0.2
2.54 ± 0.5
0.86
– 0.1
2.54 ± 0.5
Hitachi Code
JEDEC
LDPAK (S)-(2)
—
EIAJ
—
Mass (reference value)
1.35 g
8
2SK2553
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
Asia
: http://semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
: http://sicapac.hitachi-asia.com
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive, Dornacher Straβe 3
Hitachi Europe GmbH
Electronic Components Group
Hitachi Asia Ltd.
Hitachi Tower
16 Collyer Quay #20-00,
Singapore 049318
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower,
San Jose,CA 95134
D-85622 Feldkirchen, Munich
World Finance Centre,
Tel: <1> (408) 433-1990 Germany
Fax: <1>(408) 433-0223 Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Tel : <65>-538-6533/538-8577
Fax : <65>-538-6933/538-3877
URL : http://www.hitachi.com.sg
Harbour City, Canton Road
Tsim Sha Tsui, Kowloon,
Hong Kong
Tel : <852>-(2)-735-9218
Fax : <852>-(2)-730-0281
URL : http://www.hitachi.com.hk
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Hitachi Asia Ltd.
(Taipei Branch Office)
4/F, No. 167, Tun Hwa North Road,
Hung-Kuo Building,
Taipei (105), Taiwan
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 585160
Tel : <886>-(2)-2718-3666
Fax : <886>-(2)-2718-8180
Telex : 23222 HAS-TP
URL : http://www.hitachi.com.tw
Copyright Hitachi, Ltd., 2000. All rights reserved. Printed in Japan.
Colophon 2.0
