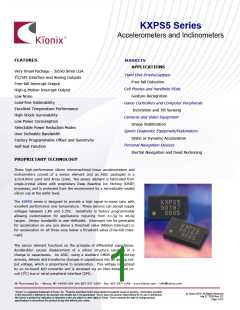

KXPS5 Series
Accelerometers and Inclinometers
FEATURES
MARKETS
APPLICATIONS
Very Small Package - 3x5x0.9mm LGA
I2C/SPI Interface and Analog Outputs
Free-fall Interrupt Output
Hard Disk Drives/Laptops
Free-fall Detection
Cell Phones and Handheld PDAs
Gesture Recognition
High-g Motion Interrupt Output
Low Noise
Lead-free Solderability
Game Controllers and Computer Peripherals
Inclination and Tilt Sensing
Cameras and Video Equipment
Excellent Temperature Performance
High Shock Survivability
Low Power Consumption
Image Stabilization
Selectable Power Reduction Modes
User Definable Bandwidth
Sports Diagnostic Equipment/Pedometers
Static or Dynamic Acceleration
Factory Programmable Offset and Sensitivity
Self-test Function
Personal Navigation Devices
Inertial Navigation and Dead Reckoning
PROPRIETARY TECHNOLOGY
These high-performance silicon micromachined linear accelerometers and
inclinometers consist of a sensor element and an ASIC packaged in a
3x5x0.9mm Land Grid Array (LGA). The sensor element is fabricated from
single-crystal silicon with proprietary Deep Reactive Ion Etching (DRIE)
processes, and is protected from the environment by a hermetically-sealed
silicon cap at the wafer level.
The KXPS5 series is designed to provide a high signal-to-noise ratio with
excellent performance over temperature. These sensors can accept supply
voltages between 1.8V and 5.25V. Sensitivity is factory programmable
allowing customization for applications requiring from ±1.5g to ±6.0g
ranges. Sensor bandwidth is user-definable. Interrupts can be generated
for acceleration on any axis above a threshold value (Motion Interrupt) or
for acceleration on all three axes below a threshold value (Free-fall Inter-
rupt).
The sensor element functions on the principle of differential capacitance.
Acceleration causes displacement of a silicon structure resulting in a
change in capacitance. An ASIC, using a standard CMOS manufacturing
process, detects and transforms changes in capacitance into an analog out-
put voltage, which is proportional to acceleration. This voltage is digitized
by an on-board A/D converter and is accessed via an inter-integrated cir-
cuit (I2C) bus or serial peripheral interface (SPI).
