STM-S3+-19.44MHZ

型号：

STM-S3+-19.44MHZ

描述：

周边IC\n[ Peripheral IC ]

品牌：

ETC[ ETC ]

页数：

12 页

PDF大小：

221 K

下载PDF手册

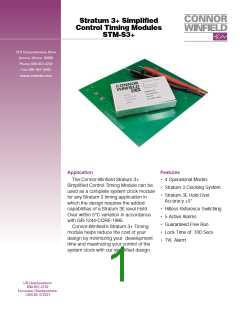

Stratum 3+ Simplified
Control Timing Modules
STM-S3+
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630-851-4722
Fax: 630- 851- 5040
www.conwin.com
Application
Features
The Connor-Winfield Stratum 3+
• 4 Operational Modes
Simplified Control Timing Module can be
used as a complete system clock module
for any Stratum 3 timing application in
which the design requires the added
capabilities of a Stratum 3E level Hold
Over within 5°C variation in accordance
with GR-1244-CORE-1995.
Connor-Winfield’s Stratum 3+ Timing
module helps reduce the cost of your
design by minimizing your development
time and maximizing your control of the
system clock with our simplified design.
• Stratum 3 Clocking System
• Stratum 3E Hold Over
Accuracy ±5°
• Hitless Reference Switching
• 5 Active Alarms
• Guaranteed Free Run
• Lock Time of 100 Secs
• TVL Alarm
US Headquarters:
630-851-4722
European Headquarters:
+353-62-472221
General Description
Functional Block Diagram
The Connor-Winfield Stratum 3+ Simplified Control
Timing Module (STM-3+) meets every Stratum 3
requirement of GR-1244-CORE-1995. In addition, it also
provides the enhanced Hold Over accuracy of Statum
3E specifications over 5° C range. Control loop filters
effectively attenuate any reference jitter and smooth out
phase transients.
Figure 1
Free Run
0
Ref 1
CNTL A
CNTL B
1
2
PLL TVL
Free Run
Ref 2
3
Hold Over
Hold Over
Alarm
Out
The STM-3+ is designed to be controlled externally.
Full external control input allows the user to select and
monitor any of the four possible operating modes:
• Free Run Mode (A=0, B=0 =>Free Run=1)
• Normal Mode #1 (A=1, B=0 => Ref 1=1)
• Normal Mode #2 (A=0, B=1 =>Ref 2=1)
• Hold Over Mode (A=1, B=1 =>Hold Over=1)
Table 4 illustrates the control signal inputs (A,B) and the
corresponding operational modes. Real-time indication
of the operational mode is indicated by unique
operating mode outputs on pins 1-4. In addition, all
outputs can be placed into a high impedence state
when a high signal is placed on the Tri-State control pin
Normal Mode #1 results in an output signal that is
phase locked to the External Reference Input #1.
Normal Mode #2 results in an output signal that is
phase locked to External Reference Input #2. Hold Over
mode results in an output signal at or near the
frequency as determined by a past historical value and
the holdover performance of the STM. The historical
value is updated every 40 secs. In the absence of
External Control Inputs, the STM enters the default Free
Run mode and signals an external alarm. Free Run
mode is a guaranteed 4.ꢀ ppm of the nominal
frequency.
PHASE
Ex Ref 1
Ex Ref 2
LOCK DETECT
2 :1
COMPARATOR
MUX
Sync_Out
Stratum 3+
OCXO
DAC
DAC
FIFO
FILTERS
TUNING
LIMIT
Stratum 3
TCXO
Clock_Out
MONITOR
PLL TVL
STM-S3+
Package Layout
Figure 2
.030
(.762mm)
.150
(3.810mm)
(2.08mm)
(1.02mm)
.082
.040
.120
(3.05mm)
“A-A”
DETAIL “A-A”
2.40 + 0.02
(60.96mm)
The STM-S3+ provides an alarm pin that goes high
during an alarm condition. Alarm signals are generated
at the Alarm Out pin during the following conditions:
• Holdover
.650 + 0.02
(16.50mm)
.192
(4.876mm)
2.000
(50.80mm)
.200
(5.08mm)
24
1
23
22
2
3
PIN 1
• Free Run
• Loss of Lock (LOL)
• Loss of Reference (LOR)
• Tune-Limit (PLL_TVL)
21
20
4
5
6
7
8
9
19
3.95+ 0.02
18
(100.330mm)
A Tune-Limit (PLL_TVL) alarm signal indicates that
the Voltage Controlled OCXO tuning voltage is
approaching within the 10% limit of its lock capability
and LOL may soon occur.
17
16
15
10
11
.300 TYP
(22)
(7.62mm)
14
.445
13
12
(11.30mm)
Bottom view
Tolerance
ꢀXXX + ꢀ005
Preliminary Data Sheet #: TM021
Page 2of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Absolute Maximum Rating
Table 1
STM-S3+
Symbol
VCC
Parameter
Minimum
-0.5
Nominal
Maximum
+7.0
Units
Volts
Notes
1.0
Power Supply Voltage (Vcc to GND)
Input Voltage
-
-
-
VIN
-0.5
+5.5
Volts
1.0
TSTG
Storage Temperature
-40.0
+90
deg. C
1.0
Recommended Operating Conditions
Table 2
STM-S3+
Symbol
VCC
Parameter
Minimum
4.75
Nominal
Maximum
5.25
Units
V
Notes
Power Supply Voltage (vcc to GND)
Power-on Reset Voltage Level
5.0
VPOR
VIH
4.25
4.5
V
2.0
High Level Input Voltage (TTL Compatible) 2.0
Low Level Input Voltage (TTL Compatible) 0.0
Input Signal Transition Time
5.25
V
VIL
0.8
V
TIN
250.0
15.0
nS
pF
CIN
Input Capacitance
VOH
High Level Output Voltage
@IOH=8.0 mA, Vcc minimum
2.4
V
3.0
VOL
Low Level Output Voltage
@IOH=8.0 mA, Vcc maximum
0.4
V
THL
TLH
TRIP
Clock out transition time high-to-low, no load
4.0
4.0
nS
nS
Clock out transition time low-to-high, no load
Input 8 kHz reference signal
positive pulse width
30.0
30.0
nS
TRIN
Input 8 kHz reference signal
Negative pulse width
nS
TAB
TOP
Mode Select Response
2
mS
Standard Opearting temperature
0.0
70.0
deg. C
Operating Specifications
Table 3
STM-S3+
Parameter
Specifications
Notes
Frequency Range
1ꢀ.384 MHz, 19.44 MHz, 38.88 MHz
Supply Current
350 mA Typical, 550 mA during warmup
GR-1244-CORE 3.2.1, R3-1
GR-1244-CORE 4.2-4.4
GR-1244-CORE 4.2-4.4
4.ꢀ ppm
Timing Reference Inputs
Jitter, Phase Transient and Wander Tolerances
Wander Genration
Free Run Accuracy
Holdover Stability
Initial Offset
(0° - 70°) 0.039 ppm
( 5°C) 0.012 ppm
4.0
0.001 ppm
0.035 ppm
0.003 ppm
0.001 ppm
0.010 ppm
0.001 ppm
Temperature
Drift
Holdover History
Pull-in / Hold-in Range
Lock Time
40 sec
4.ꢀ ppm
5.0
ꢀ.0
< 100 sec
0.001 ppm
Lock Accuracy
PLL-TVL Alarm Limits
Within 10% of Tuning Range Limit, See Fig 8
Preliminary Data Sheet #: TM021
Page 3of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Pin Assignment
Typical Application
Figure 3
Figure 4
+5VDC
Ex Ref 1
GND
Hold Over
Ref 1
5 Volt DC
Power
Supply
Ref 2
5 VDC
Hold Over
Ref 1
System
Control
and Data
Inputs
Network
Ex Ref 2
GND
Free Run
GND
Ex Ref 1
Timing
Reference
Input
Ref 2
GND
eg. BITS
Ex Ref 2
GND
Free Run
GND
N/C
N/C
Clock_Out
GND
N/C
N/C
N/C
Independent
Clock
Clock_Out
GND
N/C
Tri-State
N/C
Tri-State
N/C
N/C
N/C
Loss of
Reference
Monitor
System Clock
Alarm Out
Sync_Out
GND
Alarm Out
CNTL A
CNTL B
Sync_Out
GND
Section
CNTL A
CNTL B
PLL TVL
PLL TVL
BOTTOM VIEW
Operational Modes
Table 4
Control Input Pins
Output Indicator Pins
Operational Mode
Tri-State A
B
Ref 1
Ref 2 Hold Over Free Run
PLL_TVL
Alarm Out *Clock-Out
Sync Out
0
0
0
1
0
Free Run (default)
Normal
0
1
1
1
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
1
1
0
2
0
1
1
0
1
1
1
Per Spec
Per Spec
Per Spec
Per Spec
Per Spec
Per Spec
Per Spec
Per Spec
0
0
0
1
Mode #1
Tune Limit
LOR + LOL
Normal
0
1
0
0
0
0
1
0
0
Mode #2
Tune Limit
LOR + LOL
0
0
0
0
1
1
X
1
X
Hold Over Mode
Tri-State Mode
0
0 or 1
High Impedence
* See GR-1244-CORE, Issue 3 for Clock Out and Sync Out
Preliminary Data Sheet #: TM021
Page 4of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Pin Description
Table 5
Pin # Pin Name
Pin Information
1
Hold Over
Ref 1
Mode indicator. When the STM is in holdover mode, Hold Over will be a logic high output.
2
Mode indicator. When the STM is using External Reference #1, Ref 1 will be a logic high output.
3
Ref 2
Mode indicator. When the STM is using External Reference #2, Ref 2 will be a logic high output.
4
Free Run
GND
Mode indicator. When the STM is in free run mode, Free Run will be a logic high output.
5
Ground.
ꢀ
N/C
No connection required
No connection required
Tri-State control for all outputs. 1=Hi-Z, 0=normal.
No connection required
Alarm indicator output.
Mode control input.
Mode control input.
Tuning Voltage Alarm.
Ground.
7
N/C
8
Tri-State
N/C
9
10
11
12
13
14
15
1ꢀ
17
18
Alarm Out
CNTL A
CNTL B
PLL TVL
GND
Sync_Out
N/C
System clock output.
No connection required
Ground.
GND
Clock_Out An independent Stratum 3 clock output with the required 4.ꢀ ppm.
Can be used for general purpose clocking needs.
19
20
21
22
23
24
N/C
No connection required
Ground.
GND
Ex Ref 2
GND
External Reference #2 Input.
Ground.
Ex Ref 1
+5 V DC
External Reference #1 Input.
+5 Volt DC supply. (Vcc)
Preliminary Data Sheet #: TM021
Page 5of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Operational Mode Change Timing Diagram
Loss of Reference Timing Diagram
Figure 5
Figure ꢀ
Change in
Operational Mode
External
Reference
Input
Operational Mode
Indicator
Alarm
tm
tAon
tAoff
2 msec < tm < 4.125 msec
2 msec < tAon < 6.125 msec
0 msec < tAoff < 2.125 msec
TVL Alarm Timing Diagram
TVL Alarm Range
Figure 7
Figure 8
Frequency
(ppm)
TVL Limit High
Frequency
max = 14ppm
Sync_Out
(Nominal Frequency)
min
9ppm
TVL Limit Low
Frequency
TVL Alarm
&
Alarm Out
min = -9ppm
max -14ppm
t
0 < t < 2.125 msec
Voltage Controlled
OCXO Voltage (V)
0.5 V
3.8 V
*The DAC is updated only when the output changes level. The maximum
update rate is 8 kHz
Maximum Current Draw
Mounting Clearances
Figure 9
Figure 10
0.600
0.550
0.500
0.450
0.400
0.350
0.300
.020" MAX.
.020"
.030"
PIN LAND
0
1
2
3
4
5
6
7
8
ALL SOLDER AND/OR WIRE TAGS
SHALL NOT EXTEND MORE THAN .020"
BELOW PC BOARD BOTTOM SURFACE
Elapsed Time (min)
Preliminary Data Sheet #: TM021
Page 6of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Typical System Test Set-up
Figure 11
GPS or LORAN
Timing Source
This device supplies system time
information. It can be thought of as
supplying "absolute time" reference
information
S
a
mple
M
T
IE
D
ata for
S
T
M
-S 3/M ST
M
-S
3
1
0
0
1
.0
.0
.0
.0
E
E
E
E
-6
-9
-9
T
yp i c
a
l
r
e
s
p
o
n
2
s
e
-
3
0
8
0
0
s
e
c
o
n
d
t
e
s
t
-
J
it
t
e
r
a
p
p
li e
d
(
2
U
I
@
1
0
H
z
)
re
f
d
a
t
e
A
P
R
2 1 9 9
Possible Choices Include
Stanford Research Model: FS700
Truetime Model XXX
k d h
1
0
10
MHz
MTIE
1
1
1
1
2
2
2
44
44
44
-
-
-
5.2 Ma
5.2 Ma
5.6 Ma
s
s
s
k
(
(
A
B
)
k
k
)
G
R25 3 -5 .4 .4 .3 .2
-9
0
1
0
.0
E
-
3
1
.
0
E
+0
1
0
.
0
E
+0
1
0
0
.0
E
+0
1
.
0
E
r
+3
1
d
0 .0 E+3
O
bs e rva tion Tim e (s )
C
o
p
yrig
h
t
19
9
8
C
o
n
n
o
-
W
in fie ld
a
ll
r
ig
h
t
s
r
e
s
e
r
v
e
Target System Under Test
External
Reference
Input
Standards
Compliance
Documents
DS1 rate RZ (1.544 MHz), E1 rate RZ or 8 kHz
clock RZ with noise modulation
Arbitrary
Waveform
Generator
Clock or BITS logic level
clock input (TTL, CMOS,
etc.)
MTIE, TDEV, Wander Transfer,
and Wander Generation Plots
S
ample Wan de r G en e ration (T D E V) for S T M /M S T M -S3
1
0
0
1
.
.
.
.
0
E-
E-
E-
E-
-1
6
9
9
9
2
T
yp ic
a
t
l
r
e
s
p
o
n
2
s
e
-
3
0
8
0
0
s
e
c
o
n
d
te
s
t
-
J
it
t
e
r
a
p
p
lie
d
(
2
UI
@
1
0
H
z
)
r
e
f
d
a
e
A
P
R
2 1 9 9
k
d h
10
MHz
1
0
0
0
0
E
. . . . ...
1
TDEV
G
G
R1 24 4-Fig5 .1
R1 24 4-Fig5
-
3
Arbitrary
Waveform
Generator
[Noise
1
0
0
.0
1
0
.
0
E
-
3
1
0
0
.0
E
-
3
1
.0
E
+0
1
0
.
0
E
+0
1
0
0
o
.0
n
E
n
+0
1 .0 E+3
C
o
p
y
rig
h
t
1
9
9
8
C
o r-W in fie ld a lll rig h t s re s e rv e d
In te
g
r
a
tio n Tim e (s e c )
External
Reference
Input
Source]
Time-stamped ensemble
based on absolute time
reference (10MHz input)
10
MHz
DS1 rate [1.544 MHz] BITS Bipolar
Phase Error data output
DS-1, OC-3, OC-12 electrical or optical signals
External
Reference
Input
Tektronix
SJ300E
10
MHz
HP53310A
Modulation Analyzer / Time Interval Analyzer
Wander Analyzer data (IEEE-488)
External
Reference
Input
IEEE-488 Controller
Platform for software
HP 53305A Phase Analyzer
HP E1748A Sync
Measurement
Tektronix Wander Analyzer
Preliminary Data Sheet #: TM021
Page 7of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Typical MTIE - Over Temperature with Noise
Figure 12
MTIE (ns)
GR-1244-CORE Mask
100
10
1
0.01
0.1
1
10
100
1000
10000
1000
Observation Interval (sec)
Typical TDEV - Over Temperature with Noise
Figure 13
TDEV (ns)
GR-1244-CORE Mask
10
1
0.1
0.01
0.01
0.1
1
10
100
1000
10000
100000
Observation Time (sec)
Preliminary Data Sheet #: TM021
Page 8of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
1 µs Phase Transient
Figure 14
10000
1000
100
MTIE (ns)
GR-253-CORE Mask
10
1
0.01
0.1
1
10
100
1000
Observation time (sec)
Reference Switching Phase Transient
Figure 15
10000
MTIE (ns)
GR-253-CORE Mask
1000
100
10
1
0.01
0.1
1
10
Observation Time (sec)
100
1000
Preliminary Data Sheet #: TM021
Page 9of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Hold Over Entry and Exit with Same Reference
Figure 1
10000
1000
100
10
Entry
Exit
GR-253-CORE Mask
1
0.01
0.1
1
10
100
Observation Interval
Wander Transfer
Figure 17
1000
Wander Transfer
GR-253-CORE Mask
100
10
1
0.1
0.01
0.1
1
10
100
1000
10000
Observation Time (sec)
Preliminary Data Sheet #: TM021
Page 10 of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
NOTES:
1.0 Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are
stress ratings only, and functional operation of the device at these or any other conditions beyond those listed under
Recommended Operating Conditions is not implied. Exposure ot Absolute Maximum Ratings conditions for extended
periods of time may affect device reliability.
2.0 Power-on reset will be acivated within this level.
3.0 Nominal signal into a CMOS load is usually 3V or greater.
4.0 Hold Over stability is the cumulative fractional frequency offset containing Initial Offset, Temperature, and Drift
components as described by Bellcore GR-1244-CORE 5.2.
5.0 Pull-in range is the maximum frequency deviation on the reference inputs to the timing module that can be overcome to
pull itself into synchronization with the reference.
6.0 After 100 seconds at stable room temperature.
Ordering Information:
STM-S3+ – 16.384 MHz
STM-S3+ – 19.44 MHz
STM-S3+ – 38.88 MHz
REVISION REVISION DATE
NOTE
P00
P01
P02
P03
ꢀ/29/00
2/05/00
2/27/01
ꢀ/27/01
Preliminary informational release
Changed Format
Minor Corrections
Reformatted Layout
Preliminary Data Sheet #: TM021
Page 11 of 12
Rev: P03
Date: 06/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
Data Sheet #: TM021
Page 12 of 12
Rev: 02
Date: 02/27/01
© Copyright 2001 The Connor-Winfield Corp. All Rights Reserved Specifications subject to change without notice
厂商 型号 描述 页数 下载

STMICROELECTRONICS

 		STM 68 页

SIRENZA

 		STM-1116 800 - 1000 MHz的高线性度有源混频器发送[ 800 - 1000 MHz High Linearity Active Transmit Mixer ] 6 页

ETC

 		STM-16 16倍的光谱放大器，鉴性和多重触发[ 16 fold Spectroscopy Amplifier with Discriminators and Multiplicity Trigger ] 6 页

STANFORD

 		STM-2016 1800至2200年兆赫高线性度的硅锗主动发射混频器[ 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer ] 7 页

SIRENZA

 		STM-2116 1800年至2100年MHz的高线性度有源混频器发送[ 1800 - 2100 MHz High Linearity Active Transmit Mixer ] 6 页

ETC

 		STM-300C 清道夫收发模块STM 300和STM 300C[ Scavenger Transceiver Module STM 300 and STM 300C ] 2 页

SIRENZA

 		STM-3116 2100至2500年MHz的高线性度有源混频器发送[ 2100 - 2500 MHz High Linearity Active Transmit Mixer ] 6 页

CONNOR-WINFIELD

 		STM-S3 第3层简化的控制计时模块[ STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES ] 6 页

ETC

 		STM-S3+-16.384MHZ 周边IC\n[ Peripheral IC ] 12 页

ETC

 		STM-S3+-38.88MHZ 周边IC\n[ Peripheral IC ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201137s
