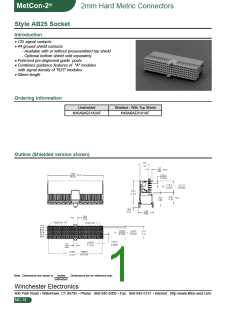

MetCon-2®
2mm Hard Metric Connectors
Style AB25 Socket
Introduction
• 125 signal contacts
• 44 ground shield contacts
- Available with or without preassembled top shield
- Optional bottom shield sold separately
• Polarized pre-alignment guide posts
• Combines guidance features of "A" modules
with signal density of "B25" modules
• 50mm length
Ordering Information
Unshielded
Shielded - With Top Shield
NX6ABAE01A1AF
NX6ABAE01A0AF
Outline (Shielded version shown)
Note: Dimensions are shown in
inches
.Dimensions are for reference only.
millimeters
Winchester Electronics
400 Park Road • Watertown, CT 06795 • Phone: 860-945-5000 • Fax: 860-945-5191 • Internet: http://www.litton-wed.com
MC-14
