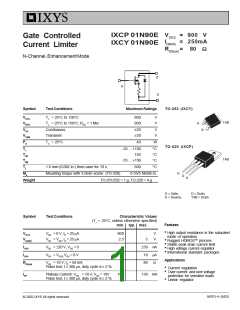

IXCY01N90E

型号:

IXCY01N90E

品牌:

IXYS[ IXYS CORPORATION ]

页数:

3 页

PDF大小:

112 K

VDSS = 900 V
ID(limit) = 250mA
IXCP 01N90E
IXCY 01N90E
Gate Controlled
Current Limiter
R
DS(on) = 80 Ω
N-Channel,EnhancementMode
D
G
S
Symbol
TestConditions
Maximum Ratings
TO-252 (IXCY)
TO-220 (IXCP)
VDSS
VDGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C; RGS = 1 MΩ
900
900
V
V
TAB
TAB
G
VGS
VGSM
Continuous
Transient
±20
±30
V
V
S
PD
TC = 25°C
40
W
TJ
TJM
Tstg
-55 ... +150
150
-55 ... +150
°C
°C
°C
TL
1.6 mm (0.062 in.) from case for 10 s
300
°C
G
D
S
Md
Mounting torque with 3.5mm screw (TO-220)
0.55/5 Nm/lb.in.
Weight
TO-251/252 = 1 g, TO-220 = 4 g
G = Gate,
D = Drain,
S = Source,
TAB = Drain
Symbol
TestConditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
Features
High output resistance in the saturated
VDSS
VGS(th)
VGS = 0 V, ID = 25 µA
VDS = VGS, ID = 25 µA
900
2.5
V
V
mRuogdgeeodf HoDpeMraOtiSoTnM process
Stable peak drain current limit
High voltage current regulator
International standard packages
5
IGSS
VGS = ±20 V, VDS = 0
±50 nA
10 µA
IDSS
VDS = VDSS; VGS = 0 V
Applications
RDS(on)
V
= 10 V, ID = 50 mA
80
PGuSlse test, t 300 µs, duty cycle d 2 %
Current regulation
Over current and over voltage
IDP
Plateau Current; V
= 10 V, VGS = 10V
100
130 mA
Pulse test, t 300 DµSs, duty cycle d 2 %
Lpirnoeteacrtiorengufolartsoernsitive loads
98701-A (8/02)
© 2002 IXYS All rights reserved
IXCP 01N90E
IXCY 01N90E
Symbol
gfs
TestConditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
TO-220 AB Dimensions
VDS = 20 V; ID = 100 mA, pulse test
40 mS
Ciss
Coss
Crss
133
24
6.6
pF
pF
pF
VGS = 0 V, VDS = 25 V, f = 1 MHz
td(on)
tr
td(off)
tf
15
137
11
ns
ns
ns
ns
VDS = 500 V, ID = 50 mA
VGS = 10 V, RG = 50 (External)
Pins: 1 - Gate
3 - Source
2 - Drain
131
4 - Drain
Bottom Side
Qg(on)
Qgs
Qgd
7.5
2.2
3.0
nC
nC
nC
VGS = 10 V, VDS = 500 V, ID = 50 mA
IA(P)/T Plateau Current Shift VDS= 10 V, VGS= 10 V
±
50
ppm/K
with Temperature
VAK/IA(p) Dynamic Resistance VDS = 20 V, VGS= 10 V 125
kΩ
VF
IF = 50mA
1.8
V
RthJC
RthCA
3.1 K/W
TO-220
80
100
K/W
K/W
TO-251/252
TO-252 AA Outline
Dim. Millimeter
Inches
Max.
Min.
Max.Min.
A
2.19 2.38 0.086 0.094
A1 0.89 1.14 0.035 0.045
A2
b
0
0.13
0
0.005
0.64 0.89 0.025 0.035
b1
b2
0.76 1.14 0.030 0.045
5.21 5.46 0.205 0.215
c
c1
0.46 0.58 0.018 0.023
0.46 0.58 0.018 0.023
D
5.97 6.22 0.235 0.245
D1 4.32 5.21 0.170 0.205
E
E1
6.35 6.73 0.250 0.265
4.32 5.21 0.170 0.205
e
e1
2.28 BSC
4.57 BSC
0.090BSC
0.180BSC
H
L
9.40 10.42 0.370 0.410
0.51 1.02 0.020 0.040
L1
L2
L3
0.64 1.02 0.025 0.040
0.89 1.27 0.035 0.050
2.54 2.92 0.100 0.115
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYSMOSFETs andIGBTsarecoveredbyoneormoreofthefollowingU.S.patents:
4,835,592
4,881,106
4,931,844
5,017,508
5,034,796
5,049,961
5,063,307
5,187,117
5,237,481
5,486,715 6,306,728B1
5,381,025
4,850,072
IXCP 01N90E
IXCY 01N90E
250
200
150
100
50
VGS = 15V
14V
100
10
1
13V
12V
11V
10V
9V
8V
7V
6V
5V
0
0
10
20
30
40
50
6
8
10
12
14
VDS - Volts
V
GS -Volts
Figure 1, Output Characteristics at 25ºC
Figure 2. Drain Current vs.Gate Voltage
500K
400K
300K
200K
100K
0K
180
160
140
120
100
80
TJ = 25oC
VDS = 20V
VGS = 12V
VDS = 20V
11V
10V
9V
0
20 40 60 80 100 120 140 160
ID - Milliamperes
-50
-25
0
25
50
75
100 125
oC
Temperature -
Figure 3. Dynamic Output Resistance RO vs. Drain
Current.
Figure 4. Drain Current vs, Temperature for a
constant gate-source voltage.
12
R(th)JA : 10 K/W
10
Figure 5. Allowable Power Dissipation for
various heat sinking conditions. Note that
the junction temperature can be derated
by increasing the ambient temperature a
like amount.
8
15
6
20
4
30
40
50
2
60
80
100
0
25
50
75
100
125
150
Ambient Temperature - oC
