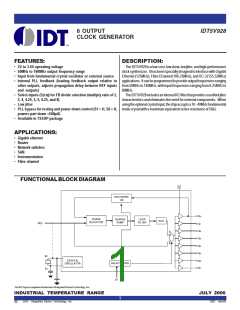

IDT5V928
8 OUTPUT
CLOCK GENERATOR
FEATURES:
DESCRIPTION:
• 3V to 3.6V operating voltage
The IDT5V928is a low-cost,lowskew,lowjitter,andhigh-performance
clocksynthesizer. Ithas beenspeciallydesignedtointerface withGigabit
Ethernet(125MHz),FibreCHannel(106.25MHz),andOC-3(155.52MHz)
• 50MHz to 160MHz output frequency range
• Input from fundamental crystal oscillator or external source
• Internal PLL feedback (loading feedback output relative to applications. Itcanbe programmedtoprovide outputfrequencies ranging
other outputs, adjusts propagation delay between REF inputs from50MHzto160MHz, withinputfrequencies rangingfrom6.25MHzto
and outputs)
80MHz.
TheIDT5V928includes aninternalRCfilterthatprovides excellentjitter
• Select inputs (S[1:0]) for FB divide selection (multiply ratio of 2,
3, 4, 4.25, 5, 6, 6.25, and 8)
• Low jitter
characteristics and eliminates the need for external components. When
usingtheoptionalcrystalinput,thechipaccepts a10-40MHzfundamental
• PLL bypass for testing and power-down control (S1 = H, S0 = H, mode crystalwitha maximumequivalentseries resistance of50Ω.
powers part down <500μA)
• Available in TSSOP package
APPLICATIONS:
• Gigabit ethernet
• Router
• Network switches
• SAN
• Instrumentation
• Fibre channel
FUNCTIONALBLOCKDIAGRAM
OE
VCO DIVIDE
1/N
Q0
PHASE
DETECTOR
CHARGE
PUMP
LOOP
FILTER
VCO
REF
Q1
Q2
Q3
Q4
Q5
0
1
X2
X1
CRYSTAL
OSCILLATOR
Q6
Q7
SELECT MODE
S1 S0
TheIDTlogoisaregisteredtrademarkofIntegratedDeviceTechnology,Inc.
INDUSTRIAL TEMPERATURE RANGE
JULY 2006
1
c
2007 Integrated Device Technology, Inc.
DSC 5854/8
IDT5V928
8OUTPUTCLOCKGENERATOR
INDUSTRIALTEMPERATURERANGE
ABSOLUTEMAXIMUMRATINGS(1)
PINCONFIGURATION
Symbol
Description
Max.
– 0.5 to +4.6
– 0.5 to +4.6
±50
Unit
V
VDD/VDDQ
SupplyVoltagetoGround
InputVoltage
S0
1
REF
X1
24
23
22
21
20
19
18
17
16
15
14
13
VI
IO
V
2
S1
OutputCurrent
mA
° C
° C
3
X2
OE
GND
VDDQ
Q7
TSTG
TJ
StorageTemperature
JunctionTemperature
– 65 to +150
150
4
VDD
VDDQ
Q0
5
NOTE:
6
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
7
Q1
Q6
8
GND
GND
GND
Q5
9
GND
Q2
10
11
12
Q4
PINDESCRIPTION
Q3
VDDQ
VDDQ
Pin Name Type
Description
S[1:0]
I
Three leveldivider/mode selectpins. FloattoMID.
OE
I
Outputenablebar. OE hasapull-down. OutputQ[1:7]tristated
TSSOP
TOP VIEW
when HIGH. Output Q0 remains running when in PLL mode
andtri-stateswheninTESTmode.
X1
I
Crystal oscillator input. Connect to GND if oscillator not
required.
CRYSTALSPECIFICATION
X2
I
I
Crystaloscillatoroutput. Leaveunconnectedforclockinput.
REF
Q[1:7]
Q0
Input clock. Connect to X2 if crystal oscillator is used.
OutputatN*REFfrequency
The crystal oscillators should be fundamental mode quartz crystals:
overtone crystals are notsuitable. Crystalfrequencyshouldbe specified
for parallel resonance with 50Ω maximum equivalent series resonance.
CrystaltuningcapacitorsshouldbeconnectedfromX2/REFtoGNDandfrom
X1 to GND.
O
O
OutputatN*REFinternallyconnectedforPLLfeedback
Powersupplyforthedeviceoutputs. ConnecttoVDDonPCB.
VDDQ
VDD
PWR
PWR
Powersupplyforthedevicecoreandinputs. ConnecttoVDD
on PCB.
GND
PWR Groundsupply
DIVIDESELECTIONTABLE(1)
S1
S0
Divide-by-N Value
Mode
PLL
L
L
2
3
L
M
H
L
PLL
L
4
PLL
M
M
M
H
H
H
4.25
5
PLL
M
H
L
PLL
6
PLL
6.25
8
PLL
M
H
PLL
TEST
TEST(2)
NOTES:
1. H = HIGH
M = MEDIUM
L = LOW
2. Test mode for low frequency testing. In this mode, REF clock bypasses the VCO (VCO powered down) and the crystal oscillator is powered down.
2
IDT5V928
8OUTPUTCLOCKGENERATOR
INDUSTRIALTEMPERATURERANGE
COMMONOUTPUTFREQUENCYEXAMPLES(MHz)
Output
50
25
LL
60
64
72
75
80
10
90
15
100
20
Input
10
16
12
25
FB Divide Selection S[1:0]
MH
LH
MH
LM
HM
MH
MM
Output
106.25
17
106.25
25
120
15
125
20
125
25
125
62.5
LL
150
25
155.52
19.44
HM
Input
FB Divide Selection S[1:0]
HL
ML
HM
HL
MM
MH
OPERATINGCONDITIONS
Symbol
VDD/VDDQ
TA
Parameter
Min.
Typ.
3.3
25
Max.
Unit
V
Power Supply Voltage
OperatingTemperature
OutputLoadCapacitance
3
3.6
+85
15
- 40
—
—
° C
pF
CL
—
5
CIN
Input Capacitance, OE, F = 1MHz, VIN = 0V, TA = 25°C
7
pF
DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGE
FollowingConditionsApplyUnlessOtherwiseSpecified:
Industrial: TA = –40°C to +85°C, VDD/VDDQ = 3.3V ±0.3V
Symbol
Parameter
Test Conditions
Min.
Typ.
—
—
—
—
—
—
—
—
—
—
—
—
Max
Unit
VIL
InputLOWVoltage
—
2
0.8
—
V
V
VIH
Input HIGH Voltage
VIHH
VIMM
VILL
IIN
Input HIGH Voltage
3-levelinputonly
VDD - 0.6
VDD/2 - 0.3
—
—
V
InputMIDVoltage
3-levelinputonly
VDD/2 + 0.3
0.6
V
InputLOWVoltage
3-levelinputonly
V
InputLeakageCurrent(REFinputonly)
VIN = VDD or GND,VDD = Max.
-5
+5
μA
VIN = VDD
HIGH Level
—
+200
+50
I3
3-Level Input DC Current, S[1:0]
VIN = VDD/2
VIN = GND
VIN = VDD
MID Level
LOW Level
- 50
μA
-200
—
—
IIH
Input HIGH Current
OutputLOWVoltage
OutputHIGHVoltage
100
μA
V
VOL
VOH
IOL = 12mA
IOH = -12mA
—
0.4
2.4
—
V
3
IDT5V928
8OUTPUTCLOCKGENERATOR
INDUSTRIALTEMPERATURERANGE
POWERSUPPLYCHARACTERISTICS
Symbol
Parameter
Test Conditions (1)
VDD = Max.
Min.
Typ.
Max
Unit
IDD_PD
Power Down Current
—
—
500
μA
S[1:0] = HH
OE = L; REF = L; X1 = L
Alloutputsunloaded
VDD = Max., VIN = 3V
VDD = 3.6V
ΔIDD
SupplyCurrentperInput
Dynamic Supply Current
—
—
—
—
30
μA
IDD
130
mA
S[1:0] = LL
OE = L
FOUT = 150MHz
Alloutputsunloaded
NOTE:
1. For conditions shown as Min. or Max., use the appropriate values specified under DC Electrical Characteristics.
ACELECTRICALCHARACTERISTICSOVEROPERATINGRANGE
Symbol
tR,tF
Parameter
Test Conditions
Min.
—
Typ.
0.7
50
Max.
1.5
Unit
ns
RiseTime,FallTime
Output/Duty Cycle
0.8V to 2V
dT
VT = VDDQ/2
45
55
%
fOUT ≥ 100MHz, all N
-200
-200
-350
—
—
—
—
—
—
—
200
200
350
200
155
160
(1)
tPD
REF to Q0
VT = VDDQ/2
50 < fOUT < 160MHz, N ≤ 4
ps
50 < fOUT < 160MHz, N ≥ 4.25
tSK
tJ
OutputtoOutputSkew(Q0 toQ1:7)
Cycle - Cycle Jitter
Equalloads
ps
ps
fOUT ≥ 100MHz
-155
50
fOUT
OutputFrequency
MHz
NOTE:
1. When using a clock input.
INPUTTIMINGREQUIREMENTS
Symbol
tR,tF
tPWC
DH
Description(1)
Min.
—
Max.
10
Unit
(2)
Maximuminputrise andfalltime, 0.8Vto2V
ns/V
ns
(2)
Input clock pulse, HIGH or LOW
2
—
Inputdutycycle(2)
10
90
%
fOSC
XTALoscillatorfrequency
—
40
MHz
MHz
(2)
fIN
Inputfrequency
50/N
160/N
NOTES:
1. Where pulse width implied by DH is less than the tPWC limit, tPWC limit applies,
2. When using a clock input.
4
IDT5V928
8OUTPUTCLOCKGENERATOR
INDUSTRIALTEMPERATURERANGE
AC TEST LOADS AND WAVEFORMS
VDD
150Ω
150Ω
OUTPUT
15pF
AC Test Load
3V
2V
VTH = VDD/2
0.8
0V
1ns
1ns
Input Test Waveform
VDDQ
2V
VTH = VDDQ/2
0.8
0V
tR
tF
Output Waveform
5
IDT5V928
8OUTPUTCLOCKGENERATOR
INDUSTRIALTEMPERATURERANGE
ORDERINGINFORMATION
X
IDT
XXXX
Device Type
X
Package
Proceed
I
Industrial Temperature Range (- 40° C to + 85° C)
PG
PGG
Thin Shrink Small Outline Package
TSSOP - Green
Communications Clock Multiplier
5V928
CORPORATE HEADQUARTERS
6024 Silver Creek Valley Road
San Jose, CA 95138
for SALES:
800-345-7015 or 408-284-8200
fax: 408-284-2775
www.idt.com
for Tech Support:
clockhelp@idt.com
6
