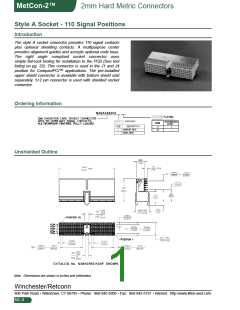

MetCon-2™
2mm Hard Metric Connectors
Style A Socket - 110 Signal Positions
Introduction
The style A socket connector provides 110 signal contacts
plus optional shielding contacts. A multipurpose center
provides alignment guides and accepts optional code keys.
The right angle compliant socket connector uses
simple flat-rock tooling for installation to the PCB (See tool
listing on pg. 32). This connector is used in the J1 and J4
position for CompactPCI™ applications. The pre-installed
upper shield connector is available with bottom shield sold
separately. 5+2 pin connector is used with shielded socket
connector.
Ordering Information
Unshielded Outline
Note: Dimensions are shown in inches and millimeters
Winchester/Retconn
400 Park Road • Watertown, CT 06795 • Phone: 860-945-5000 • Fax: 860-945-5191 • Internet: http://www.litton-wed.com
MC-8
