IWFM12L9504/S35A

型号:

IWFM12L9504/S35A

品牌:

IVO[ BAUMER IVO GMBH & CO. KG ]

页数:

1 页

PDF大小:

55 K

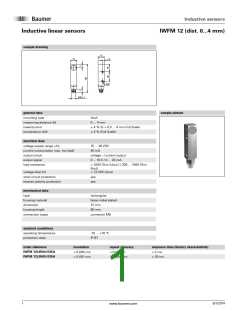

Inductive sensors
Inductive linear sensors
IWFM 12 (dist. 0...4 mm)
sample drawing
12
12
3,5
M4
M8 x 1
general data
sample picture
mounting type
flush
0 ... 4 mm
measuring distance Sd
linearity error
4 % (S = 0,5 ... 4 mm Full Scale)
4 % (Full Scale)
temperature drift
electrical data
voltage supply range +Vs
current consumption max. (no load)
output circuit
15 ... 30 VDC
40 mA
voltage - / current output
0 ... 10 V / 4 ... 20 mA
output signal
load resistance
> 1000 Ohm (Uout ) / 330 ... 1000 Ohm
(Iout)
voltage drop Vd
< 7,2 VDC (Iout)
short circuit protection
reverse polarity protection
yes
yes
mechanical data
type
rectangular
brass nickel plated
12 mm
housing material
dimension
housing length
connection types
60 mm
connector M8
ambient conditions
operating temperature
protection class
-10 ... +70 °C
IP 67
order reference
resolution
< 0,005 mm
< 0,001 mm
repeat accuracy
< 0,01 mm
response time (factory characteristic)
IWFM 12L9504/S35A
IWFM 12L9505/S35A
< 2 ms
< 0,005 mm
< 30 ms
1
8/1/2014
www.baumer.com
