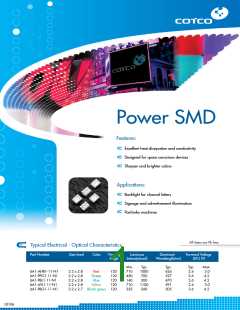

Power SMD
Features:
Excellent heat dissipation and conductivity
Designed for space conscious devices
Sharper and brighter colors
Applications:
Backlight for channel letters
Signage and advertisement illumination
Pachinko machines
All items are Pb free
Typical Electrical - Optical Characteristics:
Part Number
Size (mm)
Color
Viewing
Angle
Luminous
Intensity(mcd)
Dominant
Wavelength(nm)
Forward Voltage
(DC) (V)
Min.
710
450
140
710
355
Typ.
1000
700
200
1100
560
Typ.
624
527
470
591
505
Typ.
2.4
3.6
3.6
2.4
3.6
Max.
3.0
4.2
4.2
3.0
4.2
LM1-AHR1-11-N1
LM1-PPG1-11-N1
LM1-PBL1-11-N1
LM1-AYL1-11-N1
LM1-PBG1-11-N1
3.2 x 2.8
3.2 x 2.8
3.2 x 2.8
3.2 x 2.8
Red
Green
Blue
120
120
120
120
Yellow
3.2 x 2.7 Bluish green 120
L0106
